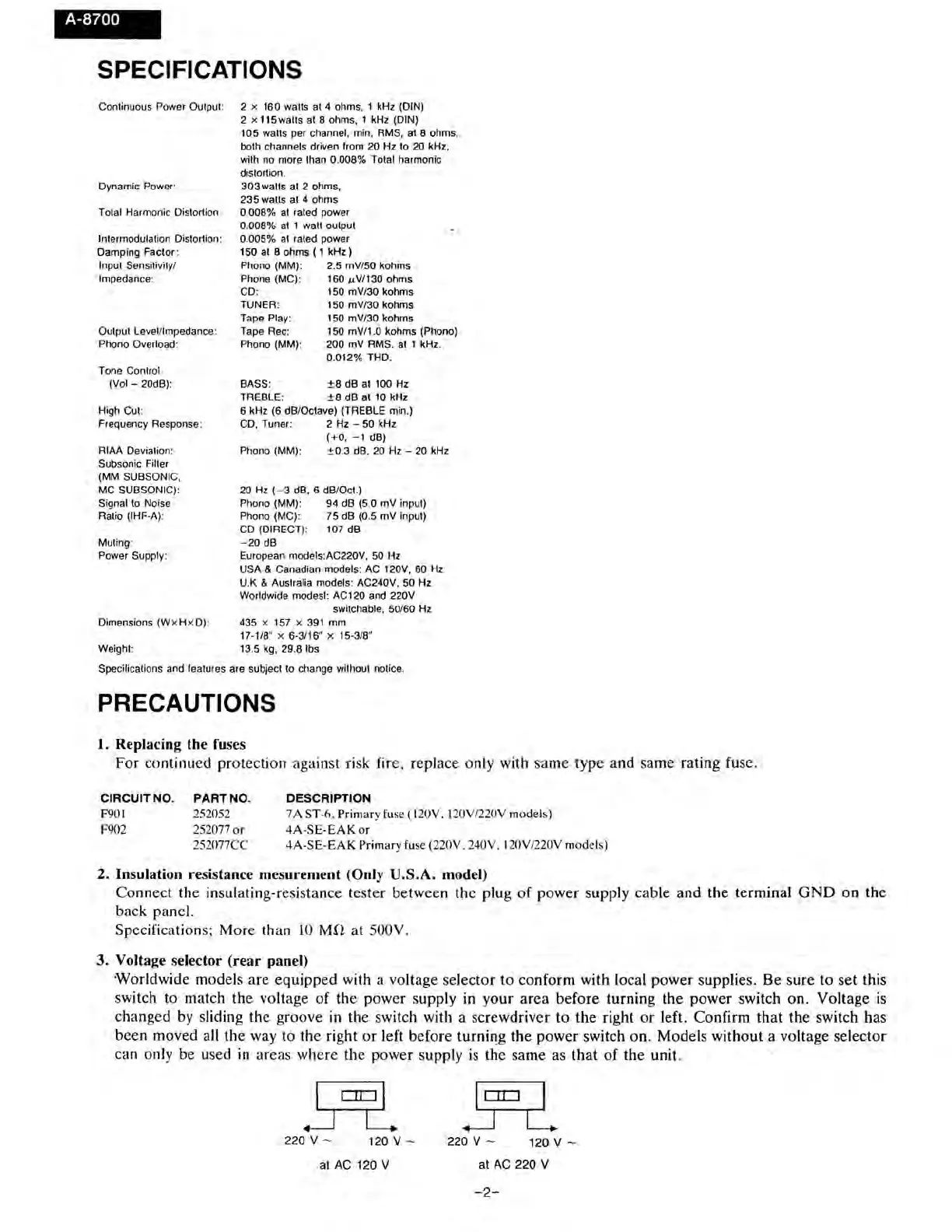

A-8700
SPECIFICATIONS
Conlinuous Power Outpul: 2 x 160 walls al 4 ohms, 1 kHz (DIN)
2 x
115walls
al B ohms, 1 kHz (DIN)
Dynamic Power:
Tolal Harmonic Dislortion
Intermodulation Distortion:
Damping
Factor :
Input Sen silivily/
Impedance:
Oulpul Level/Impedance:
Phono Overload:
Tone Conlrol
(Val
- 20dB):
High Cut:
Frequency Response:
RIAA Deviation:
Subsonic Filler
(MM SUBSONIC,
MC SUBSONIC):
Signal
to
Noise
Ralio (IHF-A
):
Muling:
Power Supply:
Dimensions (W x Hx D):
Weight:
105
walls per channel, min, RMS, at B ohms,
both channels driven
from 20 Hz
lo
20 kHz,
wilh no mo
re
than 0.008% Total harmonic
distortion.
303walls
al 2 ohms,
235
walls at 4 ohms
0.008% al rated power
0.
008%
al 1 wall oulpul
0.005% at rated power
150
at
B ohms ( 1 kHz )
Phono (MM): 2.5 mV/50 kohms
Phone (MC): 160
µV/130
ohms
CD: 150 mV/30 kohms
TUNER: 150 mV/30 kohms
Tape Play: 150 mV/30 kohms
Tape Ree: 150
mV/1.0 kohms (Phono)
Phono (MM): 200
mV
RMS. at 1 kHz.
0.012% THD.
BASS:
TREBLE:
±B
dB at 100 Hz
±B
dB at 10 kHz
6 kHz (6
dB
/Octave) (TREBLE min.)
CD, Tuner: 2 Hz
-
50
kHz
(+0
, - 1 dB)
Phono (MM):
±0
.3 dB, 20 Hz - 20 kHz
20 Hz (- 3 dB, 6 dB/Ocl.)
Phono
(MM): 94 dB (5.0
mV
input)
Phono (MC):
75
dB (0.5
mV
input)
CD (DIREC
T)
: 107 dB
-20
dB
European models:AC220V, 50 Hz
USA
& Canadian models: AC 120V, 60 Hz
U.K
& Auslralia models: AC240V, 50 Hz
Worldwide modesl: AC120 and
220V
switchable, 50/60 Hz
435 x 157 x
391
mm
17-1/B" x 6-3/16" x 15-3/B"
13.5 kg, 29.B lbs
Specifications and features are subject
to
change without notice.
PRECAUTIONS
J.
Replacing the fuses
For
continued protection against
ri
sk fire, replace only with same type and same rating fuse.
CIRCUIT NO.
F901
F902
PART NO.
252052
252077 or
252077CC
DESCRIPTION
7A ST-6, Prima
ry
fuse (120V. 120V/
22
0V models)
4A-SE
-
EAK
or
4A-SE-EAK
Primary fuse (220V. 240V. 120V/220V models)
2. Insulation resistance mesurement (Only U.S.A. model)
Connect the insulating-resistance tester between the plug of power supply cable and the terminal
GND
on
the
back panel.
Specifications; More than 10
MH at
SOOY
.
3. Voltage selector (rear panel)
·Worldwide models
are
equipped
with a voltage selector to conform with local power supplies.
Be
sure to set this
switch to match the voltage
of
the power supply in your
area
before turning the
power
switch
on
. Voltage
is
changed by sliding the groove in the switch with a screwdriver to the right
or
left. Confirm
that
the switch has
been moved all the way to the right
or
left before turni~g
the
power
switch
on.
Models without a voltage selector
can only be used
in
areas where the
power
supply
is
the same as
that
of
the unit.
220 V -
120 V -
at AC 120 V
220
V -
120 V -
at AC 220 V
-2-
