Onkyo A-R700 User Manual

_A-R700

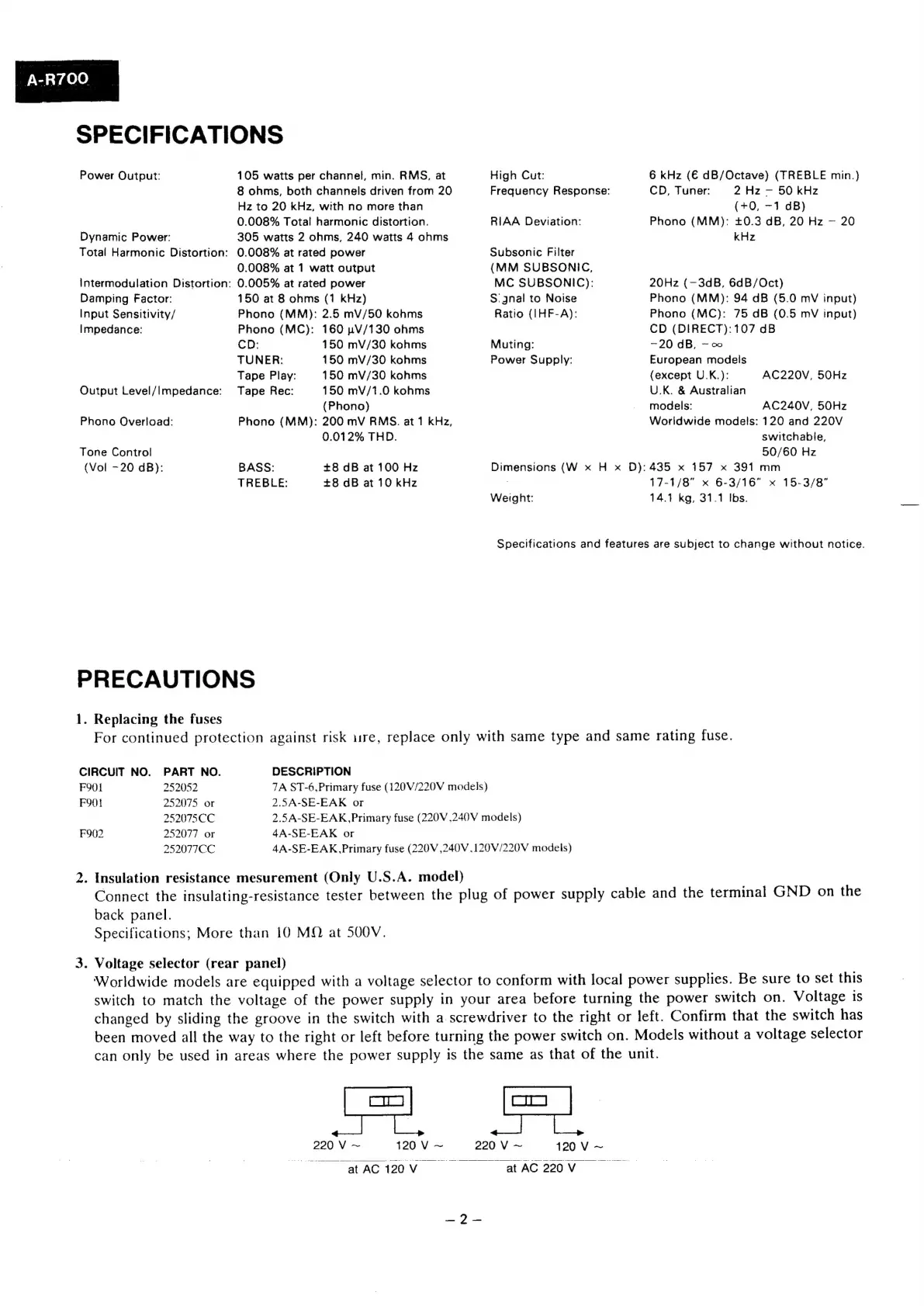

SPECIFICATIONS
Power Output: 105 watts per channel, min. RMS, at High Cut: 6 kHz (€ dB/Octave) (TREBLE min.)
8 ohms, both channels driven from 20 Frequency Response: CD, Tuner: 2 Hz — 50 kHz
Hz to 20 kHz, with no more than (+0, -1 dB)
0.008% Total harmonic distortion. RIAA Deviation: Phono (MM): £0.3 dB, 20 Hz — 20
Dynamic Power: 305 watts 2 ohms, 240 watts 4 ohms kHz
Total Harmonic Distortion: 0.008% at rated power Subsonic Filter
0.008% at 1 watt output (MM SUBSONIC,
Intermodulation Distortion: 0.005% at rated power MC SUBSONIC): 20Hz (-—3dB, 6dB/Oct)
Damping Factor: 150 at 8 ohms (1 kHz) S:jnal to Noise Phono (MM): 94 dB (5.0 mV input)
Input Sensitivity/ Phono (MM): 2.5 mV/50 kohms Ratio (IHF-A): Phono (MC): 75 dB (0.5 mV input)
Impedance: Phono (MC): 160 pV/130 ohms CD (DIRECT):107 dB
CD: 150 mV/30 kohms Muting: -20 dB, — oo
TUNER: 150 mV/30 kohms Power Supply: European models
Tape Play: 150 mV/30 kohms (except U.K.): AC220V, 50Hz
Output Level/Impedance: Tape Rec: 150 mV/1.0 kohms U.K. & Australian
(Phono) - models: AC240V, 50Hz
Phono Overload: Phono (MM): 200 mV RMS. at 1 kHz, Worldwide models: 120 and 220V
0.012% THD. switchable,
Tone Control! 50/60 Hz
(Vol -20 dB): BASS: +8 dB at 100 Hz Dimensions (W x H x D): 435 x 157 x 391 mm
TREBLE: +8 dB at 10 kHz 17-1/8" x 6-3/16" x 15-3/8”"
Weight: 14.1 kg, 31.1 Ibs.
Specifications and features are subject to change without notice.
PRECAUTIONS
1. Replacing the fuses
For continued protection against risk ire, replace only with same type and same rating fuse.
CIRCUIT NO. PART NO. DESCRIPTION
F901 252052 7A ST-6,Primary fuse (120V/220V models)
FOO! 252075 or 2.5A-SE-EAK or
252075CC 2.5A-SE-EAK ,Primary fuse (220V,240V models)
F902 252077 or 4A-SE-EAK or
252077CC 4A-SE-EAK,Primary fuse (220V,240V .120V/220V modeis)
2. Insulation resistance mesurement (Only U.S.A. model)
Connect
the
insulating-resistance
tester
between
the
plug
of
power
supply
cable
and
the
terminal
GND
on
the
back panel.
Specifications; More than 10 MQ) at 500V.
3. Voltage selector (rear panel)
Worldwide
models
are
equipped
with
a
voltage
selector
to
conform
with
local
power
supplies.
Be
sure
to
set
this
switch
to
match
the
voltage
of
the
power
supply
in
your
area
before
turning
the
power
switch
on.
Voltage
is
changed
by
sliding
the
groove
in
the
switch
with
a
screwdriver
to
the
right
or
left.
Confirm
that
the
switch
has
been
moved
all
the
way
to
the
right
or
left
before
turning
the
power
switch
on.
Models
without
a
voltage
selector
can only be used in areas where the power supply is the same as that of the unit.
220 V ~ 120V~ 220V~ 120V~
— atAC 12000 ~atAC 220V 02
