Onkyo C-S5VL Service Manual

C-S5VL
IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION

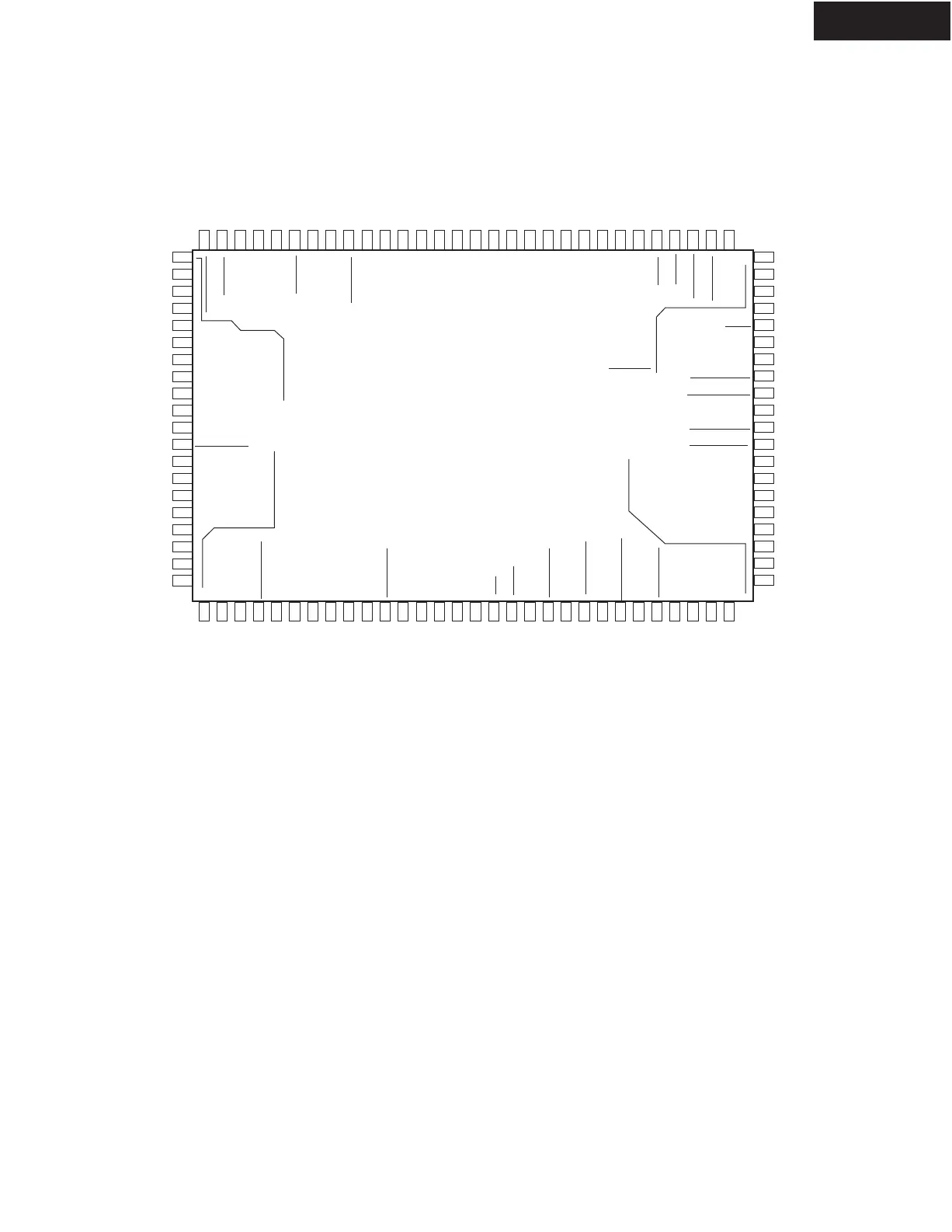

PIN ASSIGNMENT
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
NC
NC
NC
NC
NC
NC
NC
NC
NC(UP)
NC(UP)
NC(UP)
KEYINT0
MUTEPOW
HPLG_IN
KEY1
AVSS
KEY0
VREF
AVCC
SUB_IN
SUB_OUT SUB_CLK SUB_REQ SUB_RST NC NC CECIN BYTE CNVSS NC DVDRST RESET XOUT
VSS XIN VCC1 NMI(UP) POFF DVDRXSTB RDSCLK NC LEDSTBY NC NETREST CEC_CONT 232STBY CECTRG
CECOUNT NETTX NETRX
NC
232RX/FRXD
232TX/FTXD
FCE
DISC_SEN
POS_SEN
LD_CURR
LOADSW3
FEPM
LOADSW2
LOADSW1
NC
DVDTXSTB
DVDRXD
DVDTXD
F_BUSY
E2PROM_SCL
E2PROM_SDA
NC
AMUTE
HPLGOUT
VDOFF
SEL_FWUP
RS232_SEL
UPDATE_SEL
REMIN
IRIN
SYSIN
SYAOUT
BAND
INT1 INT2
DVD_REG
CHG_ADJ
INT3 INT4
VSS
DVD_FWUP_MODE
VCC2
FLOFF
NC NC
ROTHI
LOADHI
PWRCTR
ROTR
ROTL
LOAD_L
LOAD_R
VD_PWR
Q1701
M3062LFGPFP
Q1701: M3062LFGPFP SYSTEM MICON-1

Onkyo C-S5VL Specifications

General

Frequency range	4 - 50000 Hz
Audio formats supported	MP3, WMA
Total Harmonic Distortion (THD)	0.0025 %
Built-in speaker(s)	No
CD-RW playback	Yes
Device type	HiFi CD player
Product color	Silver
Disc loading type	Tray
Number of optical discs	1 discs
Volume control	Rotary
Headphone outputs	1
Power consumption (typical)	16 W
Package depth	448 mm
Package width	562 mm
Package height	212 mm
Package weight	7000 g

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	80 mm
Weight	4500 g
