Onkyo C-S5VL Service Manual

C-S5VL

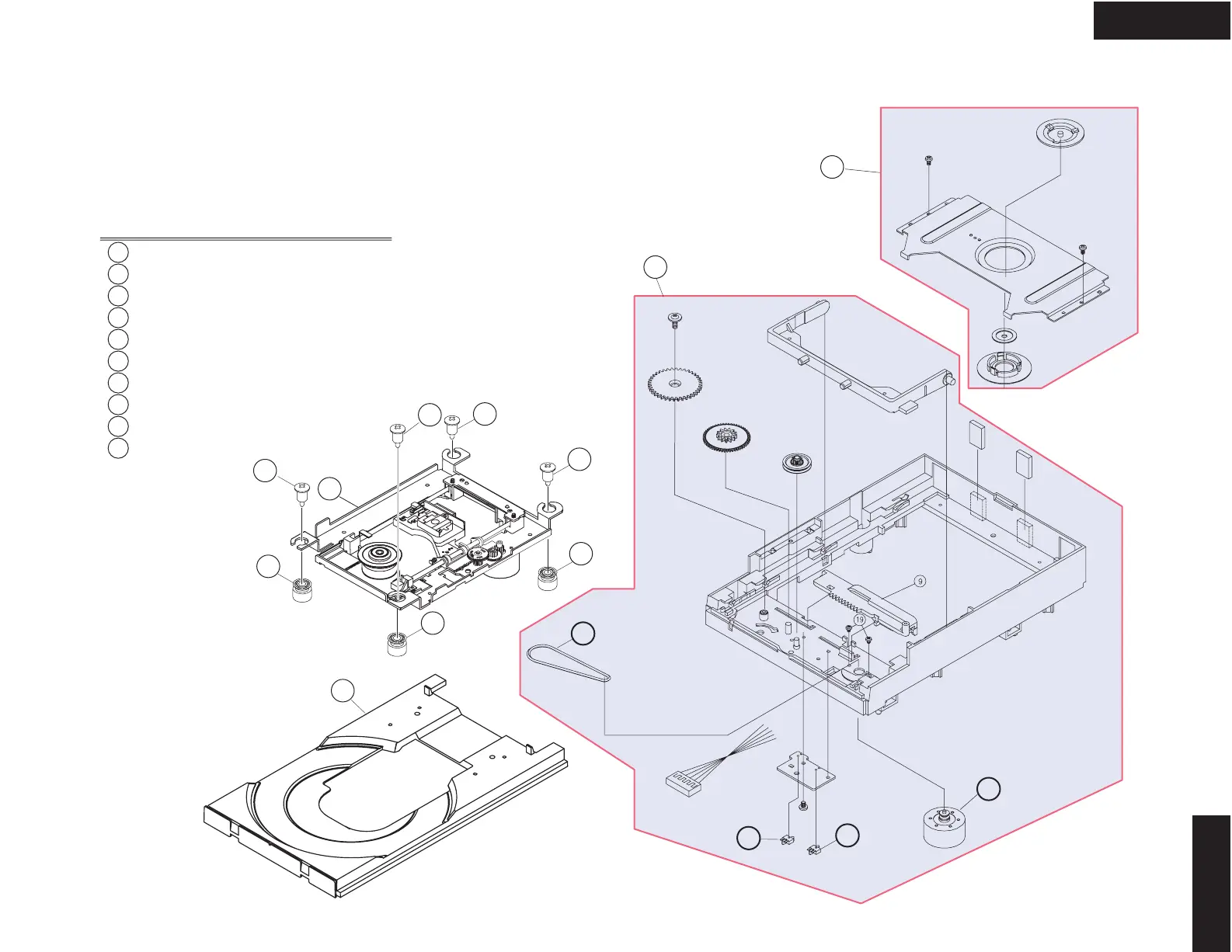

EXPLODED VIEW
DVD MECHANISM PN: 24801038 (TD-505SF-4)
24801038 (TD-505SF-4) =
Traverse Mecha. assy + Guide Clamper assy + Loader assy
C-S5VL
PARTS LIST
1
2
2
2
3
3
3
3
4
6
7
8
9
10
5
NO.
1
2
3
4
5
6
7
8
9
10
PART NAME
Traverse Mecha. assy
Damper-IDLE
Screw Dumper
Guide Clamp assy
Loader assy
Assy Motor Load
Belt Load
Switch ESE22MH21
Switch ESE22MH23
Tray-ONK
PART NO.
C9A024
C2G083
C1H011
C9A013
C9A032
C9A023
B9G015
S01W204
S01W205
C9G024

Onkyo C-S5VL Specifications

General

Frequency range	4 - 50000 Hz
Audio formats supported	MP3, WMA
Total Harmonic Distortion (THD)	0.0025 %
Built-in speaker(s)	No
CD-RW playback	Yes
Device type	HiFi CD player
Product color	Silver
Disc loading type	Tray
Number of optical discs	1 discs
Volume control	Rotary
Headphone outputs	1
Power consumption (typical)	16 W
Package depth	448 mm
Package width	562 mm
Package height	212 mm
Package weight	7000 g

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	80 mm
Weight	4500 g
