23
Connecting the DV-SP503E—Continued

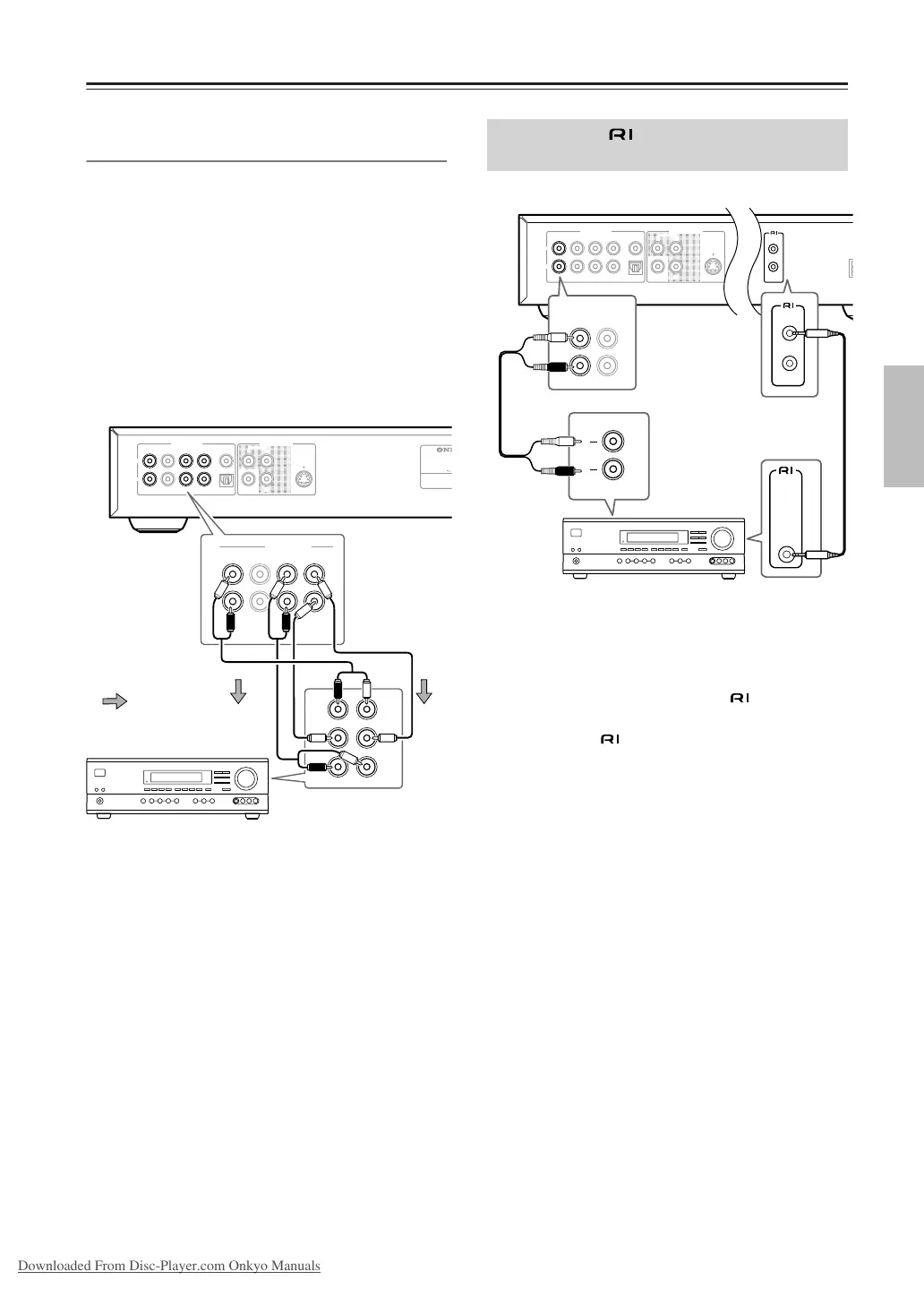

Connecting the Multichannel Analog
Outputs
If your AV receiver has 5.1 channel analog inputs, we
recommend connecting this player to it using the multi-
channel analog outputs. Doing this will ensure that you
can enjoy all kinds of disc, including Dolby Digital and
DTS DVD-Video discs, as well as high sampling rate
and multichannel DVD-Audio and SACD discs.
1. Connect the FRONT/D.MIX, SURR, CENTER,
SUBWOOFER outputs on this player to the
multi-channel audio inputs on your AV receiver.
It’s convenient to use three stereo audio cables; one
for the FRONT/D.MIX 1 or 2, one for the SURR and
one for the CENTER and SUBWOOFER channels.
You can use the SCART AV connector, or the S
video or component video jacks to connect to the AV
receiver if you prefer.
Tip:
• After connecting up and switching on, you should
change the Audio Output Mode setting in the Initial
Setup menu from the default 2 Channel to 5.1 Chan-
nel. See also Audio Output Mode on page 48, 52.
• The remote controller supplied with Onkyo AV
receiver or amplifiers can be used to control the DV-
SP503E.
• The function of the upper and lower connectors are
the same. Connect to either one.
• Connecting an cable only does not make the sys-
tem operational. You must also connect the audio
cables as well.
• For remote control operation, you must make an ana-
log RCA connection between your DV-SP503E and
the other AV component, even if they are connected
digitally.
SUPER AUDIO
VIDEO
MODEL NO.
RATING
:
AC 120V
VIDEO
S VIDEO
R
L
SURR CENTER
1 2
FRONT/D. MIX
AUDIO OUTPUT
DIGITAL
SUB
WOOFER
OPTICAL
COAXIAL
PB
Y
P
R
COMPONENT
VIDEO
OUTPUT
SURR CENTER
1 2
FRONT/D. MIX
AUDIO OUTPUT
SUB
WOOFER
R
L
FRONT
SUB
SURR
CENTER
AV receiver
Signal flow
Connecting -compatible
Components
REMOTE
CONTROL
VIDEO
S VIDEO
R
L
SURR CENTER
1 2
FRONT/D. MIX
AUDIO OUTPUT
DIGITAL
SUB
WOOFER
OPTICAL
COAXIAL
PB
Y
P
R
COMPONENT
VIDEO
OUTPUT
REMOTE
CONTROL
REMOTE
CONTROL
L
R
IN
VIDEO 2
1 2
FRONT/D. MIX
AV receiver
Downloaded From Disc-Player.com Onkyo Manuals
