When digital input (optical or coaxial) is selected, this
receiver can only play back Dolby Digital, PCM (32 kHz to
96 kHz) and DTS (including DTS 96 kHz/24 bit) digital
signal formats. The compatible signals via the HDMI
terminals are: Dolby Digital, DTS, SACD (DSD 2 ch only),
PCM (32 kHz to 192 kHz sampling frequencies), Dolby
TrueHD, Dolby Digital Plus, DTS-EXPRESS, DTS-HD
Master Audio and DVD Audio (including 192 kHz). With
other digital signal formats, set to A (analog).
•
You may get digital noise when a LD or CD player
compatible with DTS is playing an analog signal. To
prevent noise, make the proper digital connections
(page 11
) and set the signal input to C1/O1 (digital).
•
Some DVD players don’t output DTS signals. For more
details, refer to the instruction manual supplied with your
DVD player.
a. The HDMI terminals can be used for the TV input by
turning ON the ARC function in the HDMI setting
(page 31
).
b. In order to listen to the audio from the TV that is
connected to this receiver using a analog audio cables,
set-up for analog audio input is required (see The Input
Assign menu on page 30).
Input
function
Input Terminals
HDMI COAXIAL OPTICAL ANALOG
BD/DVD
99 9 9
TV
8
a
99
8
b
CBL/SAT
99 9 9
CD
89 9 9
STRM
BOX
98 8 8
GAME
98 8 8
•

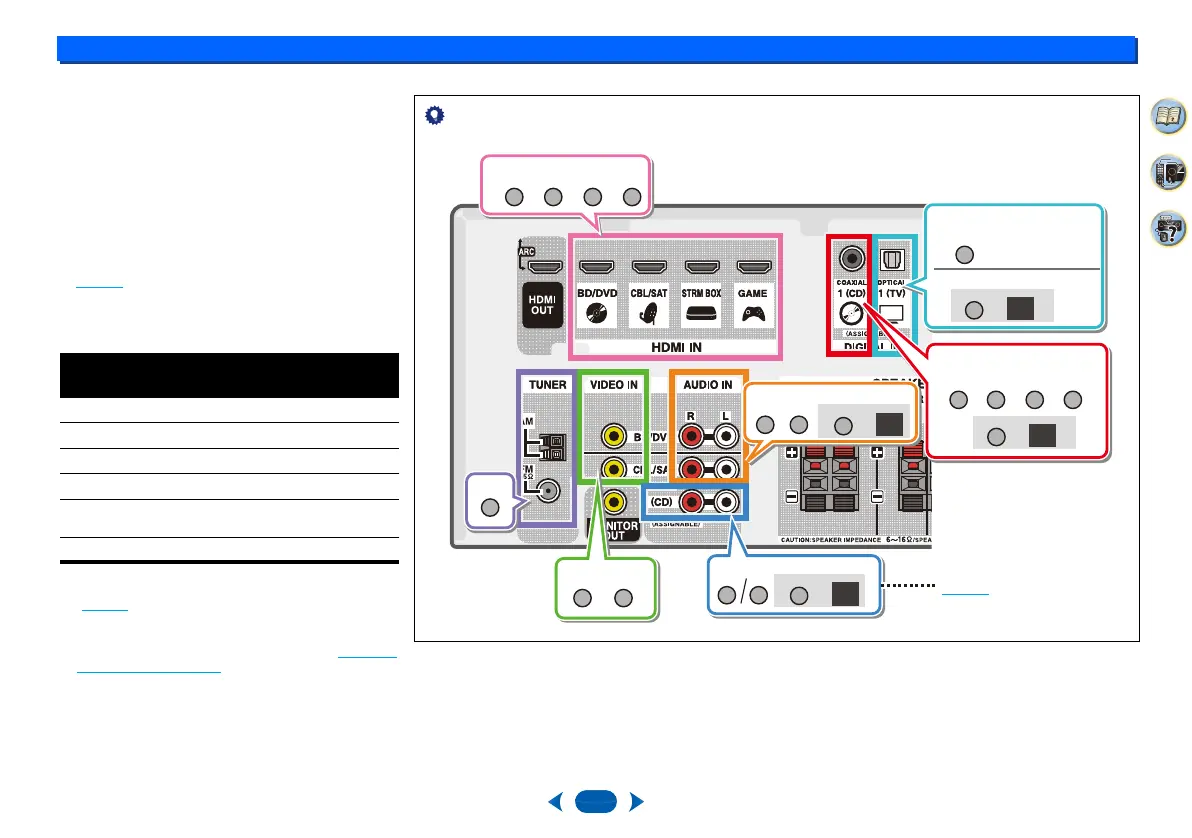

In order to enjoy the picture and/or sound from devices connected to each terminal, select the input by doing the following.
CD
TUNER
GAME
C1
AUDIO SEL
TV
TV
1.
O1
2.
AUDIO SEL
A
AUDIO SEL
A
AUDIO SEL
CD TV
CBL/SAT
STRM BOX
BD/DVD
CBL/SATBD/DVD
CBL/SATBD/DVD
CBL/SATBD/DVD
Audio
Audio
Audio
Audio
Video/Audio (HDMI)
Video
Other than TV input
(TV input)
(CD) audio input terminal is
assigned to CD under factory
settings. If you want to
change this to TV input,
please change the settings in
the Input Assign menu
(page 30
).
To Next Page
