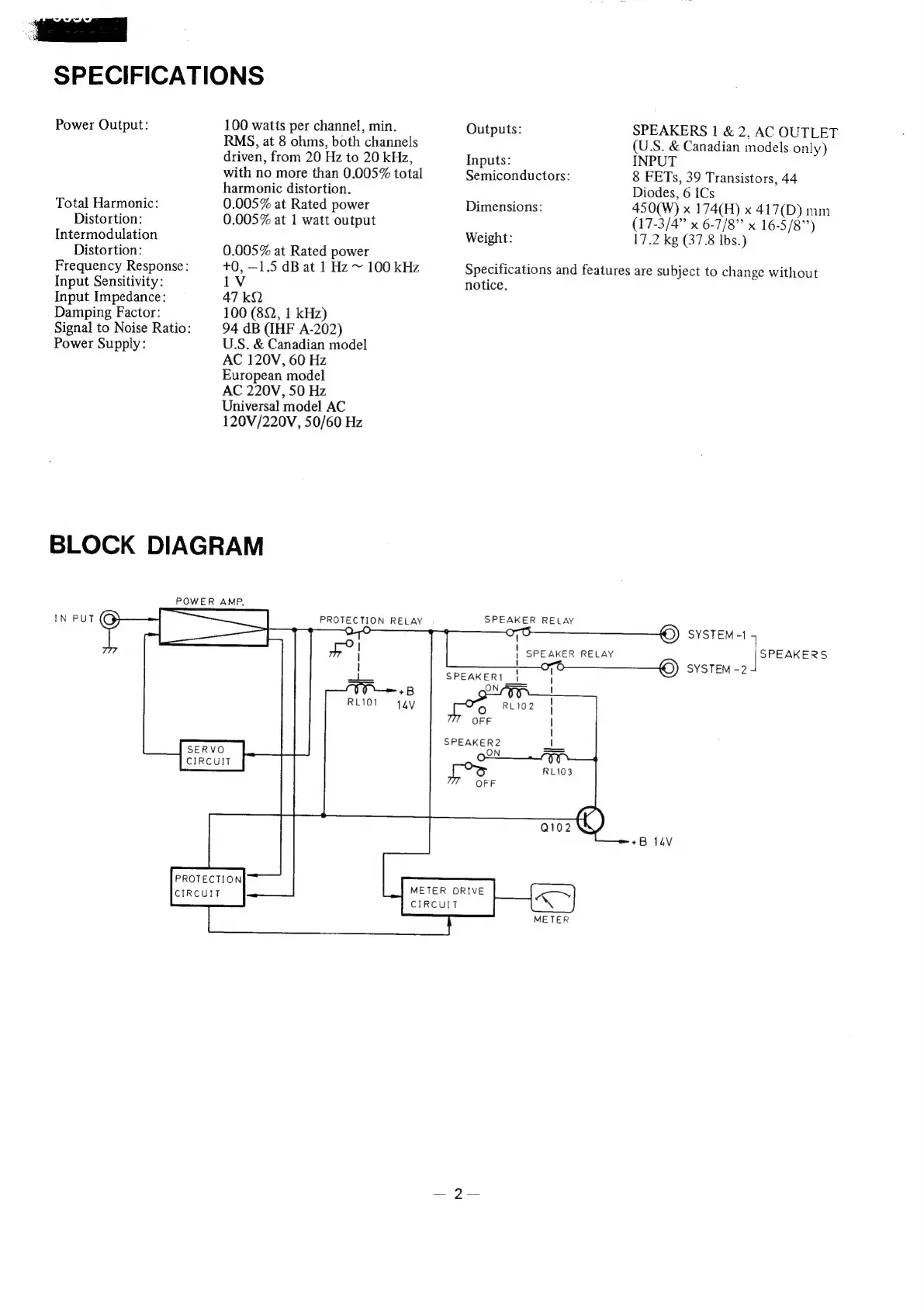

Onkyo M-5030 Service Manual

SPECIFICATIONS
Power Output:
Total Harmonic:
Distortion:
Intermodulation
Distortion:
Frequency Response:
Input Sensitivity:
Input Impedance:
Damping Factor:
Signal to Noise Ratio:
Power Supply:
100 watts per channel, min.
RMS, at 8 ohms, both channels
driven, from 20 Hz to 20 kHz,
with no more than 0.005% total
harmonic distortion.
0.005% at Rated power
0.005% at 1 watt output
0.005% at Rated power
+0, —1.5 dB at 1 Hz ~ 100 kHz
1V
47 kQ
100 (8Q, 1 kHz)
94 dB (IHF A-202)
U.S. & Canadian model
AC 120V, 60 Hz
European model
AC 220V, 50 Hz
Universal model AC
120V/220V, 50/60 Hz
BLOCK DIAGRAM
Outputs:
Inputs:
Semiconductors:
Dimensions:
Weight:
SPEAKERS
1
&
2,
AC
OUTLET
(U.S.
&
Canadian
models
only)
INPUT
8 FETs, 39 Transistors, 44
Diodes, 6 ICs
450(W) x 174(H) x 417(D) mm
(17-3/4” x 6-7/8” x 16-5/8”)
17.2 kg (37.8 lbs.)
Specifications
and
features
are
subject
to
change
without
notice.
POWER AMP,
==
SPEAKER RELAY
IN PUT@®
PROTECTION RELAY
0.0
(©)
SYSTEM-1
|sreaxers
©) SYSTEM -2
R101
SERVO
CIRCUIT
+B 14V
PROTECTION
CIRCUIT

Onkyo M-5030 Specifications
