Onkyo PTS-707 User Manual

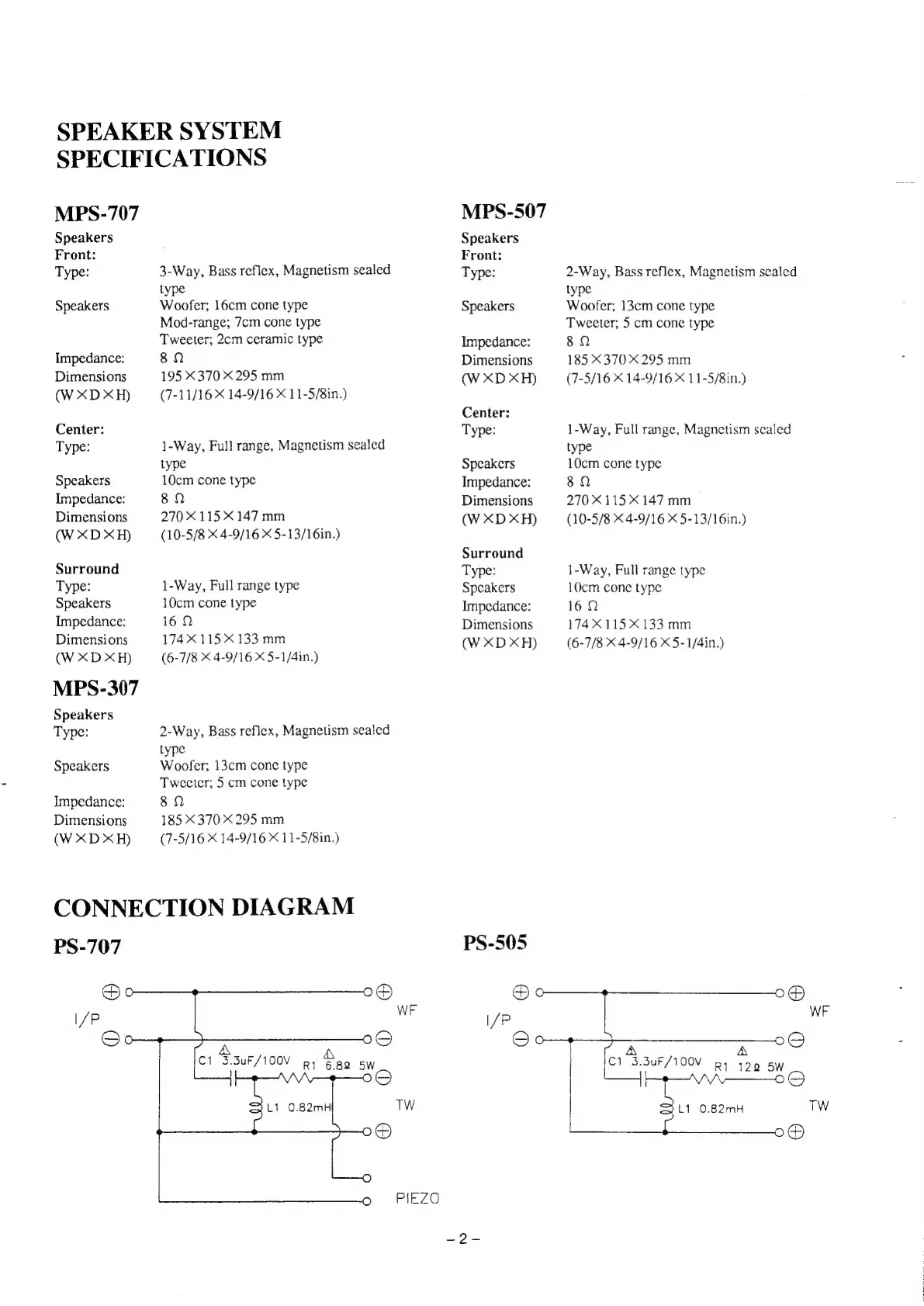

SPEAKER SYSTEM
SPECIFICATIONS
MPS-707
Speakers
Front:
Type: 3-Way, Bass reflex, Magnetism sealed
type
Speakers Woofer; 16cm cone type
Mod-range; 7cm cone type
Tweeter; 2cm ceramic type
Impedance: 8
Dimensions 195 X 370 X 295 mm
(W XD XH) (7-11/16 X 14-9/16 X 11-5/8in.)
Center:
Type: 1-Way, Full range, Magnetism sealed
type
Speakers 10cm cone type
Impedance: 82
Dimensions 270 X 115X147 mm
(W XD XH) (10-5/8 X 4-9/16 X 5-13/16in.)
Surround
Type: 1-Way, Full range type
Speakers 10cm cone type
Impedance: 16 9
Dimensions 174X115 133 mm
(W XD XH) (6-7/8 X 4-9/16 X5-1/4in.)
MPS-307
Speakers
Type: 2-Way, Bass reflex, Magnetism sealed
type
Speakers Woofer; 13cm cone type
Twectcr; 5 cm cone type
Impedance: 82
Dimensions 185X370 X 295 mm
(W XD XH) (7-5/16 X 14-9/16 X 11-5/8in.)
CONNECTION DIAGRAM
PS-707
PIEZO
MPS-507
Speakers
Front:
Type:
Speakers
Impedance:
Dimensions
(W XD XH)
Center:
Type:
Speakers
Impedance:
Dimensions
(W XD XH)
Surround
Type:
Speakers
Impedance:
Dimensions
(W XD XH)
2-Way, Bass reflex, Magnetism scaled
type
Woofer; 13cm cone type
Tweeter; 5 cm cone type
80
185 X370 X 295 mm
(7-5/16 X 14-9/16 X 11-5/8in.)
1-Way, Full range, Magnetism sealed
type
10cm cone type
82
270 X 115 * 147 mm
(10-5/8 X 4-9/16 X 5-13/16in.)
1-Way, Full range type
10cm cone type
16
174X115 X133 mm
(6-7/8 X 4-9/16 X5-1/4in.)
@ ©
a
WF
‘>
A
A
©
C1
3.3uF/100V
py
199
5w
=4
Oo
L1
0.82mH
TW
@
