Onkyo TX-7920 User Manual

TX-7900/TX-7920

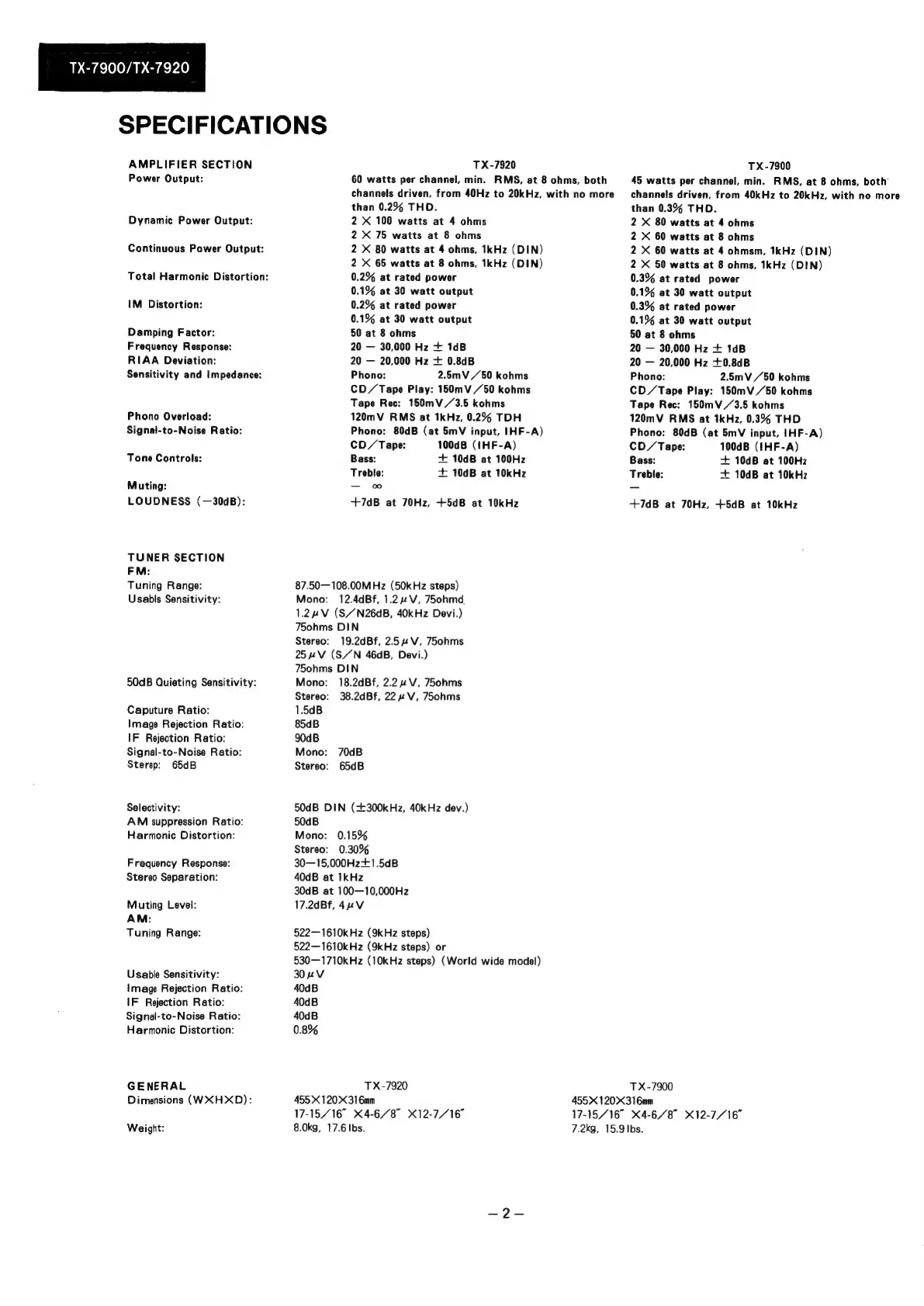

SPECIFICATIONS
AMPLIFIER SECTION
Power Output:
Dynamic Power Output:
Continuous Power Output:
Total Harmonic Distortion:
1M Distortion:
Damping Factor:
Frequency Response:
RIAA Deviation:
Sensitivity and Impedance:
Phono Overload:
Signal-to-Noise Ratio:
Tone Controls:
Muting:
LOUDNESS (—30dB):
TUNER SECTION
FM:
Tuning Range:
TX-7920
60 watts per channel, min. RMS, at 8 ohms, both
channels driven, from 40Hz to 20kHz, with no more
than 0.2% THD.
2 X 100 watts at 4 ohms
2 X 75 watts at 8 ohms
2 X 80 watts at 4 ohms, 1kHz (DIN)
2 X 65 watts at 8 ohms, 1kHz (DIN)
0.2% at rated power
0.1% at 30 watt output
0.2% at rated power
0.1% at 30 watt output
50 at 8 ohms
20 — 30,000 Hz + 1dB
20 — 20,000 Hz + 0.8dB
Phono: 2.5mV 750 kohms
CD/Tape Play: 150mV_//50 kohms
Tape Rec: 150mV//3.5 kohms
120mV RMS at 1kHz, 0.2% TDH
Phono: 80dB (at 5mV input, IHF-A)
CD /Tape: 100dB (1HF-A)
Bass: + 10dB at 100Hz
Treble: + 10dB at 10kHz
— ©
+7dB at 70Hz, +5dB at 10kHz
87.50—108.00MHz (50kHz steps)
TX-7900
45 watts per channel, min. RMS, at 8 ohms, both’
channels driven, from 40kHz to 20kHz, with no more
than 0.3% THD.
2 X 80 watts at 4 ohms
2 X 60 watts at 8 ohms
2 X 60 watts at 4 ohmsm, 1kHz (DIN)
2 X 50 watts at 8 ohms, 1kHz (DIN)
0.3% at rated power
0.1% at 30 watt output
0.3% at rated power
0.1% at 30 watt output
50 at 8 ohms
20 — 30,000 Hz + 1dB
20 — 20,000 Hz +0.8dB
Phono: 2.5mV 7/50 kohms
CD/Tape Play: 150mV/50 kohms
Tape Rec: 150mV//3.5 kohms
120mV RMS at 1kHz, 0.3% THD
Phono: 80dB (at 5mV input, |HF-A)
CD/Tape: 100dB (IHF-A)
Bass: + 10dB at 100Hz
Treble: + 10dB at 10kHz
+7dB at 70Hz, +5dB at 10kHz
Mono: 12.4dBf, 1.2“V, 750hmd.
1.2”V (S/N26dB, 40kHz Devi.)
750hms DIN
Stereo: 19.2dBf, 25"V, 750hms
25“ (S/N 46dB, Devi.)
750hms DIN
Mono: 18.2dBf, 2.2“V, 750hms
Stereo: 38.2dBf, 22“V, 75ohms
Usabls Sensitivity:
50dB Quieting Sensitivity:
Caputure Ratio: 1.5dB
Image Rejection Ratio: 85dB
IF Rejection Ratio: 90dB
Signal-to-Noise Ratio: Mono: 70dB
Sterep: 65dB Stereo: 65dB
Selectivity: 50dB DIN (+300kHz, 40kHz dev.)
AM suppression Ratio: 50dB
Harmonic Distortion: Mono: 0.15%
Stereo: 0.30%
30—15,000H2+1.5dB
40dB at 1kHz
30dB at 100—10,000Hz
17.2dBf, 44¢V
Frequency Response:
Stereo Separation:
Muting Level:
AM:
Tuning Range: 522—1610kHz (9kHz steps)
522—1610kHz (9kHz steps) or
530—1710kHz (10kHz steps) (World wide model)
Usable Sensitivity: 30nV
image Rejection Ratio: 40dB
{IF Rejection Ratio: 40dB
Signal-to-Noise Ratio: 40dB
Harmonic Distortion: 0.8%
GENERAL TX-7920 TX-7900
Dimensions (WXHXD): 455 120X316mm 455X120X316mm
17-15/16" X4-6/8" 12-716" 17-15/16" X4-6,8" X12-7//16"
Weight: 8.0kg, 17.6 Ibs. 7.2kg, 15.9 lbs.

Onkyo TX-7920 Specifications

General

Brand	Onkyo
Model	TX-7920
Category	Amplifier
Language	English
