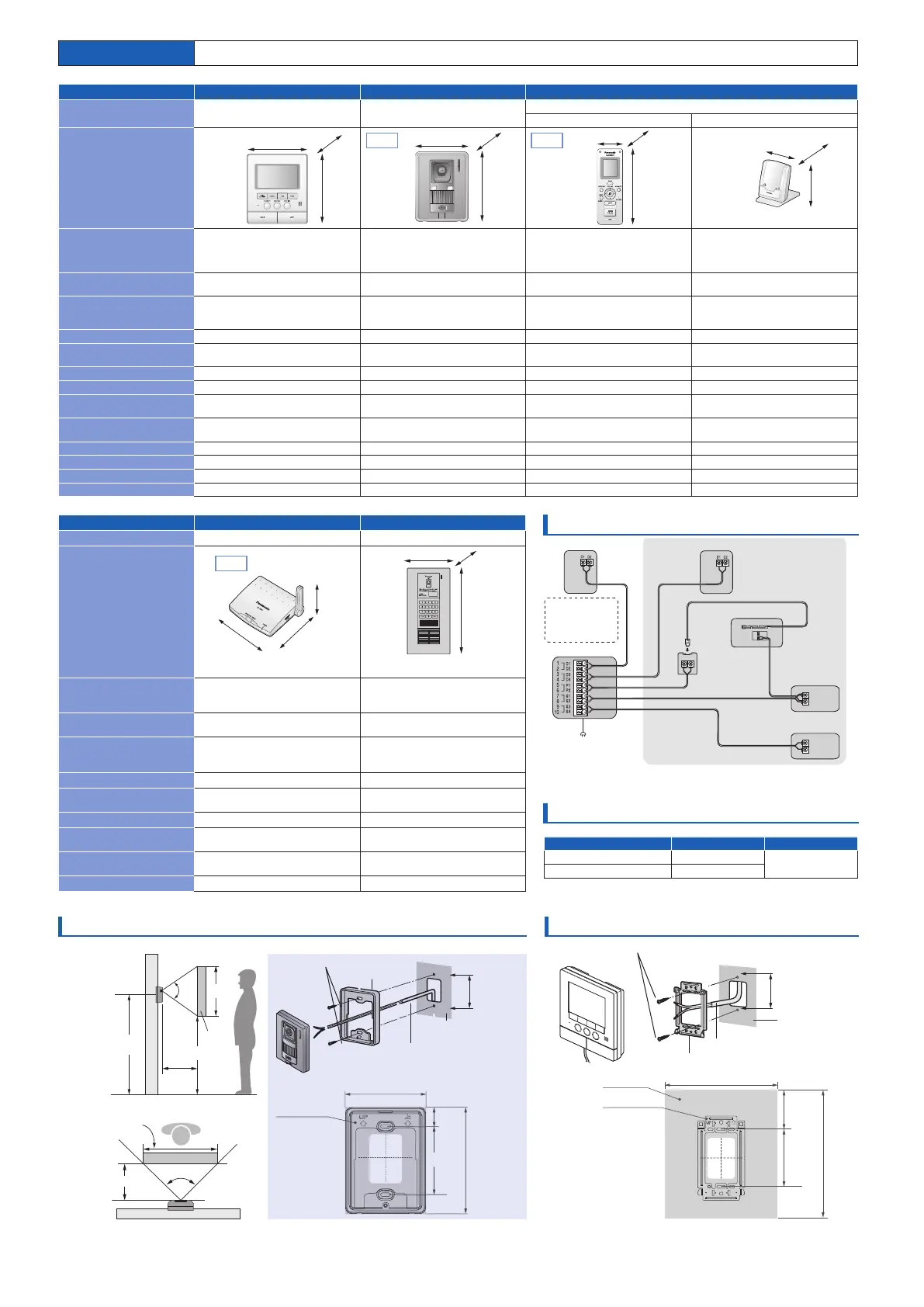

Specications
Model Composition
Wiring schematic diagram
Wire type and length
Installing the Doorphone
Installing the Main Monitor
VL-MW251BX/CX/AZ VL-V522L VL-W605BX/CX/AZ
Model number and name Main Monitor Station (Main monitor) Door Station (Doorphone)
Wireless Monitor (Sub monitor station)
Main body Charger
Dimensions
165
190
38
99
131
36.5
52
157
35
115
76
90
Power supply 100 – 240 V AC, 50/60 Hz Supplied by the Main Monitor Station Ni-MH battery (3.6 V DC / 650 mAh)
AC adaptor
VL-W605BX: PQLV219BX (100-240 V AC, 50/60 Hz)
VL-W605CX: PQLV219E (220-240 V AC, 50/60Hz)
VL-W605AZ: PQLV219AZ (220-240 V AC, 50/60 Hz)
Power consumption
Standby: Approx. 0.04 A
During operation: Approx. 0.28 A
- - -
Dimensions (H x W x D)
(Excluding protruding sections)
Approx. 190 x 165 x 38 mm Approx. 131 x 99 x 36.5 mm Approx. 157 x 52 x 35 mm
Approx. 115 x 76 x 90 mm
Approx. 105 x 76 x 48 mm
(using without the stand)
Weight Approx. 785 g Approx. 200 g Approx. 175 g (including the battery) Approx. 115 g (including the stand)
Operating environment
0 °C to 40 °C, Up to 90 % RH
(Relative Humidity) non condensing
-10 °C to 50 °C, Up to 90 % RH
(Relative Humidity) non condensing
0 °C to 40 °C, Up to 90 % RH
(Relative Humidity) non condensing
0 °C to 40 °C, Up to 90 % RH
(Relative Humidity) non condensing
Display Approx. 5-inch, wide colour display - 1.8˝ colour LCD monitor -
Frequency 2.402 GHz – 2.481 GHz - 2.402 GHz – 2.481 GHz -
Viewing angle -
Horizontally: Aprrox. 87˚
Vertically: Approx. 66˚
- -
Installation method
Wall mount
(Wall mount bracket included)
Wall mount
(Wall mount base included)
- -
Minimum illuminance required - 1 lx (within approx. 50cm from the camera lens) - -
Lighting method - Warm white LED lights, Infrared LEDs - -
IP rating/IK rating -
IPX3*
1
- -
External material Flame retardant ABS resin Flame retardant ABS resin ABS resin ABS resin
VL-SW251
VL-SW251BX (VL-MW251BX x 1, VL-W605BX x 1, VL-V522L) / VL-SW251CX (VL-MW251CX x 1, VL-W605CX x 1, VL-V522L)
VL-SW251SX (VL-MW251BX x 1, VL-W605BX x 1, VL-V522L) / VL-SW251AZ (VL-MW251AZ x 1, VL-W605AZ x 1, VL-V522L)
VL-FAN1BX/CX VL-V590BX/CX
Model number and name Optional Repeater for Wireless Monitor Optional Lobby Station
Dimensions
Power supply
AC adaptor (100 – 240 V AC, 50/60 Hz)
VL-FAN1BX: 2 pin AC plug
VL-FAN1CX: 3 pin AC plug
100 V – 240 V AC, 50/60 Hz
VL-V590BX: 2 pin AC plug
VL-V590CX: 3 pin AC plug
Power consumption
Standby: Approx. 0.05 A
During operation: Approx. 0.08 A
Standby: Approx. 0.02 A
During operation: Approx. 0.03 A
Dimensions (H x W x D)
(Excluding protruding sections)
Approx. 27 x 101 x 82 mm
Approx. 69.5 x 101 x 82 mm
(when raising the antenna)
Approx. 358 x 180 x 17.3 mm
(Excluding sections embedded into the wall)
Weight Approx. 85 g Approx. 2.0 kg
Operating environment
0 °C to 40 °C, Up to 90 % RH
(Relative Humidity) non condensing
-10 °C to 50 °C, Up to 90 % RH
(Relative Humidity) non condensing
Frequency 2.402 GHz – 2.481 GHz -
Viewing angle -
Horizontally: Aprrox. 87˚
Vertically: Approx. 66˚
Installation method -
Wall mount
(Flush mounted box included)
External material Flame retardant PS resin Stainless steel and ame retardant ABS resin
•
Example: Installation height is 1450 mm (standard position).
•
Wire (between the main monitor station and the door station):
•
Wire (between the main monitor station and PBX):
Type: General cable CAT-3 or 22 AWG (ø 0.65)
Distance: Maximum 100 m
Door station 1
*
1
Door
(Door Opener) 1
Door
(Door Opener) 2
PBX
Door station 2
(Non polar) (Non polar)
(Non polar)
(Non polar)
(Non polar)
Main monitor station
You can also connect
an optional lobby
station for apartment
complexes.
*
2
Terminal box
(4-conductor wiring)
Power plug
(100 – 240 V AC)
Type Distance Loop resistance
General cable CAT-3 Maximum 50 m
10 Ω or lower
General cable 22 AWG (ø 0.65) Maximum 100 m
Side view
Top view
101
82
69.5
180
17.3
358
MG-DHPL004EN 1410ITP/ZZZ-1
Mounting base
99 mm
83.5 mm
24 mm
131 mm
Mounting bracket
Main Monitor
165 mm
190 mm
58.3 mm
83.5 mm
Wood screws
Mounting base
83.5 mm
Wire (Not included)
Wall
Wood screws
Mounting bracket
83.5 mm
Wire (Not included)
Wall
Centre of
the door
station
range
1450 mm
1160 mm
1810 mm
500 mm
650 mm
66°
Image range:
960 mm
500 mm
87°
Important
• The actual product may vary slightly from photograph.
• Weights and dimensions are approximate.
• Design and Specifications are subject to change without notice.
• These products may be subject to export control regulations.
Up to 2
*
Cannot be connected to the VL-SW251AZ.
*
Cannot be connected to the VL-SW251AZ.
*1 Water resistance is only assured if the camera is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
*1 For VL-MW251BX/VL-MW251CX/VL-MW251SX users:
The door station is optional (not included).
*2 Connecting an optional lobby station for apartment complexes
Up to 2 Up to 4
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
*Due to product enhancement, Sin Chew Alarm reserved the right to change/modify specifications without prior notice.
