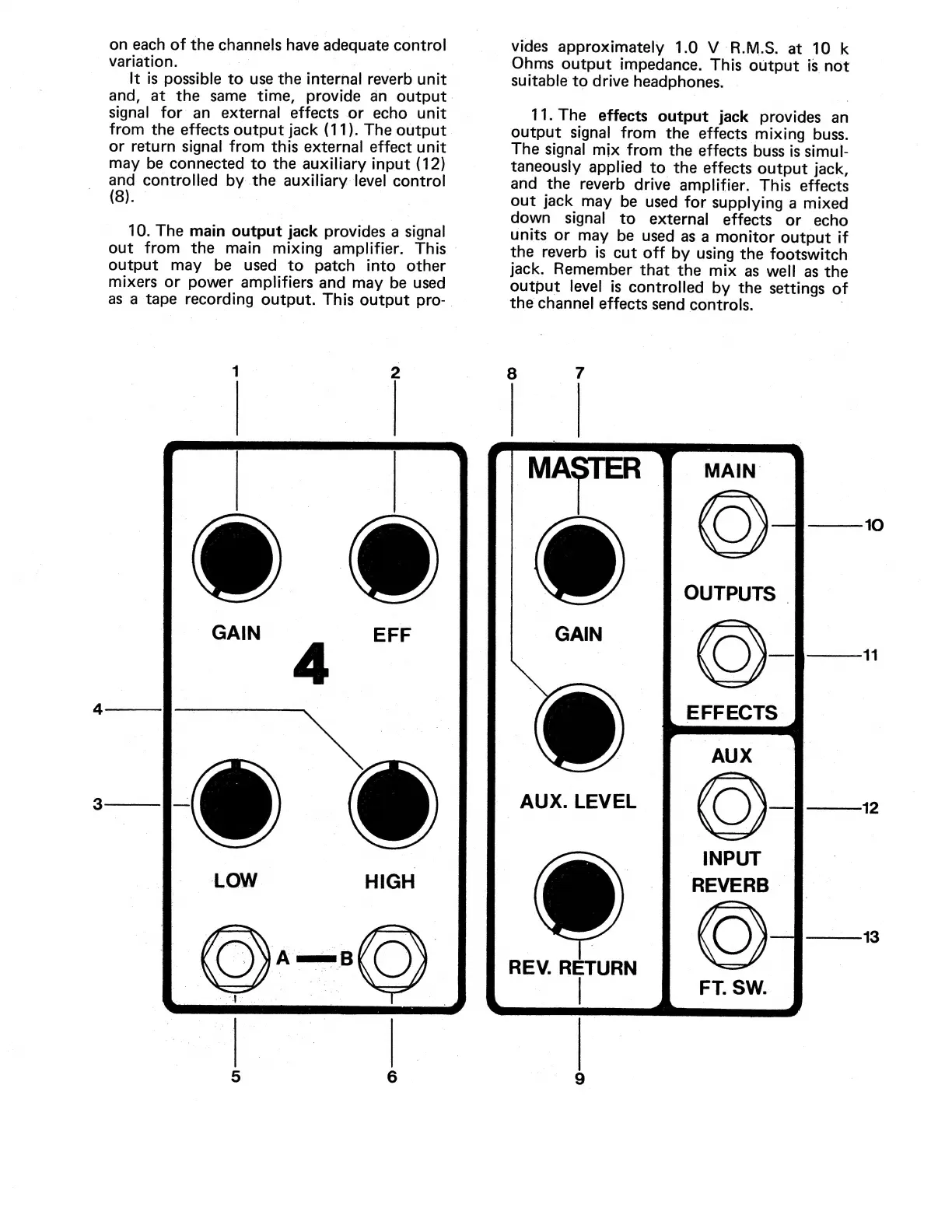

on each of the channels have adequate Sani
variation.
It is possible to use the internal reverb unit
and, at the same time, provide an output
signal for an external effects or echo unit
from the effects output jack (11). The output |
or return signal from this external effect unit
may be connected to the auxiliary input (12)
and controlled by the auxiliary level control
(8).
10. The main output jack provides a signal
out from the main mixing amplifier. This -
output may be used to patch into other
mixers Or power amplifiers and may be used
as a tape recording output. This output pro-
vides
approximately
1.0
V
R.M.S.
at
10
k
Ohms
output
impedance.
This
output
is
not
suitable
to
drive
headphones.
11. The effects output jack provides an
output signal from the effects mixing buss.
The signal mix from the effects buss is simul-
taneously applied to the effects output jack,
and the reverb drive amplifier. This effects
out jack may be used for supplying a mixed
down signal to external effects or echo
units or may be used as a monitor output if
the reverb is cut off by using the footswitch
jack.
Remember
that
the
mix
as
well
as
the
output level is controlled by the settings of
the channel effects send controls.
