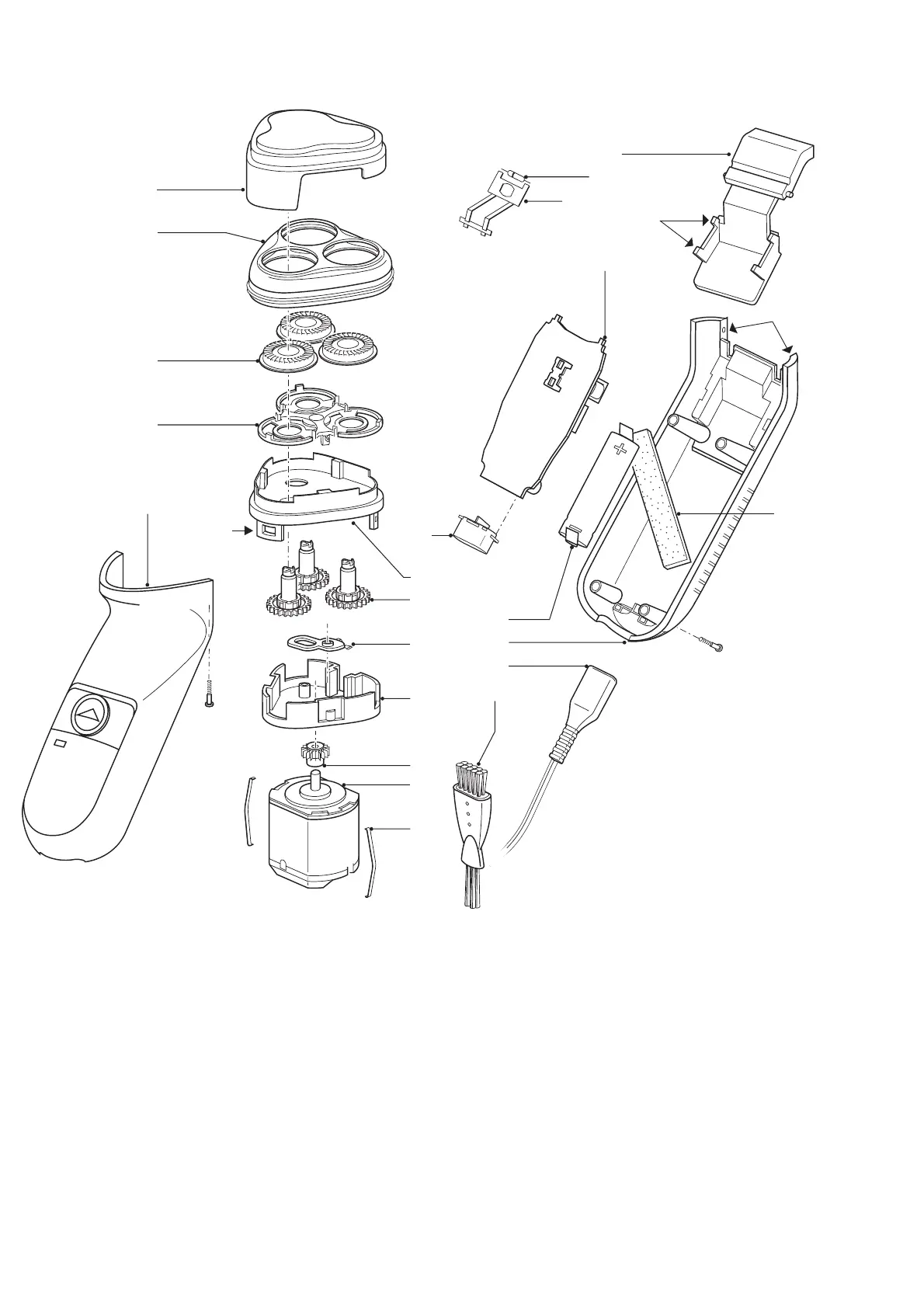

Philips HQ 4819 User Manual

1 4822 441 11276 Protecting cap
2 4222 036 01980 Bracket
3 4822 690 30468 HQ4 shaving head
4 4822 404 40728 Holder assy
5 4222 036 05010 Housing assy
6 4822 036 02370 Inlet
7 4222 036 03620 Hairchamber
8 4822 522 32852 Gear assy
9 4822 404 40656 Lever
10 4822 441 11275 Frame
11 4822 522 32851 Pinion
12 4822 361 21752 Motor assy
13 4822 492 63165 Motor clamp
14 4822 690 10081 Trimmer assy
15 4822 130 34167 BZX69-C6V2,113 Zenerdiode
16 4222 036 02390 Connecting strip
17 4822 466 91312 Foam plate
18 4222 036 02190 Power modul
19 4822 138 10584 NiMH cell AA
20 4222 036 02570 Cover
21 4822 321 10096 Flex assy GB
4822 321 10095 Flex assy EU
22 4822 479 30183 Cleaning brush
A 4822 502 30526 S.t. screw 1.8 x 10/T8
4222 036 02120 Pouch
HQ 4819
A1
Y
15+16
1
2
3
4
5
21
7
8
17
9
10
11
12
13
20
22
A2
14
X
Z
15
18
19
6
+
-
NiMH
