HD7862/20 / HD7862/21
To be able to open the appliance please follow bellows steps:
1. Make sure all accessories like tank, podholders, drip tray,
spout, and collector are removed.
2. Remove the two screws at the backside of the appliance.

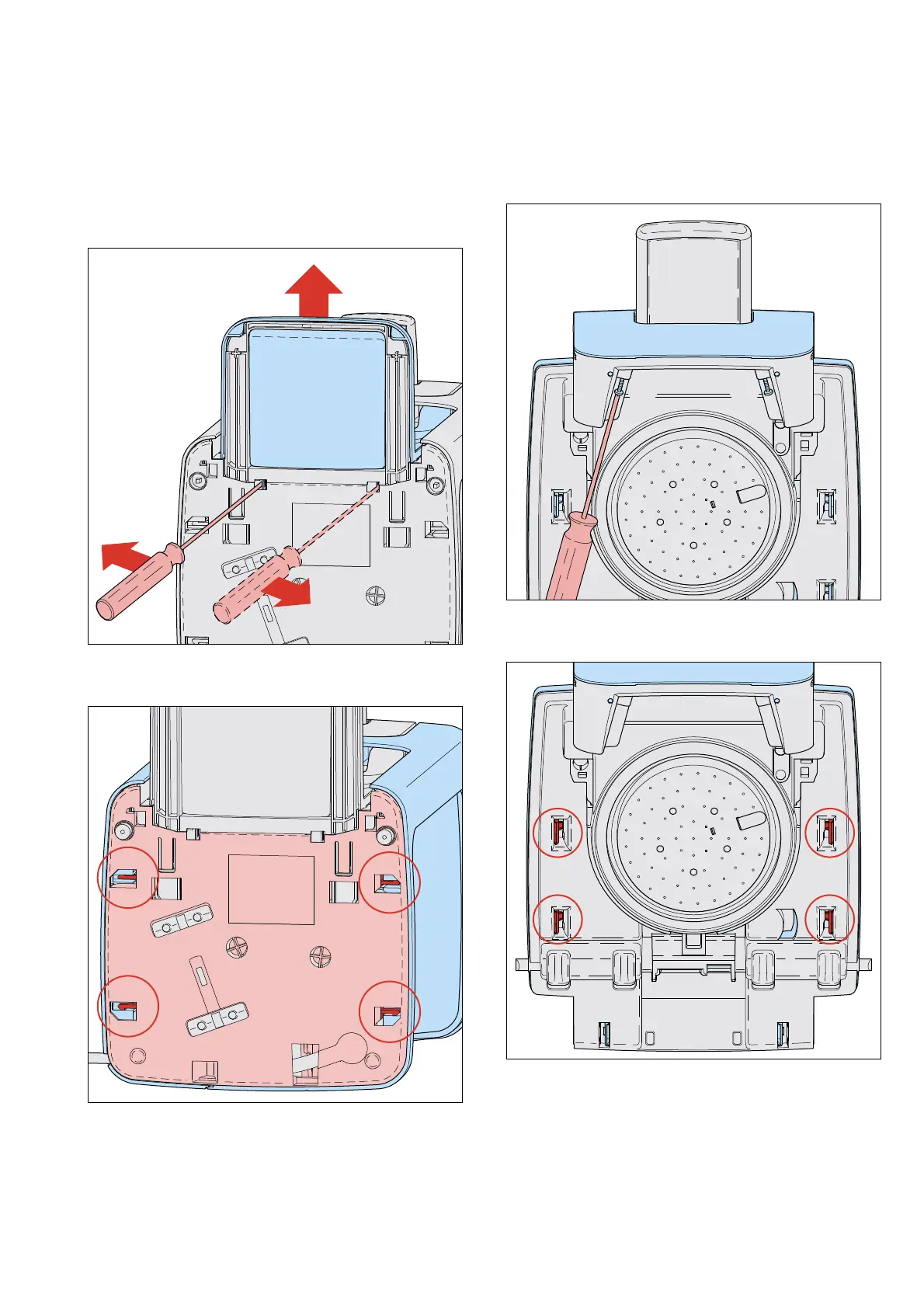

3. Place the appliance on it’s back and remove the front
panel by unlocking the two snap locks. (see picture)
1
2
4. To remove the side panels unlock the 2 snap locks at each
side and gently pull of the panels.
5. Once the front and side panels are removed the inner
components can be reached.
To be able to reach the inner parts of the lid assy follow
below steps:
1. Remove the two screws A which are holding the lid.
(see picture)
AA
2. To remove the lid cover, start with unlocking the 4 snap
locks B. (see picture)
B
B
B
B
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
2-9
To Next Page
