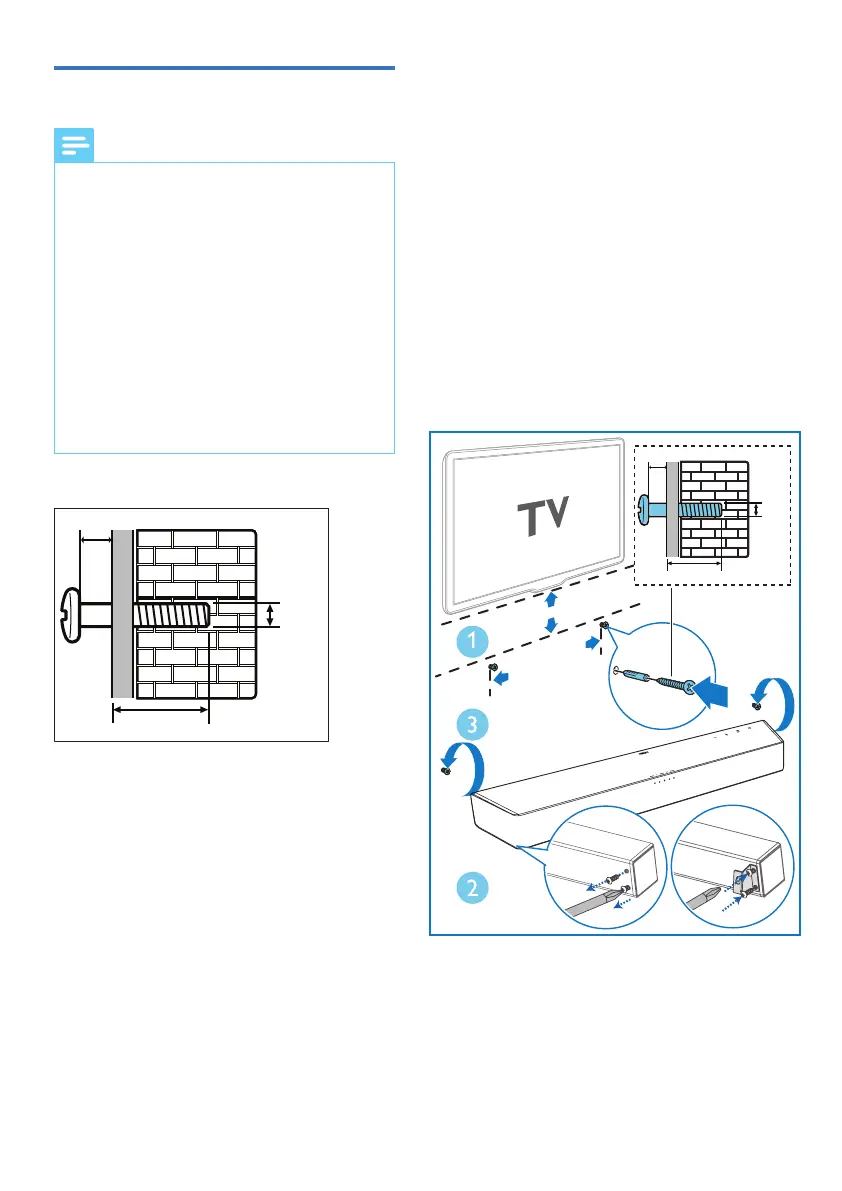

1 Drill 2 parallel holes (diameter
3-8mm each according to wall
type) on the wall. The distance
between the holes should be
646mm / 25.4".
» Secure the dowels and screws in
the holes.
2 Remove the screws (x4) from the
main unit.
» Attach the wall brackets (x2) to
the main unit with the screws
removed from the main unit.
3 Hang the Soundbar on the
fastening screws.
3.5-4mm/0.14"-0.16"
4mm/
0.16"
>25mm/0.98"
~50mm/2.0"
646 mm / 25.4"
Wall mount
Note
•
Improper wall mounting may result in accident,
injury or damage. If you have any query,
contact Consumer Care in your country.
•
Before wall mounting, make sure the wall can
support the weight of your Soundbar.
•
Before wall mount, you need not remove the
rubber feet at the bottom of the Soundbar,
otherwise the rubber feet cannot be xed back.
•
Depending on the type of wall mounting your
Soundbar, make sure that you use screws of a
suitable length and diameter.
•
Please check whether the USB port on the
back of the Soundbar is connected to a USB
device. If it is found that the connected USB
device aects the wall-mount, you need to use
another USB device of the appropriate size.
Screw length/diameter
> 25mm
3.5-4mm
4mm
3.5-4mm
4mm
>25mm
Suggested wall mounting height
You are recommended to install the TV
rst before wall mounting the soundbar.
With a TV preinstalled, wall mount the
soundbar 50mm/2.0" in distance from
the bottom of the TV.
