15_02
In order to improve safety and prevent unintentional operations, the lifting control only
becomes live after releasing the safety lever on the right hand side at the back of the
cabin.
Remember to bring the safety lever back onto the 'blocked' position once all tilting
operations are completed.
•
TIPPING ACTIONS OF THE PLATFORM MUST BE CARRIED OUT WHEN
THE VEHICLE IS STOPPED AND THE HANDBRAKE ENGAGED.
Safety devices
The tilting system has four components that guarantee maximum safety:

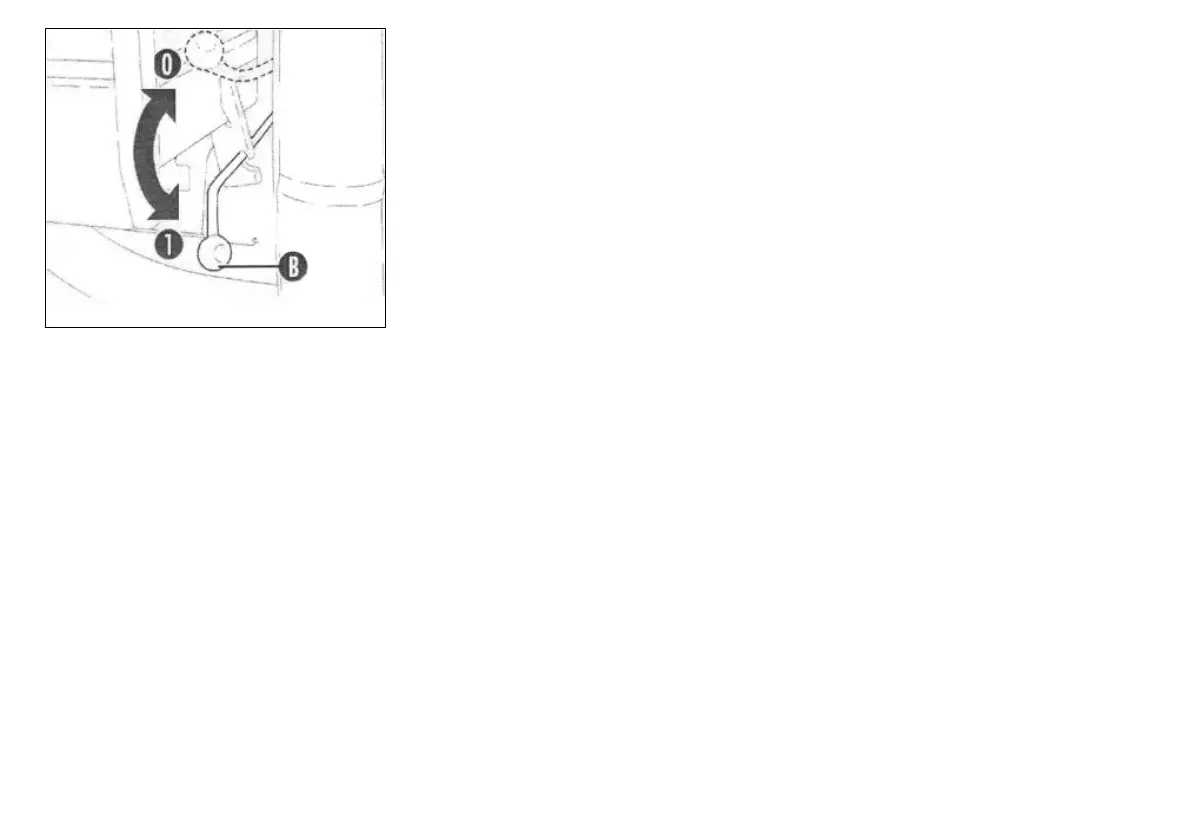

1. Safety lever «B» that locks the load bed when not engaged in tilting operations. In
fact to start any operation, the lever «B» must be moved upwards.
2. Light indicator (red coloured) positioned into the cab, which indicates the tilting of
the load bed.
3. System overpressure safety valve
4. Anti-extraction piston that allows securing the load bed in lifted and intermediate
position even while the engine is off.
Warnings for Loading and Unloading Operations (15_03, 15_04)
The operator must be in the driving position to use the equipment to be able to operate
quickly and effectively the normal and emergency controls. During the loading and
unloading operations the operator must take the following precautions.
111
