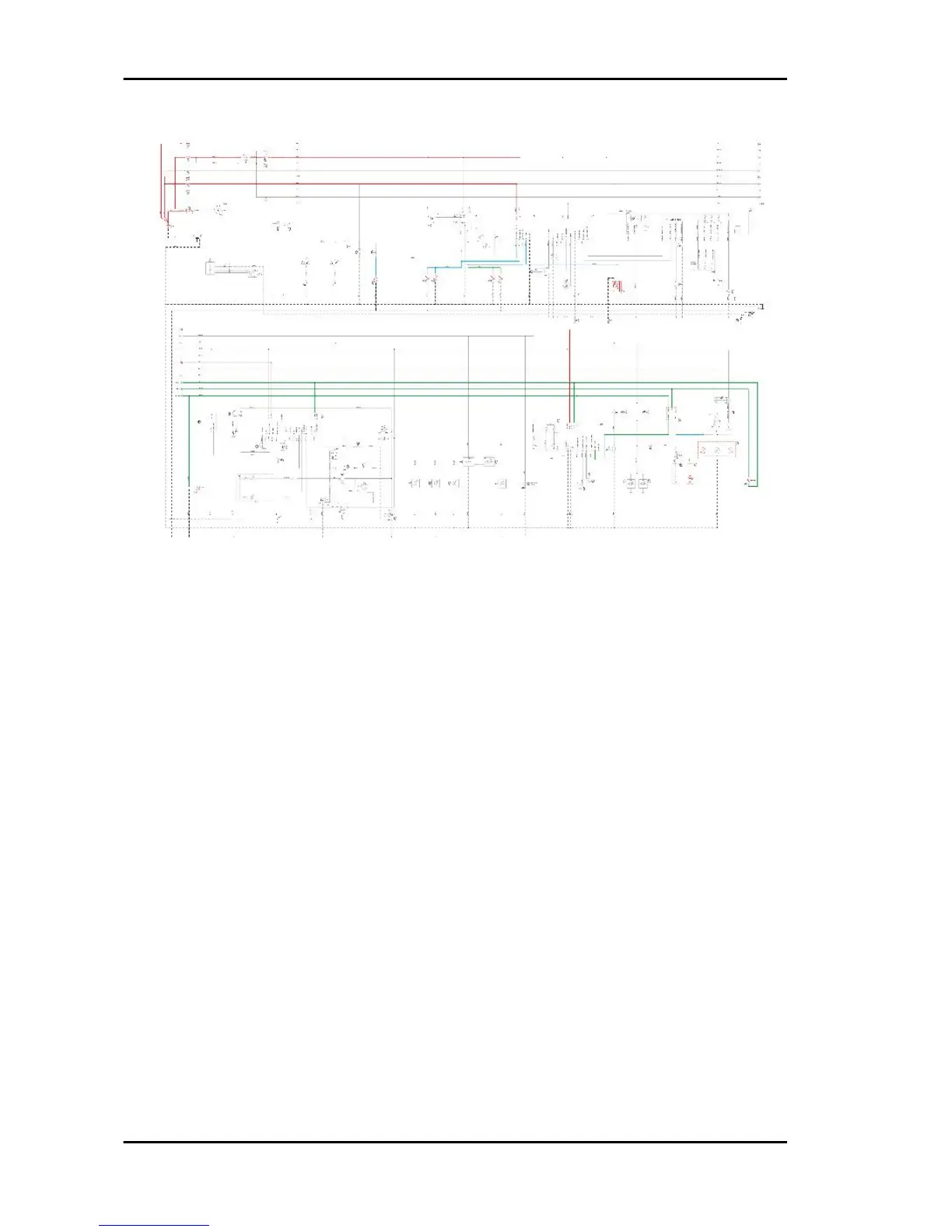

List of components
1 Battery 12V-10Ah
7 Frame ground node
9 Ignition switch
10 Fuse No. 1 -15A
12 Fuse No. 3 -10A
14 Fuse No. 5 -7,5A
27 Light unit
31 Instrument panel
32 Left front turn indicator
33 Right front turn indicator
34 Left rear turn indicator
35 Right rear turn indicator
36 Fuel level transmitter
40 CDI injection control unit
41 Front ground node
42 Rear ground node
43 Rear ground regulator
44 Instrument panel ground node
59 Diagnostics socket
Electrical system MSS X10 500ie Executive
