Pioneer A-209R Service Manual

A-209R, A-209
17
A
B
C
D
1
234
1
2
3
4

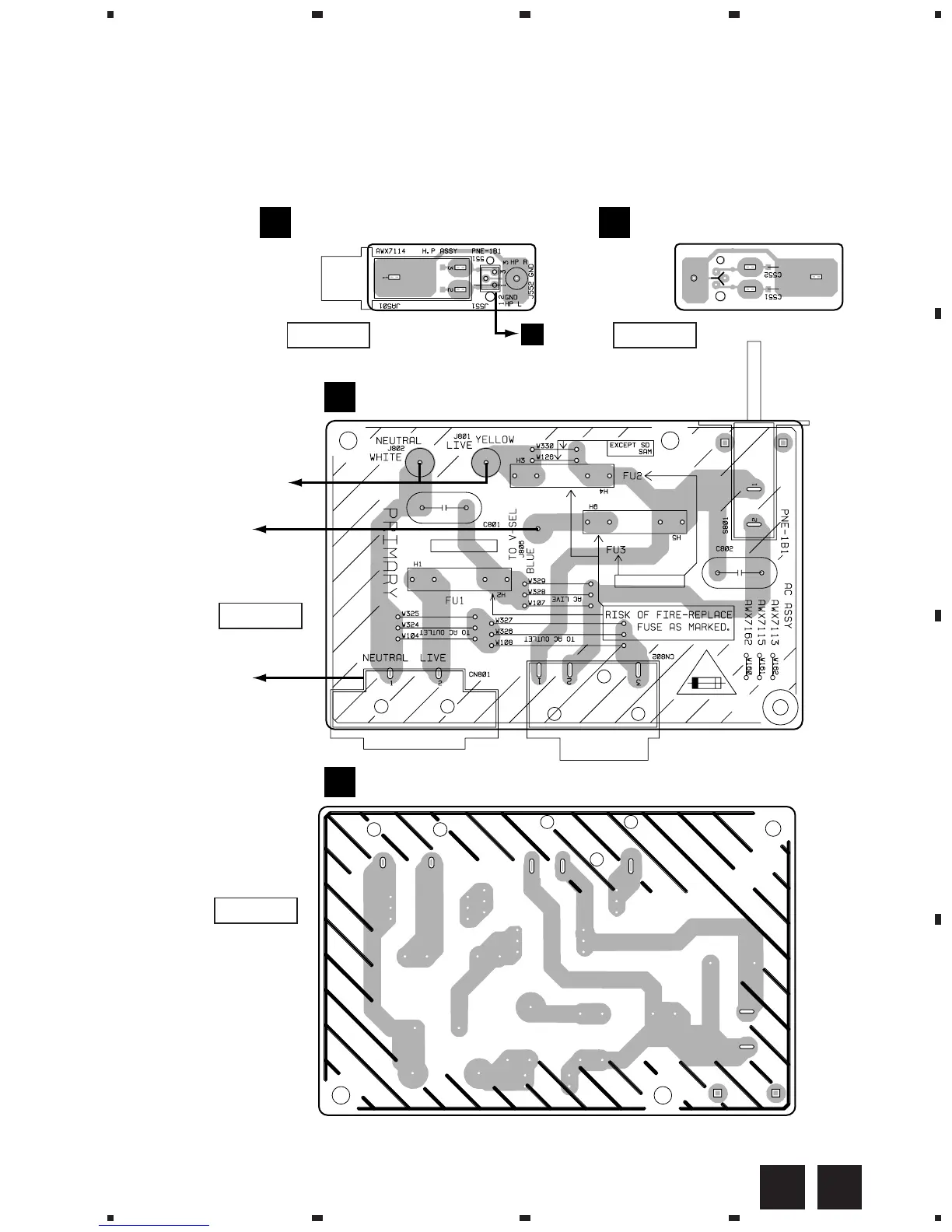

4.2 HEADPHONE and AC PRIMARY ASSYS
B C
(ANP7232-A)
HEADPHONE ASSY
B
J551A
D
(ANP7232-A)
HEADPHONE ASSY
B
(ANP7232-A)
POWER
TRANSFORMER
AC POWER
CORD
VOLTAGE
SELECTOR
(SBDXJ Type)
AC PRIMARY ASSY
C
(ANP7232-A)
AC PRIMARY ASSY
C
SIDE A
SIDE B
SIDE A SIDE B

Pioneer A-209R Specifications

General

Power Output	30W (8 ohms, 20Hz - 20kHz, 0.08% THD)
Total Harmonic Distortion	0.08% (20Hz - 20kHz, 15W, 8 ohms)
Signal-to-Noise Ratio	76dB (MM), 100dB (Line)
Input Sensitivity	2.5mV (MM), 150mV (Line)
Dimensions	420 x 114 x 307 mm
Weight	6.7 kg
Signal to noise ratio	100dB
Frequency Response	5Hz to 100kHz
