Pioneer A-209R Service Manual

Pioneer A-209R
34 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #22 background imageLoading...
Page #22 background image
A-209R, A-209
22
A
B
C
D
1
23
4
1234

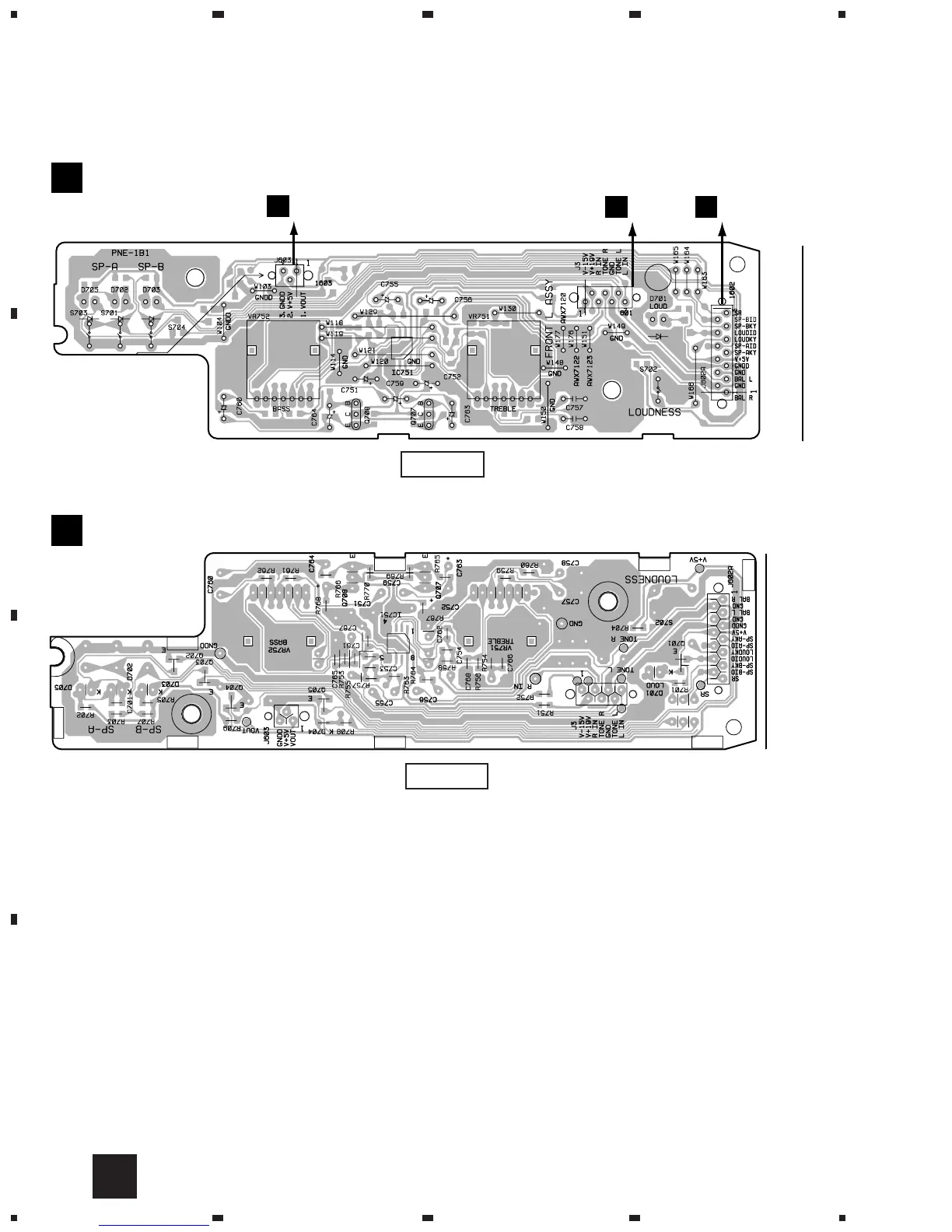

4.4 FRONT L ASSY
E
(ANP7231-A)
FRONT L ASSY
E
Q703,Q702
Q705,Q704
Q708
Q707
VR751
VR752
IC751,Q701
(ANP7231-A)
J602
F
CN502
A
J603A
G
FRONT L ASSY
E
SIDE A
SIDE B
