Pioneer CT-W205R Service Manual

CT-W205R

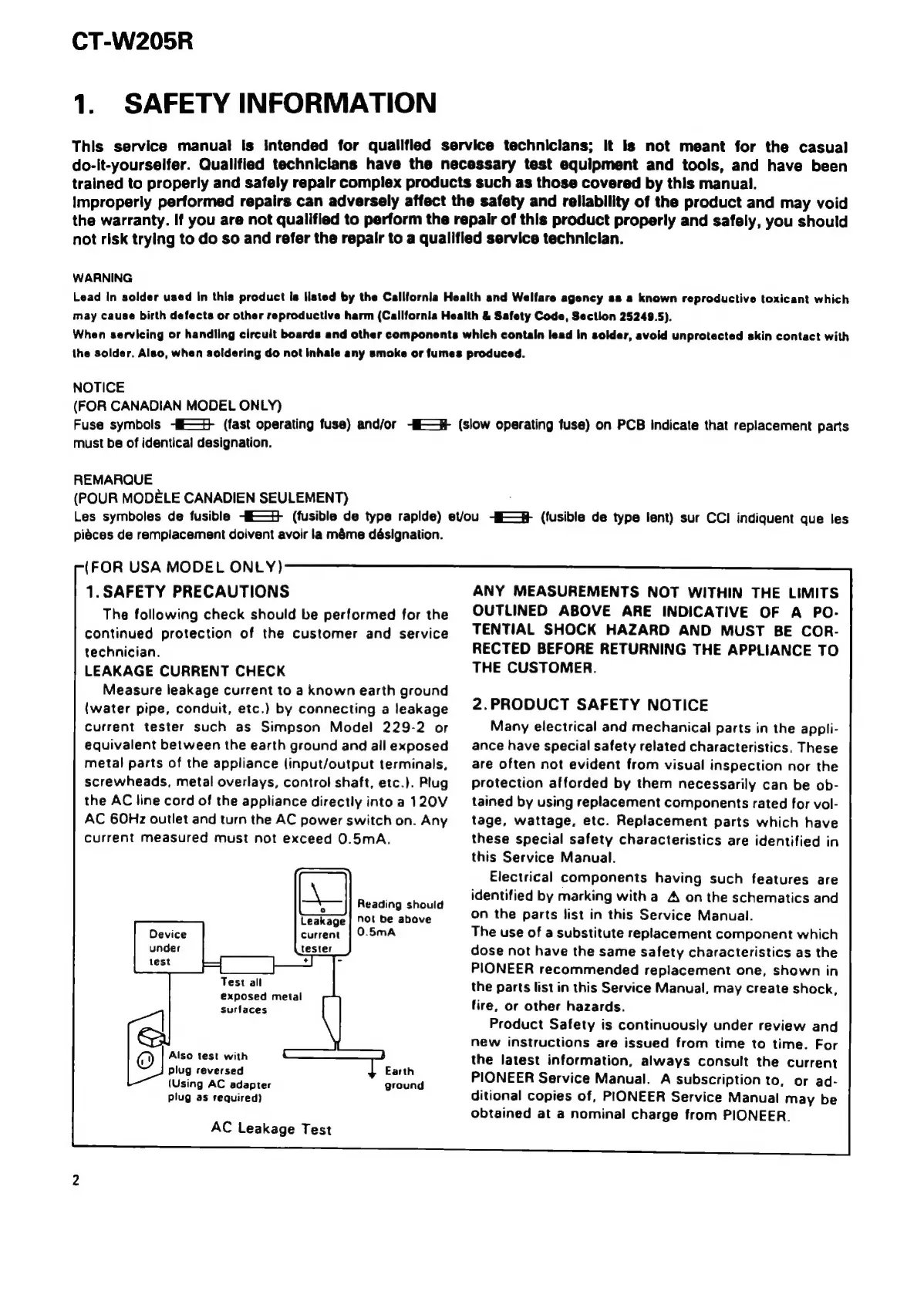

1. SAFETY INFORMATION
This service manual Is intended for quallfled service techniclans; It Ils not meant for the casual
do-it-yourselfer. Qualified techniclans have the necessary test equipment and tools, and have been
trained to properly and safely repalr complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should
not risk trying to do so and refer the repair to a qualified service technician.
WARNING
Lead In solder used In this product Is listed by the Callfornla Health and Welfare agency as a known reproductive toxicant which
may cauae birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain lead In solder, avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols -§&—+ (fast operating fuse) and/or -§E—# (slow operating fuse) on PCB indicate that replacement parts
must be of identical designation.
REMARQUE
(POUR MODELE CANADIEN SEULEMENT)
Les symboles de fusible -§E—4 (fusible de type rapide) evou -§e—# (fusible de type lent) sur CCI indiquent que les
pidces de remplacement doivent avoir la méme désignation.
(FOR USA MODEL ONLY)
1.SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.
Reading should
Uaakage not be above
0.5mA
Test all
exposed metal
surfaces
S32
© Also test with
plug reversed
(Using AC adapter
plug as required)
Earth
ground
AC Leakage Test
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.
2.PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained
by
using
replacement
components
rated
for
vol-
tage, wattage, etc. Replacement parts which have
these
special
safety
characteristics
are
identified
in
this Service Manual.
Electrical
components
having
such
features
are
identified by marking witha A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product
Safety
is
continuously
under
review
and
new
instructions
are
issued
from
time
to
time.
For
the
latest
information,
always
consult
the
current
PIONEER
Service
Manual.
A
subscription
to,
or
ad-
ditional
copies
of,
PIONEER
Service
Manual
may
be
obtained
at
a
nominal
charge
from
PIONEER.

Pioneer CT-W205R Specifications

Power

power requirements for U.K. and Australian models	AC 220 - 230 volts, 50/60 Hz
power requirements for U.S. and Canadian models	AC 120 volts, 60 Hz
power consumption	16W

Audio Specifications

wow and flutter	0.09% (WRMS)
frequency response for TYPE IV (Metal) tape	20 to 16, 500 Hz
frequency response for TYPE II (High/CrOz) tape	20 to 16, 000 Hz
frequency response for TYPE I (Normal) tape	20 to 16, 000 Hz

Signal and Noise

signal-to-noise ratio with Dolby NR OFF	More than 57 dB
noise reduction effect with Dolby B-type NR ON	More than 10 dB (at 5 kHz)
noise reduction effect with Dolby C-type NR ON	More than 19 dB (at 5 kHz)

Input and Output

input sensitivity for LINE (INPUT)	100 mV (Input impedance 68 kΩ)
output reference level for LINE (OUTPUT)	0.5 V (Output impedance 1.9 kΩ)
harmonic distortion	No more than 0.8% (at -4 dB: 160 nwb/m)

Weight and Dimensions

dimensions	420 (W) x 125 (H) x 250 (D) mm
weight for U.K. and Australian models	3.9 kg
weight for U.S. and Canadian models	3.8 kg
