49
DEH-1100,11

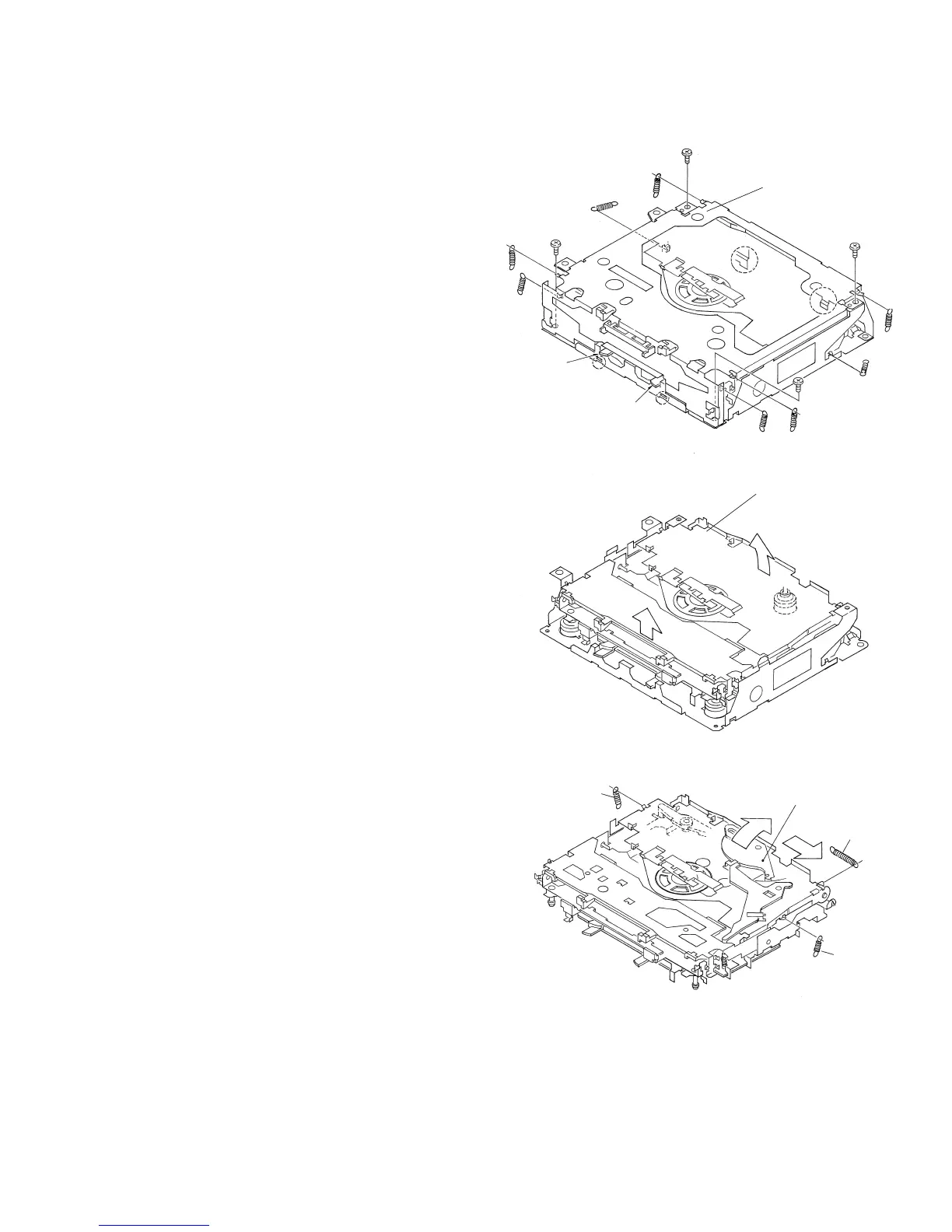

- Removing the Upper Frame
1. Remove six Springs A, two Springs B and four
Screws.
2. Remove two Tabs situated on rear side of the Upper
Frame, remove two Arms on the front side, then
remove two Tabs on the front side.
- Removing the Carriage Mechanism
1. Disengage the Carriage Mechanism from the two
dampers situated in the front side by driving it up,
then disengage and remove the mechanism from the
one damper by driving it up aslant into front side
direction.
Note : When assembling the Carriage Mechanism, coat
the dampers with alcohol prior to the assembly.
- Removing the Clamp Arm Assy
1. Remove a Spring A, a B and a Spring C.
2. Drive the Clamp Arm Assy up into rear side direction,
then disengage the arm from its current position
Finally, drive the assembly approximately 45 degrees
upward, then slide the assembly toward right side to
remove it.
B
A
B A
A
A
Arm
Arm
A
B
C
Upper Frame
Carriage Mechanism Section
Clamp Arm Assy Section
A
A
To Next Page
