Pioneer GM-600 User Manual

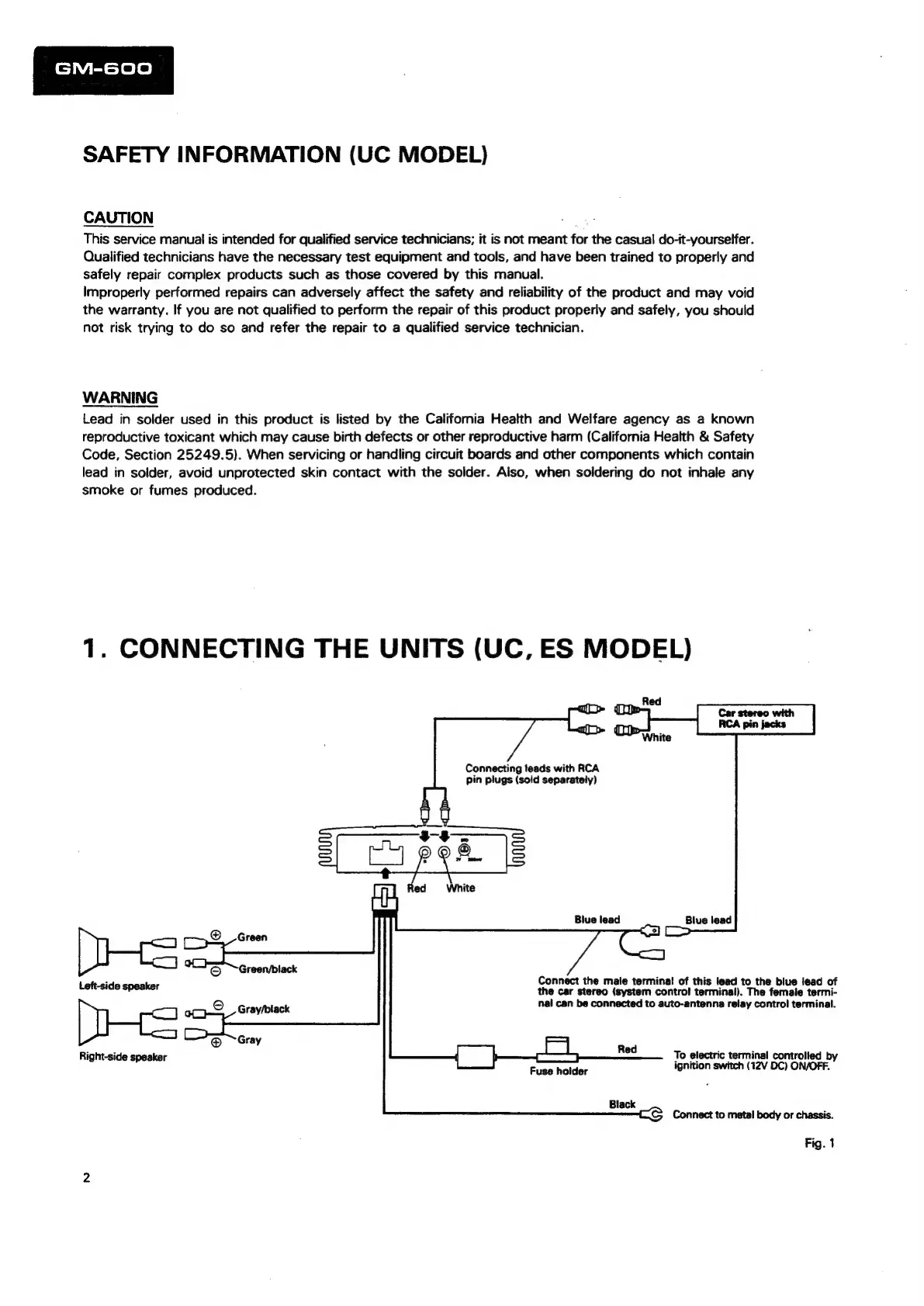

SAFETY INFORMATION (UC MODEL)
CAUTION
a
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and
safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should
not risk trying to do so and refer the repair to a qualified service technician.
WARNING
Lead in solder used in this product is listed by the California Heatth and Welfare agency as a known
reproductive toxicant which may cause birth defects or other reproductive harm (California Health & Safety
Code, Section 25249.5). When servicing or handling circuit boards and other components which contain
lead in solder, avoid unprotected skin contact with the solder. Aliso, when soldering do not inhale any
smoke or fumes produced.
1. CONNECTING THE UNITS (UC, ES MODEL)
Connecting teads with RCA
pin plugs (solid separately)
Blue lead Blue lead
Connect the male terminal of this lead to the blue fead of
Left-side speaker the car stereo (system control terminal). The female termi-
nai can be connected to auto-antenna relay control terminal.
Right-side speaker To electric terminal controlled by
ignition switch (12V DC) ON/OFF.
Connect to metal body or chassis.
Fig. 1

Pioneer GM-600 Specifications

General

Brand	Pioneer
Model	GM-600
Category	Amplifier
Language	English
