Pioneer PD-101 User Manual

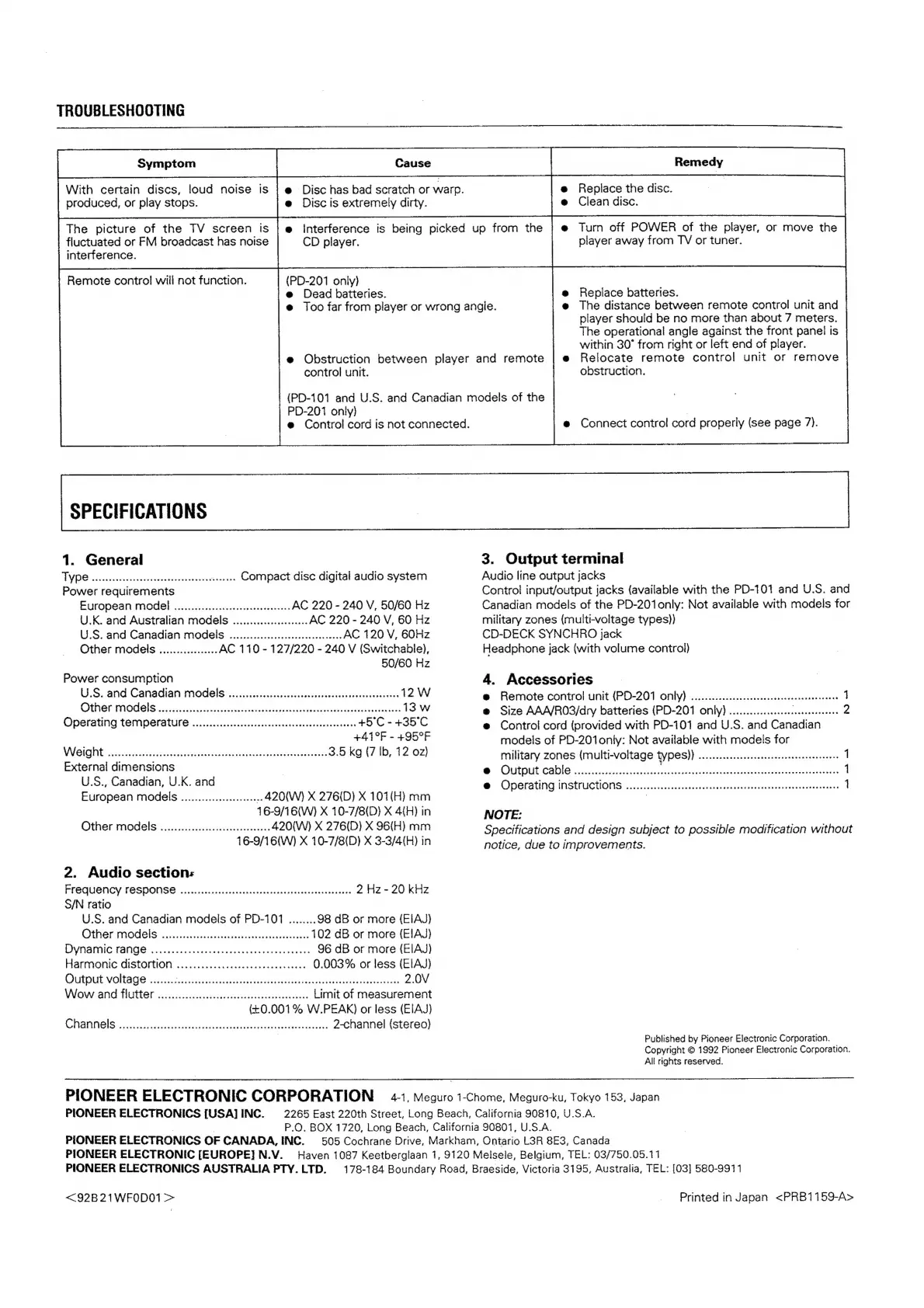

TROUBLESHOOTING
With certain discs, loud noise is | @ Disc has bad scratch or warp.
produced, or play stops. e Disc is extremely dirty.
@ Replace the disc. 3
@ Clean disc.
The picture of the TV screen is
fluctuated or FM broadcast has noise
interference.
@ interference is being picked up from the
e Turn off POWER of the plaver, or move the
CD player.
player away from TV or tuner.
Remote control will not function. {(PD-201 only)
e Dead batteries.
@ Too far from player or wrong angle.
e Replace batteries.
@ The distance between remote control unit and
player should be no more than about 7 meters.
The operational angle against the front panel is
within 30° from right or left end of player.
e Relocate remote control unit or remove
obstruction.
e Obstruction between player and remote
control unit.
(PD-101 and U.S. and Canadian models of the
PD-201 only)
e Control cord is not connected.
@ Connect control cord properly (see page 7).
SPECIFICATIONS
1. General 3. Output terminal
EW OG walatttetsticdaweteaccuacseeeatenty Suzus Compact disc digital audio system Audio line output jacks
Power requirements Control input/output jacks {available with the PD-101 and U.S. and
European Model ...........cscscceeececeeeeeeteees AC 220 - 240 V, 50/60 Hz Canadian models of the PD-201only: Not available with models for
U.K. and Australian models «0.0... AC 220 - 240 V, 60 Hz military zones (multi-voltage types))
U.S. and Canadian models ............ccccceeeesceaeeseeees AC 120 V, 60Hz CD-DECK SYNCHRO jack
Other models ................ AC 110 - 127/220 - 240 V (Switchable), Headphone jack (with volume control)
50/60 Hz
Power consumption A. Accessories
U.S. and Canadian Models .......sssscsecsesssensereesnenteeseeeneen 12W @ Remote control unit (PD-201 only) 0.0... eee eeseesteesscesseeeeesenees 1
Other MOEIS ........esceecseeneseeeseeneeneentsesesnnessecnseneesecees coos 1 3 w @ Size AAA/RO3/dry batteries (PD-201 only) ...cceesecccceceseseeseeeees 2
Operating temperature ............ ccc cccccsceceeeeesessetneeeeeeeeens +5°C-+35°C @ Control cord (provided with PD-101 and U.S. and Canadian
+41 °F - +95°F models of PD-201only: Not available with models for
Weight ..........-. sesseesenneaseeenesssenensenecsncneennennceneentans 3.5 kg (7 Ib, 12 02) military zones (multi-voltage tyPeS)) .....csccecsecessesesersesessesseseees 1
External dimensions @. OUtplit Cable a. ccscewiens Oa ete A ae eR hates 1
U.S., Canadian, U.K. and @ OO ati a INSECH ORS ciara einer acc tuetinane. 1
European models ...........c:cccescees - 420(W) X 276(D) X 101(H) mm :
16-9/16(W) X 10-7/8(D) X 4{(H) in NOTE:
OtiSiimodelS:.sintstnesinedeteiaies 420(W) X 276(D) X 96(H) mm Specifications and design subject to possible modification without
16-9/16(W) X 10-7/8(D) X 3-3/4(H) in notice, due to improvements.
2. Audio section:
FFEQUENCY FESPONSE .......ccceccccccccneesenscesesevesensenseanaaeas 2 Hz- 20 kHz
S/N ratio
U.S. and Canadian models of PD-101 ........ 98 dB or more {EIAJ)
OTOrIMOdElS vecessciscisiolsieteeteceeteacret tes 102 dB or more {EJAJ)
DVNGMIC TARO hance soneaeeawa i tebese es merenen 96 dB or more (EIAJ)
Harmonic disto@mion: ss.ciisieniiaccdii easiness 0.003% or less (EIAJ)
Output voltage ........ t sncilea vestacaamen anes hast asuie ta lcaneedinivinten ee 2.0V
WOW dd TUT OF tii sccrcacsscevcisnchatedtoaeececsores Limit of measurement
(+0.001 % W.PEAK) or less (EIAJ)
CANONS crs: cevstrevearedaiedetenrtssueteanedteeuneehreee® 2-channel (stereo)
Published by Pioneer Electronic Corporation.
Copyright © 1992 Pioneer Electronic Corporation.
All rights reserved.
PIONEER ELECTRONIC CORPORATION 4-1, vee 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS [USA] INC. 2265 East 220th Street, Long Beach, California 90810, U.S.A.
. . P.O. BOX 1720, Long Beach, California 90801, U.S.A.
PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive, Markham, Ontario L3R 8E3, Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium, TEL: 03/750.05.11
PIONEER ELECTRONICS AUSTRALIA PTY.LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [03] 580-9911
<92B21WFODO1 > _ Printed in Japan <PRB1159-A>
