Pioneer PD-54 User Manual

— VARO!
AVATTAESSA JA SUOJALUKITUS
OHITETTAESSA OLET ALTTIINA
NAKYMATTOMALLE LASERSATEILYLLE.
ALA KATSO SATEESEEN.
r-ADVERSEL:
USYNLIG LASERSTRALING VED ABNING
NAR SIKKERHEDSAFBRYDERE ER UDE AF
FUNKTION UNOGA UDSAETTELSE FOR
STRALING.
VARNING!
OSYNLIG LASERSTRALNING NAR DENNA
DEL AR OPPNAD OCH SPARREN
AR URKOPPLAD. BETRAKTA EJ STRALEN.

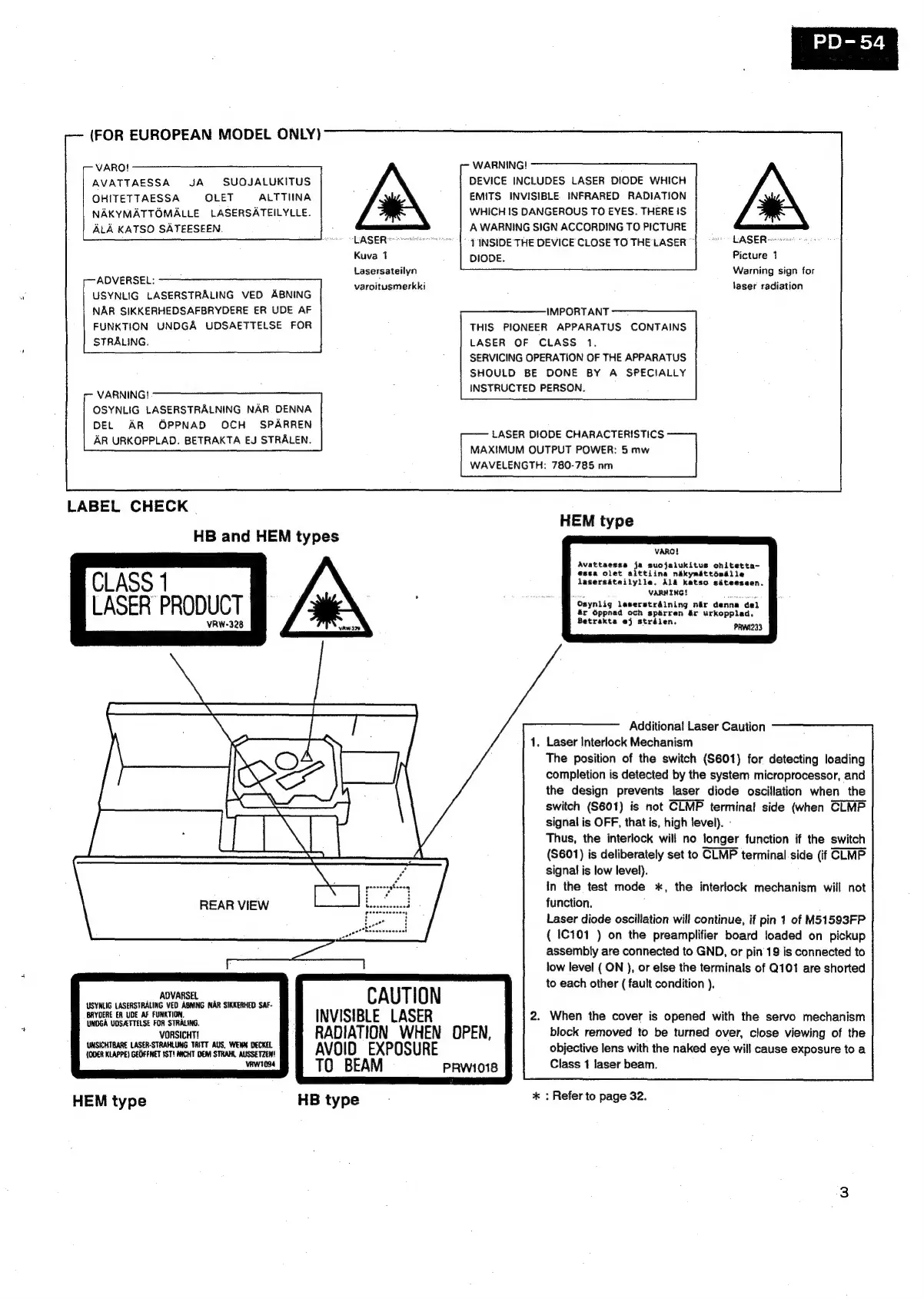

LABEL CHECK
CLASS 1
LASER PRODUCT
VRW-328
REAR VIEW
ADVARSEL
USYNLIG LASERSTRALING VED ABNING NAR SIKKERHED SAF-
BRYDERE ER UDE AF FUNKTION,
UNOGA UDSATTELSE FOR STRALING.
VORSICHT!
UNSICHTRARE LASER-STRAHLUNG TAITT AUS, WENN DECKEL
(ODER KLAPPE) GEGFENET IST! NICHT DEM STRAHL AUSSE TZEN!
VRW1094
HEM type
(FOR EUROPEAN MODEL ONLY)
HB and HEM types
LASERS
Kuva 1
Lasersateilyn
varoitusmerkki
CAUTION
INVISIBLE LASER
RADIATION WHEN OPEN,
AVOID EXPOSURE
TO BEAM
HB type
WARNING!
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE. INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE !S
A WARNING SIGN ACCORDING TO PICTURE
7 INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780-785 nm
LASER-
Picture 1
Warning sign for
laser radiation
PRW1018
. Laser Interlock Mechanism
. When the cover is opened with the servo mechanism
HEM type
VARO!
Avattaessa ja suojalukitus ohitetta-
essa olet alttiina naikymaéttémdlle
lasersdteilylle., Ala katso sdteeseen.
bis VARNING! pean
Osynlig laserstrdlning nér denna del
&r Oppnad och sparren &r urkopplad,
Betrakta ej strdlen. PRWI233
Additional Laser Caution
The position of the switch (S601) for detecting loading
completion is detected by the system microprocessor, and
the design prevents laser diode oscillation when the
switch (S601) is not CLMP terminal side (when CLMP
signal is OFF, that is, high level). -
Thus, the interlock will no longer function if the switch
(S601) is deliberately set to CLMP terminal side (if CLMP
signal is low level).
In the test mode +, the interlock mechanism will not
function.
Laser diode oscillation will continue, if pin 1 of M51593FP
( 1C101 ) on the preamplifier board loaded on pickup
assembly are connected to GND, or pin 19:is connected to
low level ( ON ), or else the terminals of Q101 are shorted
to each other ( fault condition ).
block removed to be turned over, close viewing of the
objective lens with the naked eye will cause exposure to a
Class 1 laser beam.
* : Refer to page 32.
