You can set the timing duration by means of analog input (such as potentiometer signal). For
details, see the description of P8-43.
3.6.5 JOG Running
In certain applications, the AC drive needs to run in low speed temporarily to facilitate
equipment test or other commissioning operations. In this case, you can set the AC drive to
perform JOG running.

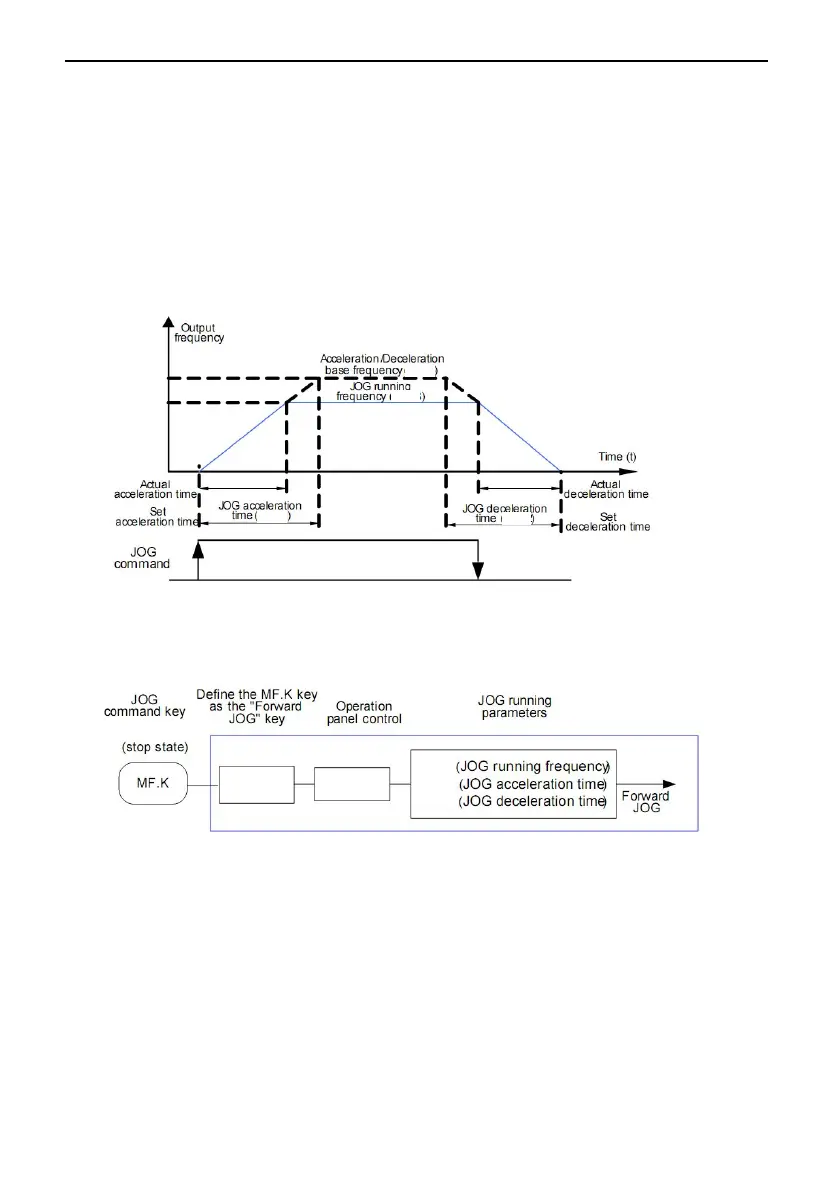

Figure 3-12 JOG running
3.6.5.1 JOG Running in Operation Control
Figure 3-13 JOG running in operation panel control
Set the parameters according to the preceding figure. In stop state of the AC drive, hold down
MF.K, and the AC drive starts JOG running. After you release MF.K, the AC drive decelerates to
stop.
To perform reverse JOG, set P7-01 to 4 and P8-13 to 1. Hold down MF.K, and the AC drive
starts reverse JOG running.
