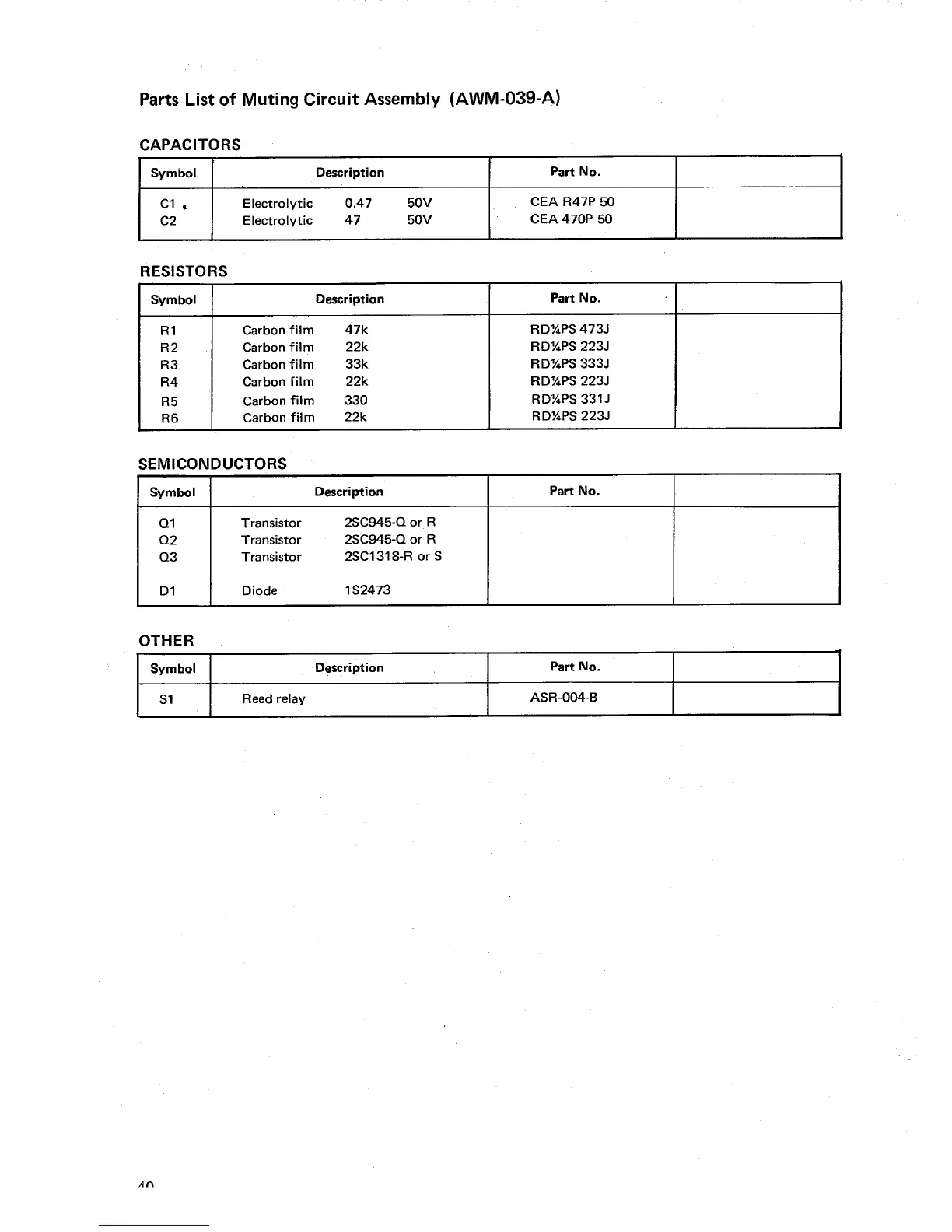

Parts List of Muting Circuit Assembly (AWM-

039-

CAPACITORS

Symbol

Description

Part No.

C1 .

Electrolytic

50V

CEA R47P 50

Electrolytic

50V

CEA 470P 50

RESISTORS

Symbol

Description

Part No.

Carbon film

47k

RD%PS 473J

Carbon film

22k

RD%PS 223J

Carbon film

33k

RD%PS 333J

Carbon film

22k

RD%PS 223J

Carbon film

330

RD%PS 331J

Carbon film

22k

RD%PS 223J

SEMICONDUCTORS

Symbol

Description

Part No.

Transistor

2SC945-

Q or R

Transistor

2SC945-Q or R

Transistor

2SC1318-

R or S

Diode

1 S2473

OTHER

Symbol

Description

Part No.

Reed relay

ASR-

OO4-
