Pioneer SX-636 Service Manual

<ART-052-0>

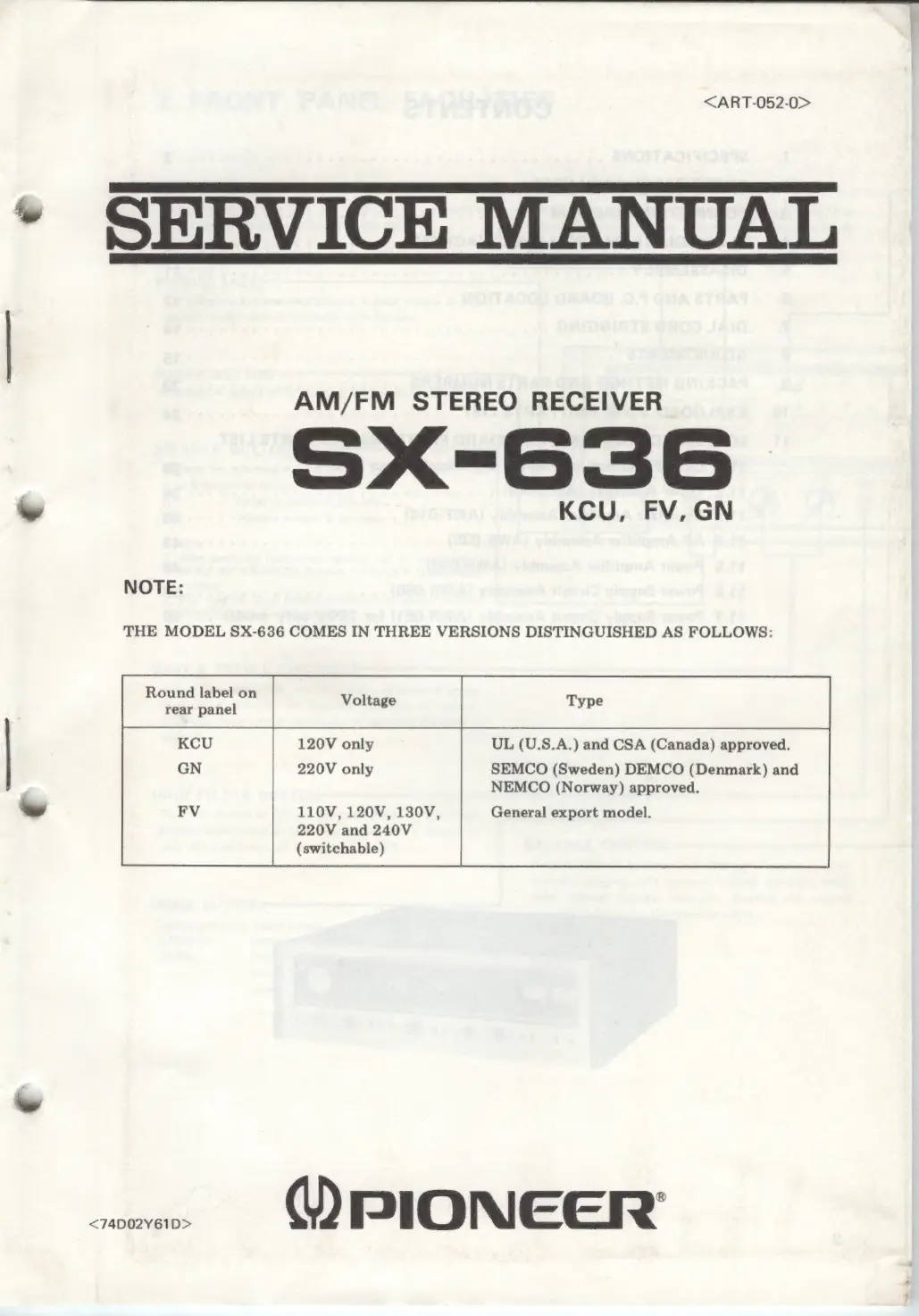

° SERVICE MANUAL
AM/FM STEREO RECEIVER
SX-636
- KCU, FV,GN
NOTE:
THE MODEL SX-636 COMES IN THREE VERSIONS DISTINGUISHED AS FOLLOWS:
Round label on Voltage
rear panel
KCU 120V only UL (U.S.A.) and CSA (Canada) approved.
GN 220V only SEMCO (Sweden) DEMCO (Denmark) and
NEMCO (Norway) approved.
~ FV 110V, 120V, 130V, General export model.
220V and 240V
(switchable)
^ OPIONEER:

Pioneer SX-636 Specifications

General

Tuning Range	FM, MW
Input Sensitivity	2.5 mV (MM), 150 mV (line)
Output	150 mV (line)
Speaker Load Impedance	4 to 16 ohms
Total Harmonic Distortion	0.5%
Signal to Noise Ratio	90dB (line)
Weight	11.2kg
Damping Factor	30
Power Output	25 watts per channel (8 ohms)
