Rear Suspension Adjustments
Initial Spring Preload Setting (Sag Method)
To set up the rear suspension torsion

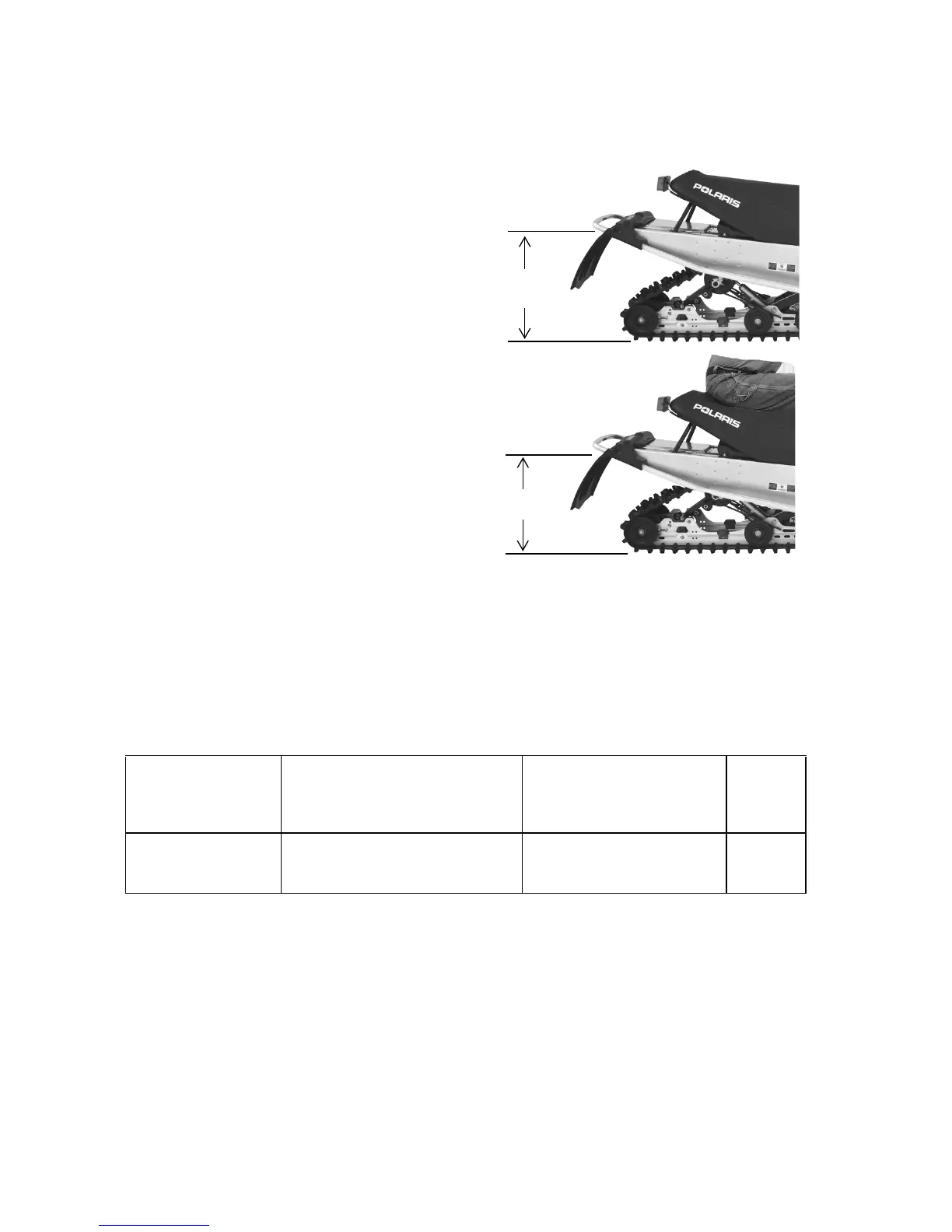

spring preload, measure the distance
between the ground and rear
bumper. This is measurement X.
Take the first measurement with no
rider and with the rear suspension at
full extension.
NOTE: The rear bumper may need
to be lifted upward slightly
to fully extend the rear
suspension.
Next, have the rider drop down hard
on the seat and bounce up and down
several times, collapsing the rear
suspension. With the rider seated,
measure the distance between the
ground and the rear bumper at the
exact location used for measurement
X. This is measurement Y.
To determine sag, commonly referred to as ride-in, subtract measure-
ment Y from X (sag=X-Y). If the measured sag is incorrect, adjust the
FRA position and/or rear torsion spring preload.
NOTE: This is only an initial setup, and final spring preload may vary
based on rider preference and riding conditions.
Suspension Recommended Sag Adjustment
See
Page
IQ (121) 3-4 inches (8-10 cm) Torsion Spring
Preload
45
X
Y
