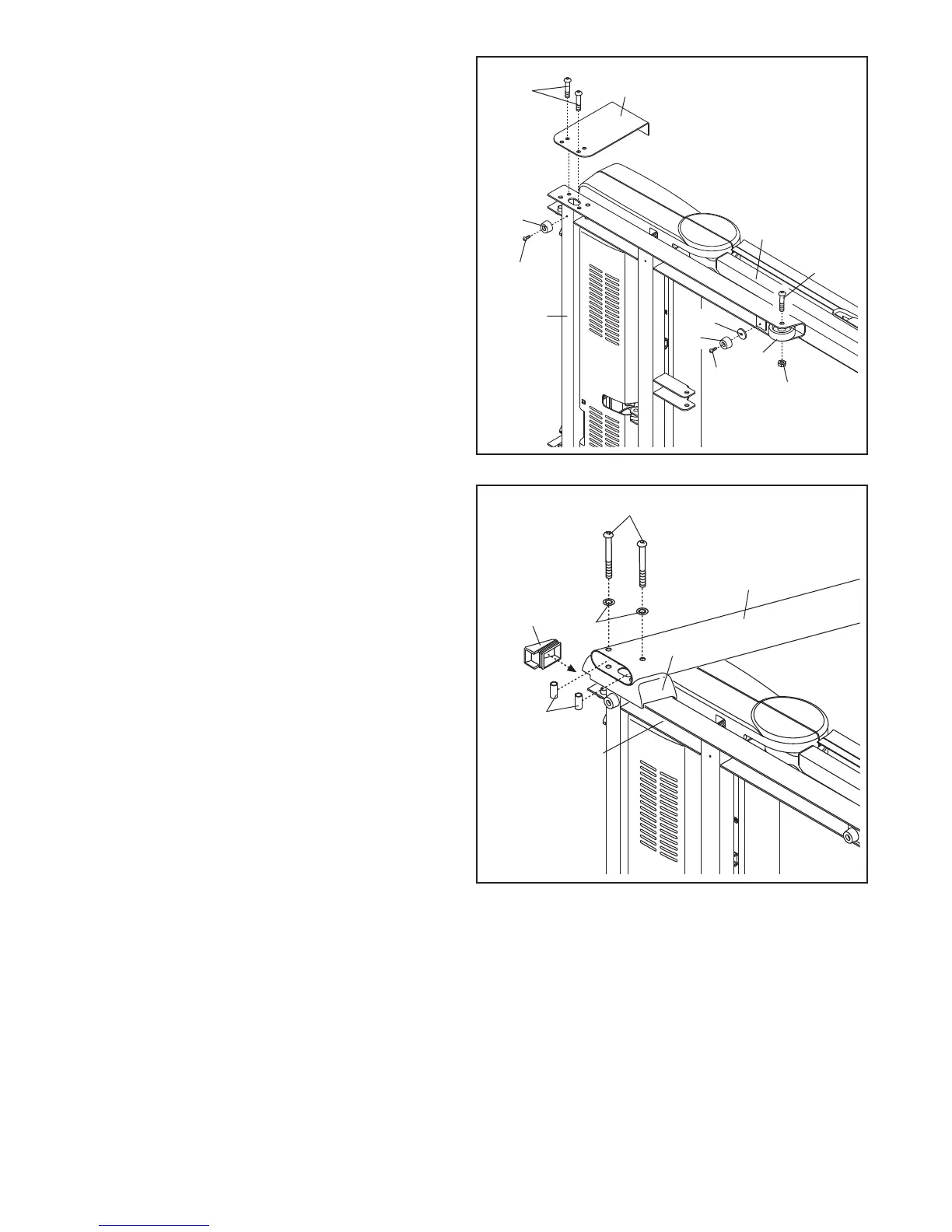

6. Press a Base Cap (82) into the Base (86).
Set the Left Upright Spacer (83) on the Base
(86). Hold a Bolt Spacer (80) inside the lower
end of the Left Upright (76). Insert a 3/8" x 4"
Bolt (6) with a 3/8" Star Washer (9) into the Left
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (80), 3/8" x 4" Bolt
(6), and 3/8" Star Washer (9). Set the Left
Upright in the Left Upright Spacer.
Partially tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
With the help of a second person, tip the tread-
mill so that the Base (86) is flat on the floor.
83
76
6
86
82
6
9
80
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (51) so the treadmill is more stable; do
n
ot fully fold the Frame yet.
R
emove and discard the two indicated bolts (A)
and the shipping bracket (B).
Attach a Base Pad (88) to the Base (86) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Pad Spacer (13). Then, attach another
Base Pad (88) with only a #8 x 1" Tek Screw
(2).
Attach a Wheel (87) with a 3/8" x 2" Bolt (4) and
a 3/8" Nut (8). Do not overtighten the Nut; the
Wheel must turn freely.
5
86
B
A
87
51
8
88
2
4
2
88
13
