TD -001597-01-A
For mounting that requires no panning left or right, the bracket kit includes a zero-
pan locking screw to keep the loudspeaker securely in place.

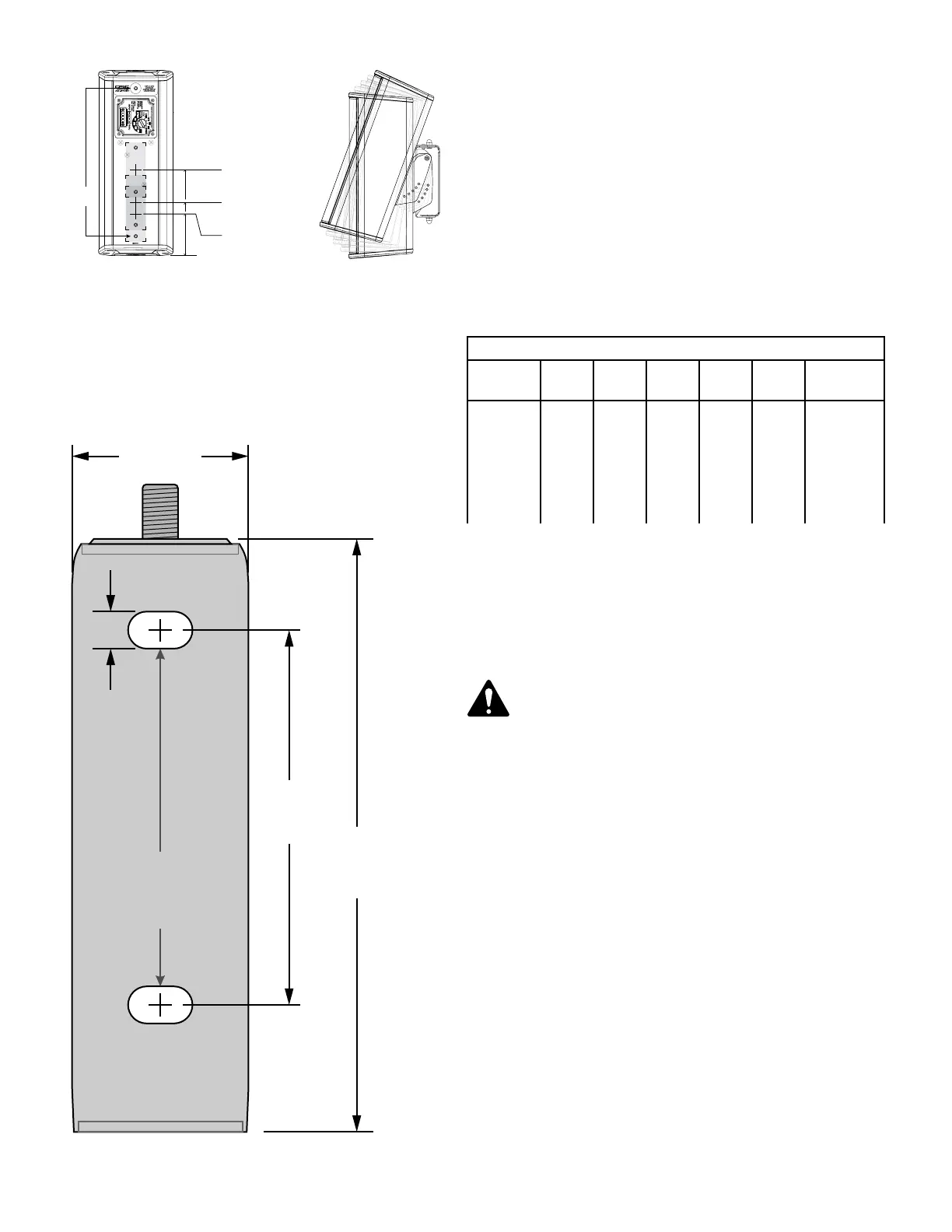

The AD-S402T has three attachment locations for the bracket. Figure 6 shows their
center points, including distances from the bottom edge of the enclosure. Two M6 ×
20 screws with flat washers are included for attaching the bracket to the rear panel of
the enclosure. Inverting the bracket offers three more configurations to choose from
and allows the loudspeaker to be tilted up instead of down (Figure 7). In addition,
the loudspeaker enclosure itself can be inverted, which doubles the total number of
mounting possibilities—exclusive of tilt—to 12.
An M6 eyebolt is included with the loudspeaker for attaching a safety tether, as may
be required by building codes in your jurisdiction. Attach the eyebolt securely to the
end mounting hole or to one of the unused ones.
The table below describes the pan range for different bracket positions and tilt angles.
AD-S402T Maximum Pan Range
Bracket
Position
0° tilt 5° tilt 10° tilt 15° tilt 20° tilt
Tilt bracket
removed
1
±55° ±55° ±55° ±54° ±54° N/A
2
±55° ±54° ±53° ±51° ±49° ±50°
3
±55° ±51° ±46° ±40° ±32° ±50°
4 (1 inverted)
±55° ±45° ±29° ±7° N/A N/A
5 (2 inverted)
±55° ±46° ±33° ±15° N/A N/A
6 (3 inverted)
±55° ±50° ±43° ±33° ±22° ±50°
Attaching the wall piece
Attach the wall piece to the wall or other mounting surface. Figure 8 is a full-size
template. Consult a structural engineer for guidance in selecting mounting locations
and appropriate fasteners.
73.0 mm
2.88 in
Position 1 or
92.9 mm
3.66 in
150.9 mm
5.94 in
Position 2 or
Position 3 or
— Figure 6 –
— Figure 7 —
3.35 in
85.0 mm
5.30 in
0.33 in
8.4 mm
×2
1.57 in
40.0 mm
Use 8 mm
or 5/16 in
screws
— Figure 8 —
NOTE:
To use Figure 8 as a template, print
this page at actual size (i.e., with no scaling).
