Quectel BG95 Series User Manual

LPWA Module Series
BG95 Hardware Design
BG95_Hardware_Design 37 / 80
V
IL
≤0.45V
VBAT
PWRKEY
50 0ms~10 00m s
RESET_N
STATUS
(DO)
Inactive
Act ive
USB
NOTE
Inactive
Act ive
UART
TBD
Typ. 2s
Typ. 2s

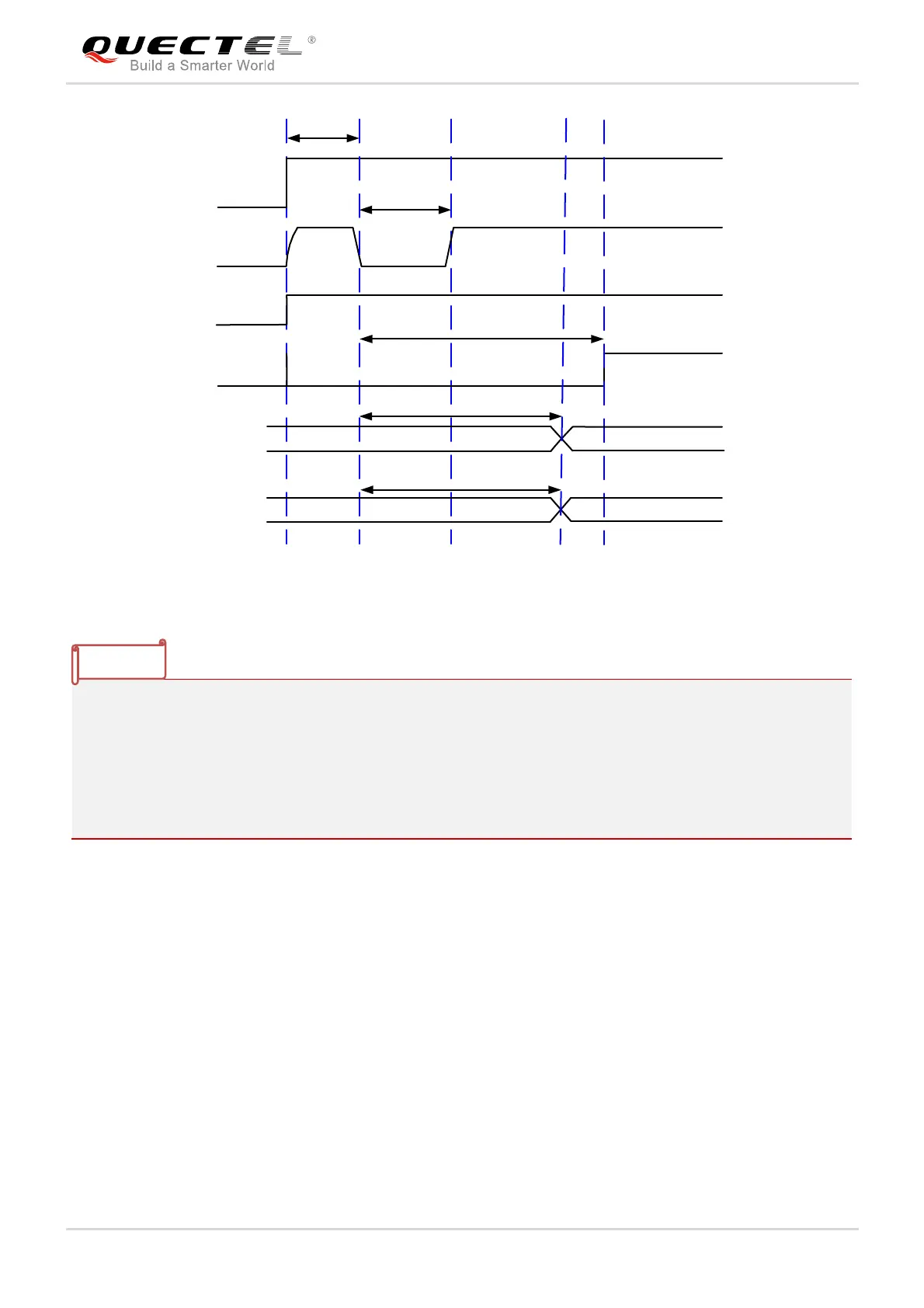

Figure 8: Timing of Turning on Module
1. Make sure that VBAT is stable before pulling down PWRKEY pin. The time between them is no less
than 30ms.
2. PWRKEY is internally pulled up to an internal voltage in the Qualcomm chipset, and its output voltage
is the internal voltage minus a diode drop in the chipset. Therefore, the expected output voltage of
PWRKEY is 1.5V.
3. PWRKEY should never be pulled down to GND permanently.
3.6.2. Turn off Module
Either of the following methods can be used to turn off the module:
 Normal power down procedure: Turn off the module using the PWRKEY pin.
 Normal power down procedure: Turn off the module using AT+QPOWD command.
3.6.2.1. Turn off Module Using the PWRKEY Pin
Driving the PWRKEY pin to a low level voltage for a duration between 650ms and 1500ms, the module
will execute power-down procedure after the PWRKEY is released.
NOTES

Quectel BG95 Series Specifications

General

Form Factor	LGA
Dimensions	23.6 mm × 19.9 mm × 2.2 mm
Operating Temperature	-40°C to +85°C
Storage Temperature	-45°C to +90°C
GNSS	GPS/GLONASS/BeiDou/Galileo/QZSS
SIM Interface	1.8V/3.0V
LTE-FDD Bands	B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
LTE-TDD Bands	B39
Data rates LTE Cat NB2	Uplink: 127 kbps, Downlink: 158.5 kbps
Data rates EGPRS	Up to 296 kbps DL / 236.8 kbps UL
Protocols	TCP/UDP/HTTP/HTTPS/MQTT/LWM2M/CoAP
Interfaces	UART
Certifications	CE/FCC/PTCRB/IC/NCC/RCM/CCC
