Chapter 2: Installation
67
D1004-1
Cabling

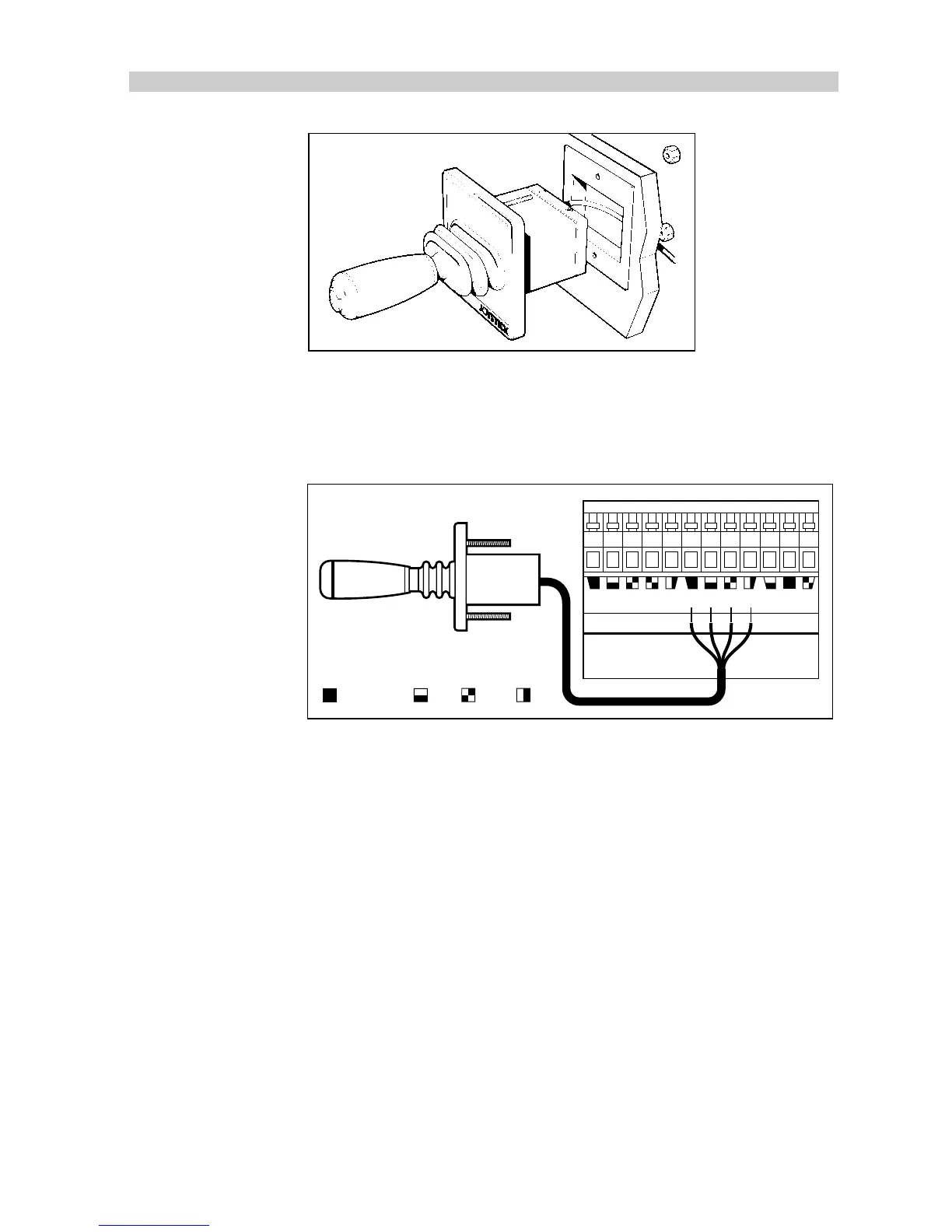

The Joystick is supplied with 26ft (8m) of cable which should be
connected to the course computer as shown.
D984-1
FLUXGATE
JOYSTICK GYRO
Grey (screen) BlueRed Green
Note: Only one joystick can be connected.
2.11 Masthead Transducer (sail only)
To enable wind information to be made available to the SeaTalk
system, the wind transducer must be connected to the NMEA
interface box.
