Raymarine G-Series User Manual

3.8SeaTalkconnection
TheSeaT alkconnectionisusedtoreceivedatafromRaymarine
SeaTalk-compatibledevices.
•Autopilot—thesystemcanreceiveanddisplaySeaT alkautopilot
informationandactasarepeatcontroller.
•Instruments—thesystemcanreceiveanddisplaydatafrom
SeaTalkinstruments(exampleincludewind,speed,ordepth
instruments).
•GPS—thesystemsupportstheconnectionofaSeaT alkGPS
receiver.AGPSreceiverisrequiredforthechartapplication.
SeaTalkandalarmconnection
ThealarmoutputandSeaT alkarecombinedintoasingleconnector,
whichincludesa12voltfusedpowersupply.
Thewiringmethodforthealarmdependsonwhetheryouwantto
connectjustthealarm,orotherSeaTalkdevicesaswell.

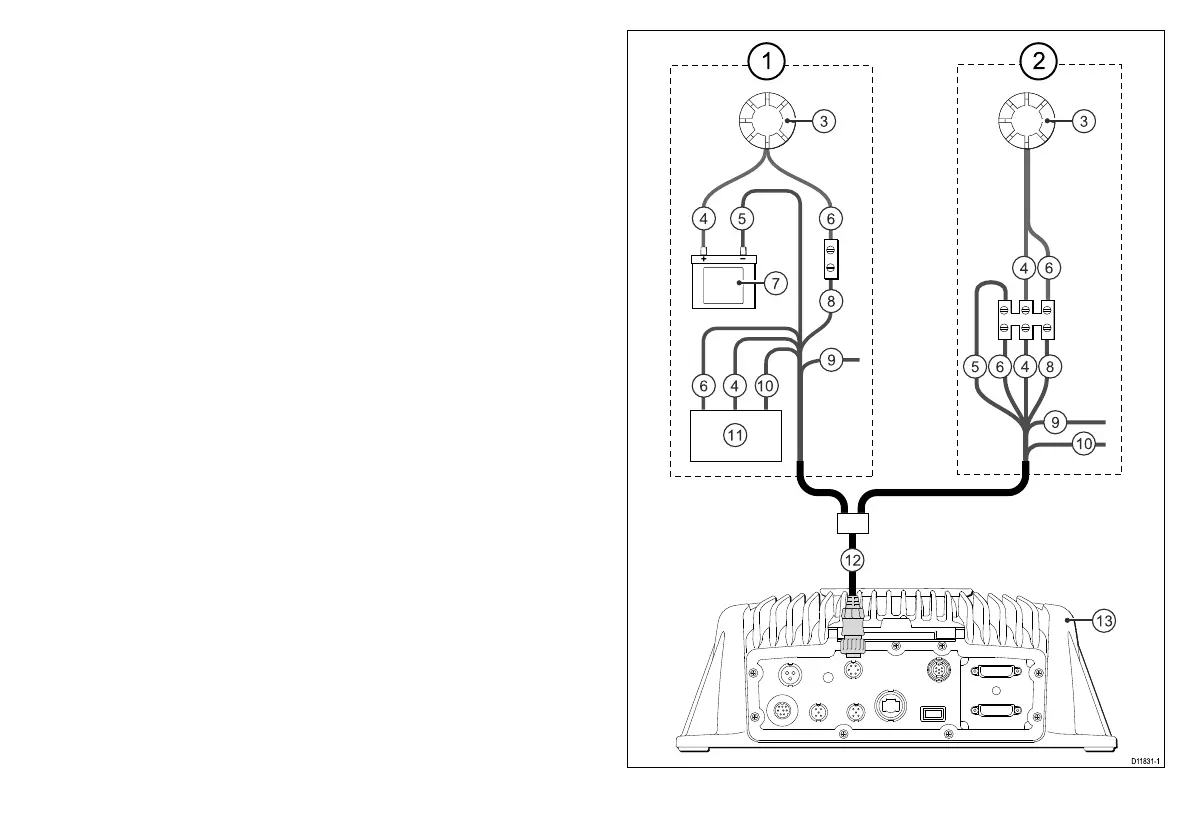

Thefollowingdiagramillustratesthe2wiringscenarios:
•ForsystemswithanalarmANDotherSeaT alkdevicesconnected
aswell—thiswiringmethodislabelled“1”inthediagram.
•Forsystemswithjustanalarmconnected—thiswiringmethod
islabelled“2”inthediagram.
D11831-1
1 2
5
4
4
6
12
3
6
8
9
6
4
10
11
5
6
4
8
9
10
3
13
7
Cablesandconnections67
