Hooking Up a CABLE, SATELLITE or DIGITAL SATELLITE SYS-
TEM to your antenna
Your cable, satellite, or Digital Satellite System can be directly connected
to the ANT200 allowing access to off-air local programming. By a simple
flick of a switch on the back of the antenna, you can switch from your
local off-air programming to cable, satellite or Digital Satellite System
programming.
A.To hook-up your cable, satellite, or Digital Satellite System to the
ANT200, connect the “OUT TO TV” cable from the system to the
connector marked “CABLE” on the antenna.

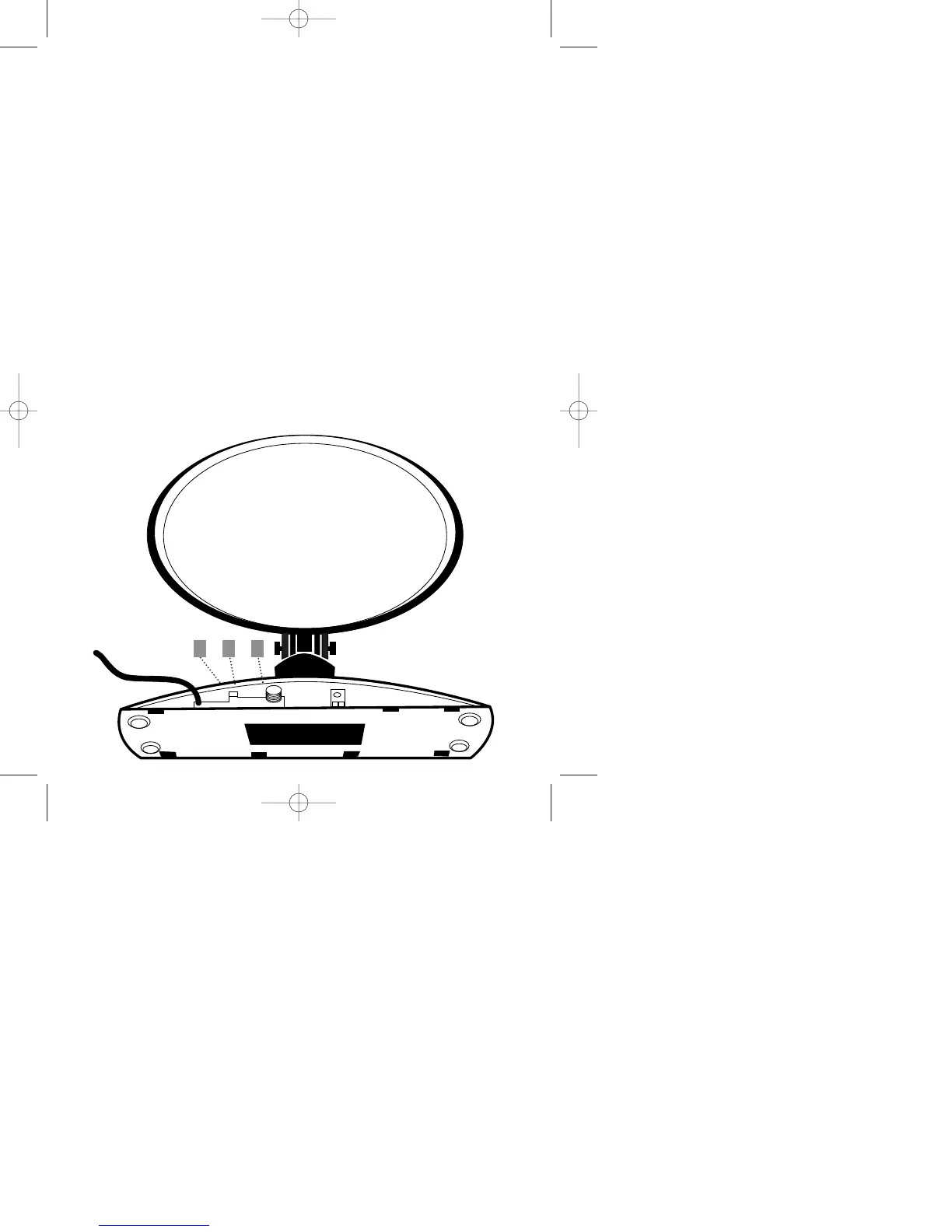

(see diagram)
B. When the switch is in the CABLE position, the signal from your
cable, satellite, or Digital Satellite System will pass through the
antenna to your TV or VCR without interference.
(see diagram)
C. When the switch is in the ANTENNA position, you will receive local
programming from off-air signals via the ANT200.
(see diagram)
ABC
ANT200 Manual 7/31/95 6/10/99 11:46 AM Page 5

RCA ANT200 Specifications

Antenna Features

retractable VHF dipoles	39"
UHF loop turn range	345°
amplifier gain	Up to 28 dB

Weight and Dimensions

dimensions	5.5” x 9.0” x 11.25”
weight	2.0 lbs
