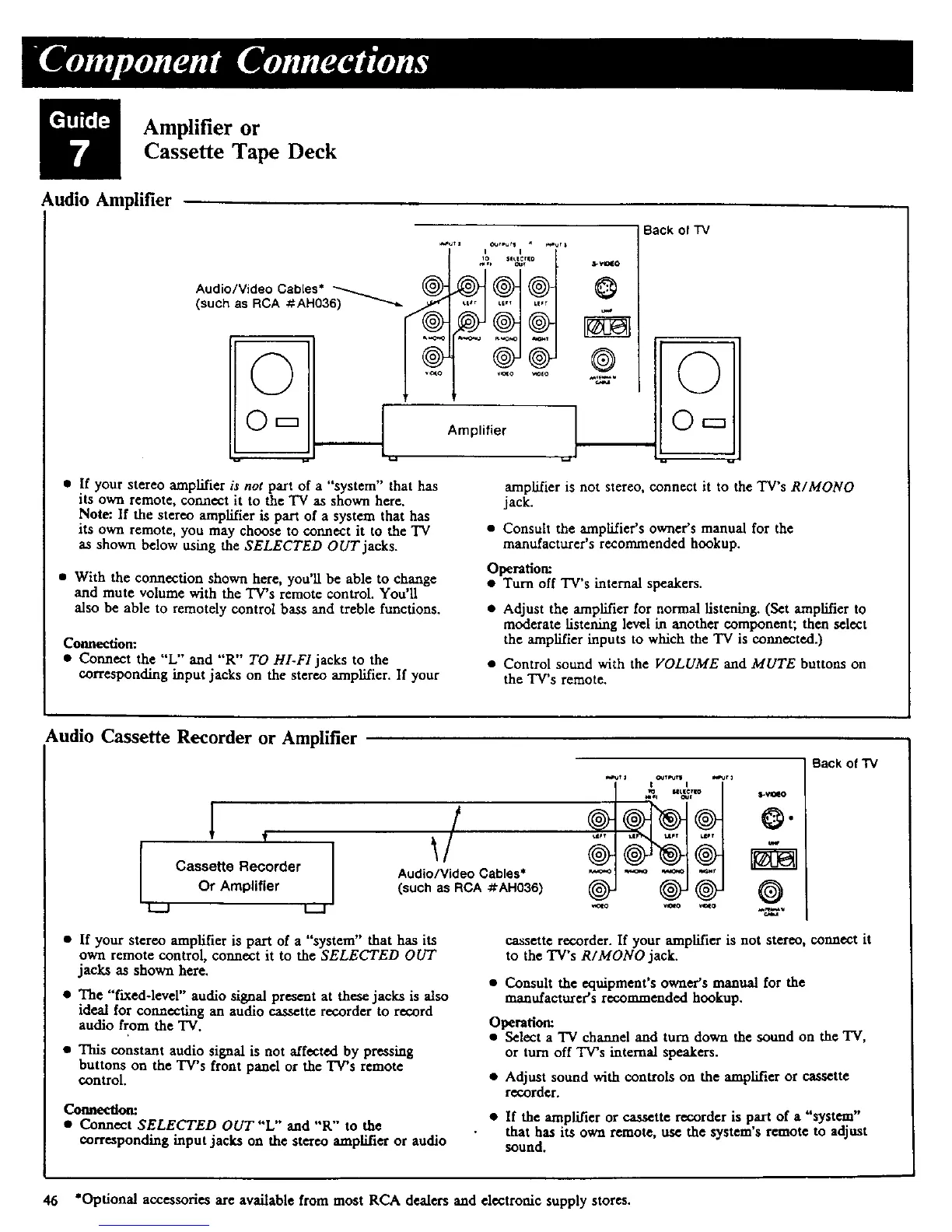

Amplifier or
Cassette Tape Deck
Audio Amplifier
Back ot TV
Audio/Video Cables" _ (_)4 _) _)
I ........ ®
©
• If your stereo amplifier is not part of a "system" that has
its own remote, connect it to the TV as shown here.
Note: If the stereo amplifier is part of a system that has
its own remote, you may choose to connect it to the TV
as shown below using the SELECTED OUT jacks.
• With the connection shown here, you'll be able to change
and mute volume with the TV's remote control. You'll
also be able to remotely control bass and treble functions.
Connection:
• Connect the "L" and "R" TO HI-Fljaeks to the
corresponding input jacks on the stereo ampLifier. If your
amplifier is not stereo, connect it to the TV's R/MONO
jack.
• Consult the amplifier's owner's manual for the
manufacturer's recommended hookup.
Operation:
• Turn off TV's internal speakers.
• Adjust the amplifier for normal listening. (Set amplifier to
moderate listening level in another component; then select
the amplifier inputs to which the TV is connected.)
• Control sound with the VOLUME and MUTE buttons on
the TWs remote.
Audio Cassette Recorder or Amplifier
Cassette Recorder
Or Amplifier
L._I I._...I
,/
Audio/Video Cables*
(such as RCA #AH036)
Back of "IV
=.VllalO
Q.
®
• If your stereo amplifier is part of a "system" that has its
own remote control, connect it to the SELECTED OUT
jacks as shown here.
• The "fixed-level" audio signal preaent at these jacks is also
ideal for connecting an audio cassette recorder to record
audio from the "IV.
• This constant audio signal is not affected by pressing
buttons on the TWs front panel or the TV's remote
control.
• Connect SELECTED OUT "L" and "R'" to the
corresponding input jacks on the stereo amplifier or audio
cassette recorder. If your amplifier is not stereo, connect it
to the TV's R/MONOjack.
• Consult the equipment's owner's manual for the
manufacturer's recommended hookup.
Operation:
• Select a TV channel and turn down the sound on the 'IV,
or turn off TV's internal speakers.
• Adjust sound with controls on the amplifier or cassette
recorder.
• If the amplifier or cassette recorder is part of a "system"
that has its own remote, use the system's remote to adjust
sound.
46 *Optional accessories are available from most RCA dealers and electronic supply stores.
To Next Page
