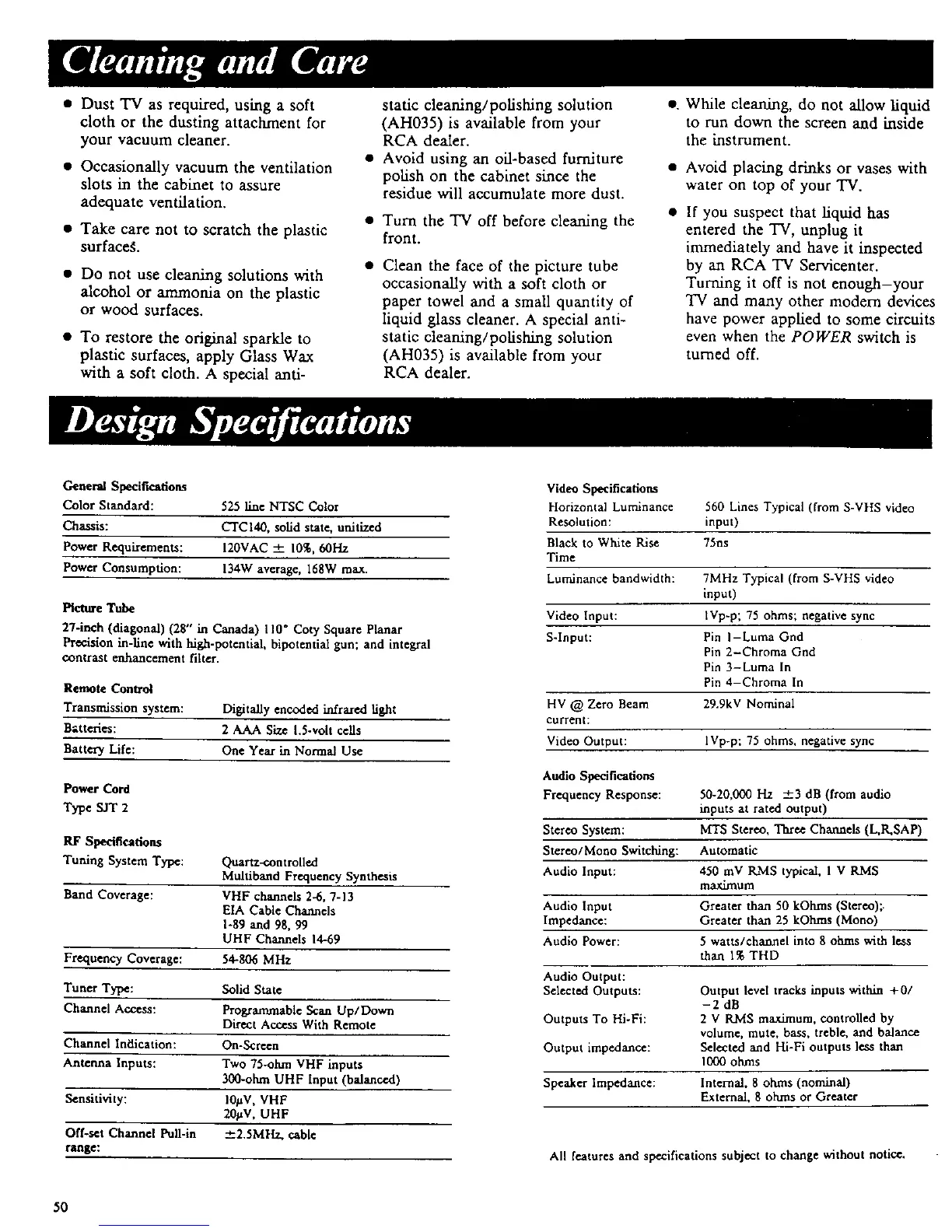

• Dust TV as required, using a soft
cloth or the dusting attachment for
your vacuum cleaner.
• Occasionally vacuum the ventilation
slots in the cabinet to assure
adequate ventilation.
• Take care not to scratch the plastic
surfaceg.
• Do not use cleaning solutions with
alcohol or ammonia on the plastic
or wood surfaces.
• To restore the original sparkle to
plastic surfaces, apply Glass Wax
with a soft cloth. A special anti-
static cleaning/polishing solution
(AH035) is available from your
RCA dealer.
Avoid using an oil-based furniture
polish on the cabinet since the
residue will accumulate more dust.
Turn the TV off before cleaning the
front.
Clean the face of the picture tube
occasionally with a soft cloth or
paper towel and a small quantity of
liquid glass cleaner. A special anti-
static cleaning/polishing solution
(AH035) is available from your
RCA dealer.
While cleaning, do not allow liquid
to run down the screen and inside
the instrument.
Avoid placing drinks or vases with
water on top of your TV.
If you suspect that liquid has
entered the TV, unplug it
immediately and have it inspected
by an RCA TV Servicenter.
Turning it off is not enough-your
TV and many other modern devices
have power applied to some circuits
even when the POWER switch is
turned off.
General Specifications
Color Standard:
Chassis:
Power Requirements:
Power Consumption:
525 line NTSC Color
CTCI40, sofid state, unitized
120VAC -4- 10%, 60I-lz
134W average, 168W max.
Picture Tube
27-inch (diagonal) (28" in Canada) 110" Coty Square Planar
Precision in-line with high-potential, bipotential gun; and integral
contrast enhancement filter.
Remote Control
Transmission system: Digitally encoded infrared light
Batteries: 2 AAA Size 1.5.volt cells
Battery Life: One Year in Normal Use
Power Cord
Type SJT 2
RF Specifications
Tuning System Type: Quartz-controlled
Multiband Frequency Synthesis
Band Coverage: VHF channels 2-6. 7-13
EIA Cable Channels
1-89 and 98, 99
UHF Channels 14-69
Frequency Coverage: 54-806 MHz
Tuner Type: Solid State
Channel Access: Programmable Scan Up/Down
Direct Am With Remote
Channel Indication: On-Screen
Antenna Inputs: Two 75-ohm VHF inputs
300-ohm UHF Input (balanced)
Sensitivity: 10_.V, VHF
20fxV, UHF
Off-stt Channel Pull-in _2.5MHz, cable
range:
Video Specifications
Horizontal Luminance
Resolution:
Black to White Rise 75ns
Time
Luminance bandwidth: 7MHz Typical (from S-VHS video
input)
Video Input: IVp-p; 75 ohms; negative sync
S-Input: Pin I-Luma Gnd
Pin 2-Chroma Gnd
Pin 3-Luma In
Pin 4-Chroma In
HV @ Zero Beam 29.9kV Nominal
current:
Video Output: IVp-p; 75 ohms, negative sync
Audio Slmcificatlons
Frequency Response: 50-20,000 1-12 +3 dB (from audio
inputs at rated output)
Stereo System: MTS Stereo, Three Channels (L,R, SAP)
Stereo/Mono Switching: Automatic
Audio Input: 450 mV RMS typical, 1 V RaMS
maximum
Audio Input Greater than 50 kOhms (Stereo);.
Impedance: Greater than 25 kOhms (Mono)
Audio Power: 5 watts/channel into 8 ohms with less
than 1% THD
Audio Output:
Selected Outputs: Output level tracks inputs within +0/
-2 dB
Outputs To Hi-Fi: 2 V RaMS maxamum, controlled by
volume, mute, bass, treble, and balance
Output impedance: Selected and Hi-Fi outputs less than
I000 ohms
Speaker Impedance: Internal. 8 ohms (nominal)
External. 8 ohms or Greater
560 Lines Typical (from S-VHS video
input)
All features and specifications subject to change without notice.
