Chapter 1: Connections and Setup
In from cable
or antenna
TV
The back of your TV might look
different than the one pictured here.
To watch one program while you record another:
Tune the TV to its Input 1 channel or Vid 1 channel
Tune the DVD recorder to the channel you want to record, and press RECORD.
Use the buttons on the TV (or the TV’s remote control*) to tune the TV to the channel you want to
watch. For example, change the channel on the TV to channel 8 to watch a program on channel 8.
To play a disc: Tune the TV to its Input 1 channel or Vid 1 channel.
If you need help fi nding your TV’s various Video Input Channels, go to page 19.
* The remote control packed with your DVD recorder is capable of being programmed to operate many brands and models of TVs and VCRs.
For instructions, go to page 22. If the remote operates your TV, press TV and INPUT to access the Video Input Channel.
Details about the different kinds of cables used to connect your DVD recorder are on page 4.

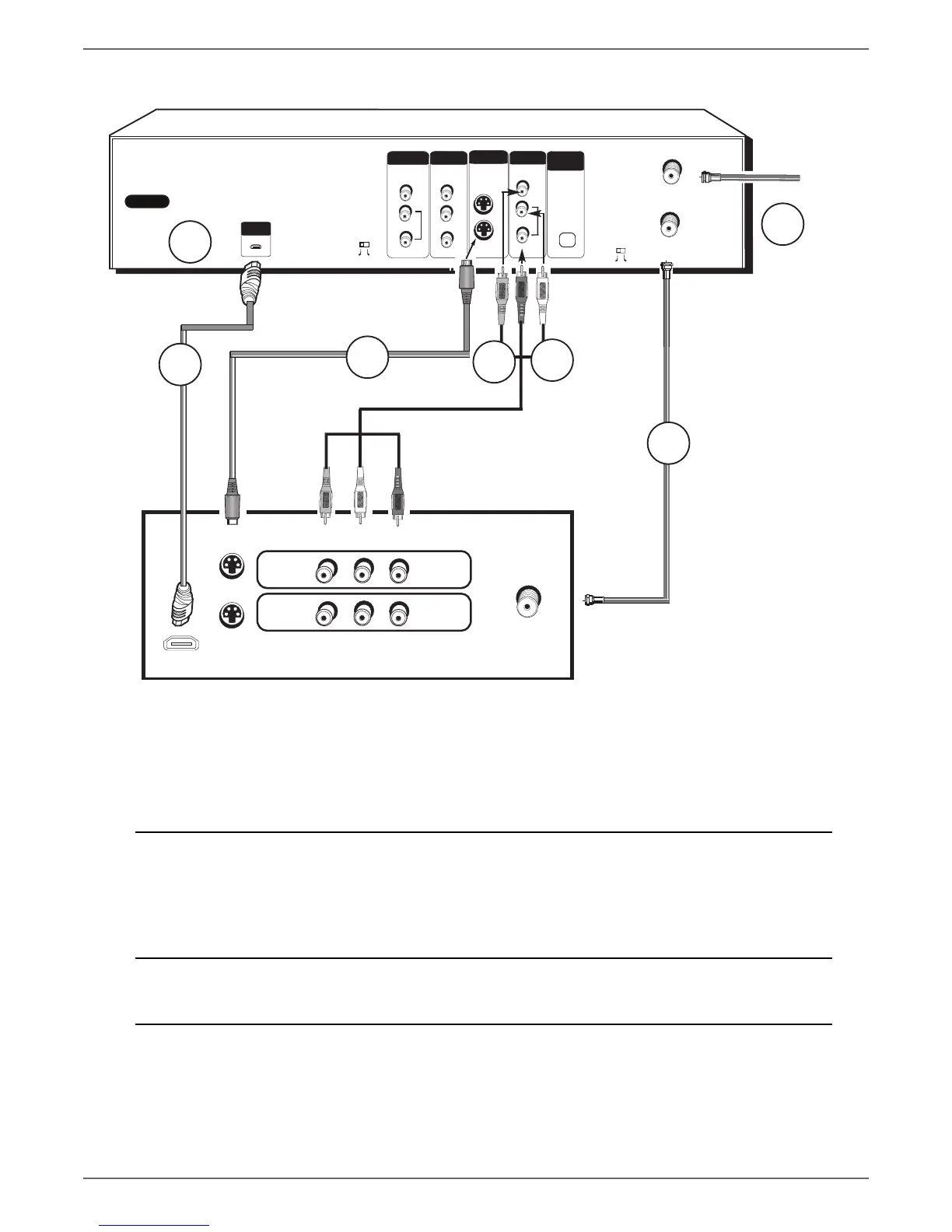

DVD recorder + TV
