User Interface

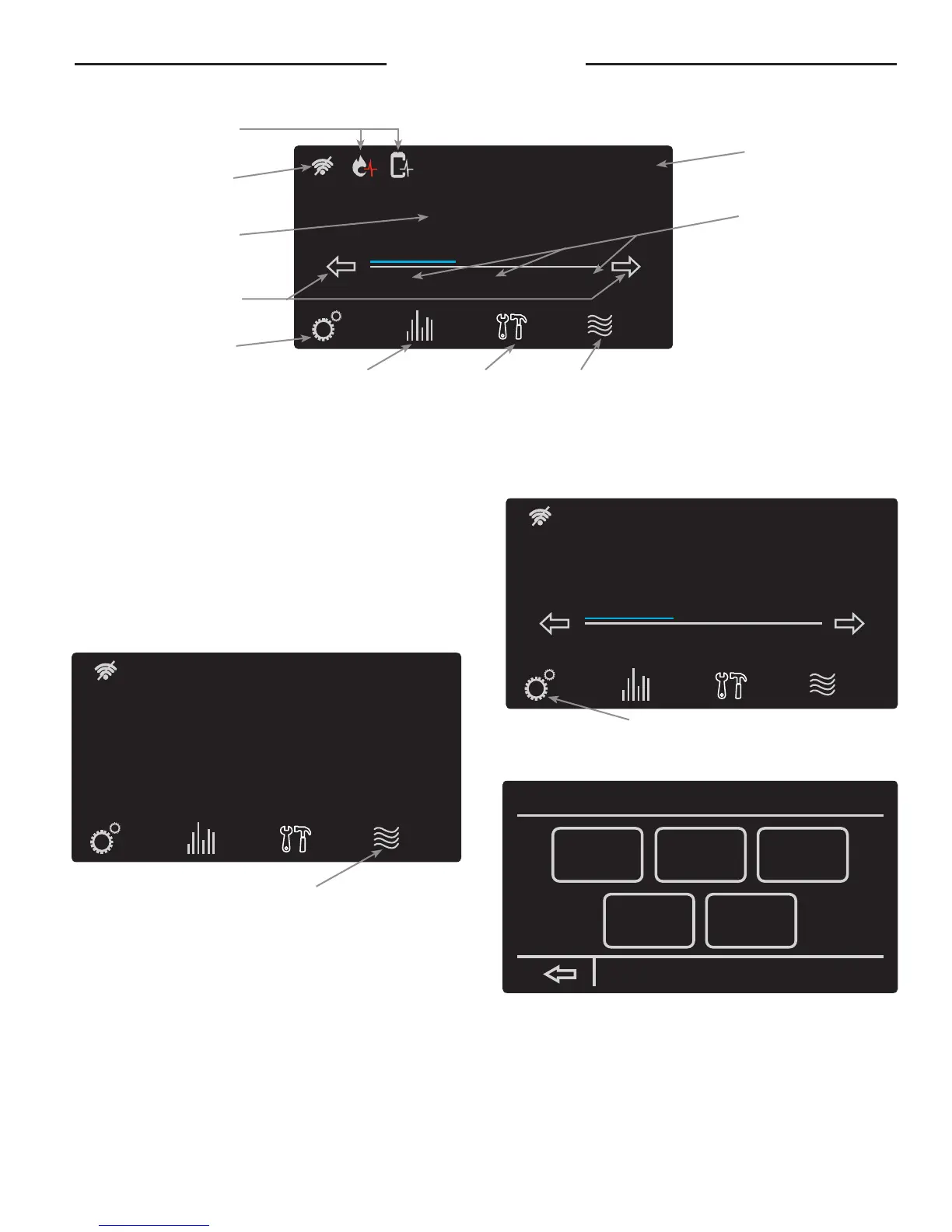

NAVIGATING THE HOME SCREEN:
Status: Standby
StatusSettings
warm hot very hot
Disable
120°
Service
Operating Status
Setting Menu
Button
Status Button Service
Menu Button
Enable/Disable
Button
Rapid Temperature
Adjustment
Wifi Indicator
and Settings
Health Indicator
Icons
Temperature
Setting
Temperature
Adjustment
Startup
Once power is applied to the water heater and the On
button is pressed, the Startup Wizard on the LCD will
go over the below features:
1. Setting of Time and Date
2. Setting Hours of Operation for the business
3. Wifi Setup
Follow the on-screen instructions to complete setup.
Some of these items can be skipped if a later setup
is desired.
Enabling (turning on) the Unit
Temperature Adjustment
Tank temperature will be maintained according to the
setting on the home screen. If the water temperature
setting needs adjustment, use the arrows on the display
to select desired temperature.
The display also has a rapid temperature adjustment
feature that corresponds to the below temperature set-
tings.
Warm: 110°F
Hot: 140°F
Very hot: 180°F
Touching the text ‘warm’, ‘hot’, or ‘very hot’ will adjust
the temperature to the above temperature setting.
Setting Menu
The settings function on the water heater display allows
access to the basic settings, configurations, schedules,
bacnet, and the time/date.
Status: Standby
Water Heater Disabled
StatusSettings Enable
Service
Press the enable button to
turn the water heater on
Pressing the settings button will
allow access to water heater settings
Status: Standby
StatusSettings
warm hot very hot
Disable
120°
Service
settings
wifi setup
bacnet time/date
basic configs configs
To Next Page
