HEAT PUMP AND TANK ASSEMBLY
28
26. Positioning of Water Heater: Complete final positioning of the water
heater.
Ensure the heat pump module is firmly seated on the level slab or solid
base.
27. Water Connections: Connect the cold water supply and the hot water
pipe work to the water heater.
Connect the temperature pressure relief valve and its drain line.
Refer to “Connections – Plumbing” in the Owner‟s Guide and
Installation Instructions supplied with the storage tank.
28. Water Supply: Turn on the cold water supply and fill the water heater.
Check the pipe work and the connection points for the flexible braided
hoses for leaks
Refer to “To Fill And Turn On The Water Heater” on page 32,
however the electrical supply should not be turned on at this stage.

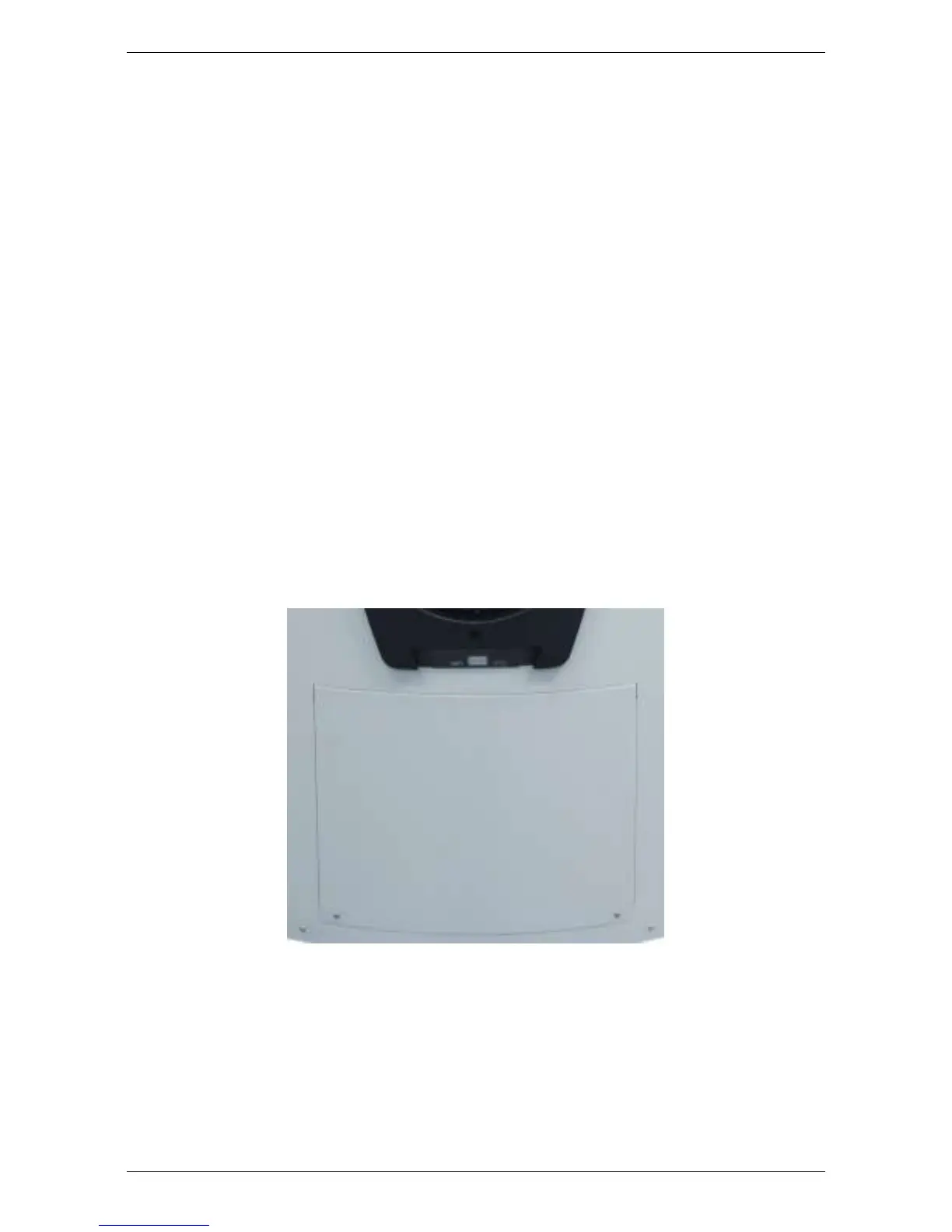

29. Heat Pump Module Cover: Replace the heat pump module cover and re-
fit the two screws.
Step 29
replace heat pump module front cover
To Next Page
