General
INSTALLATION INSTRUCTIONS
Water Heater Installation (cont.)

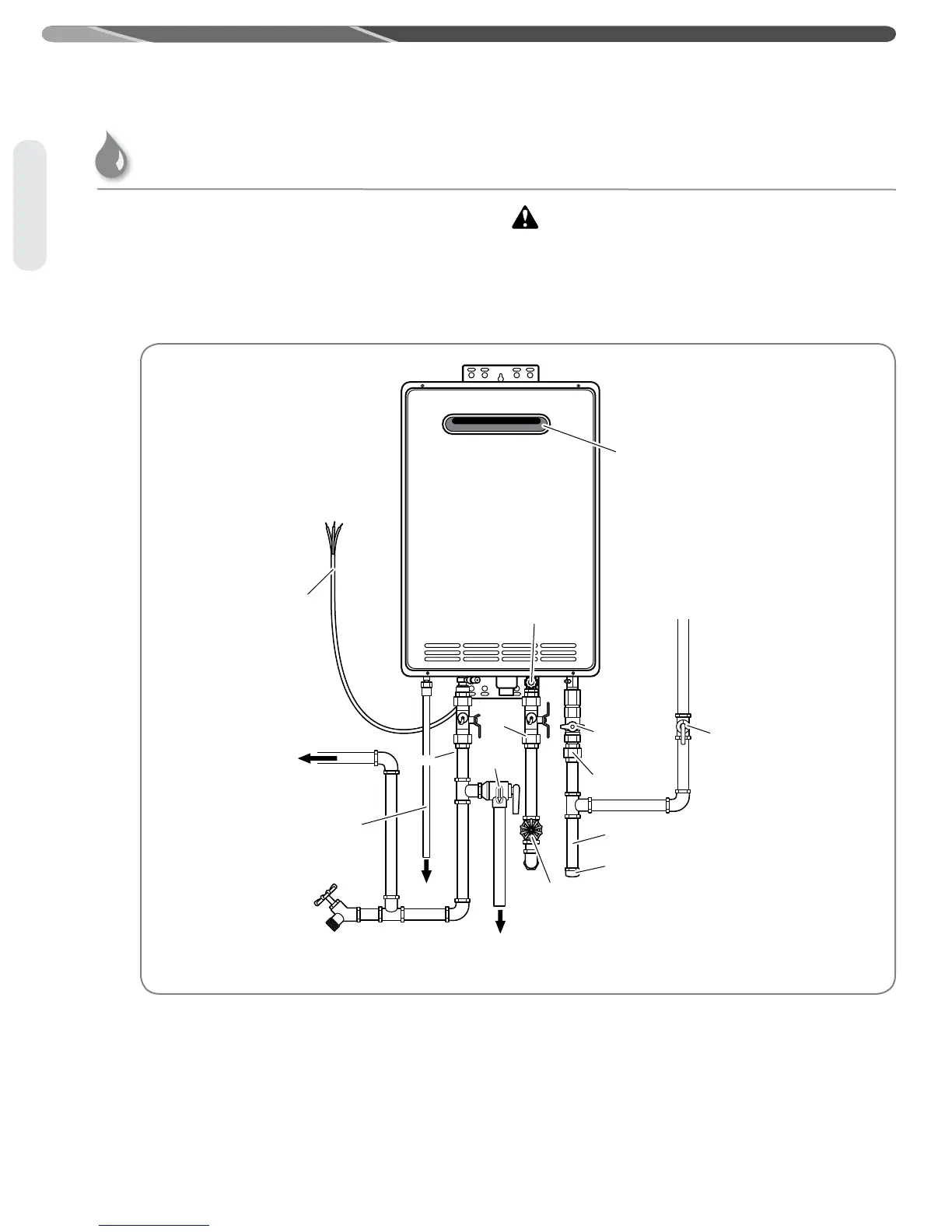

Typical Installation of
Outdoor Water Heater
(No Venting Required)
This water heater is for OUTDOOR
installation only.
*Note: A flexible drain tube can be used
To Suitable
Drain
To Suitable
Drain
To Hot Water
Faucet(s)
Drain Valve
Cold Water Supply
Shut-Off Valve
Hard-Wire
Union
Manual Gas
Supply Line
Shut-Off Valve
Flue
Terminal
Cap
Sediment Trap
Manual Gas
Shut-Off Valve
Water
Filter
Union
Union
Service
Valve
Service
Valve
Relief
Valve
Relief
Valve
Condensate
Drain*
WARNING: DO NOT install this water
heater indoors or in an enclosure. It is designed for
outdoor installation only. Any other type of installation
can result in death, personal injury, and/or damage to
the product or property.
