Chapter7

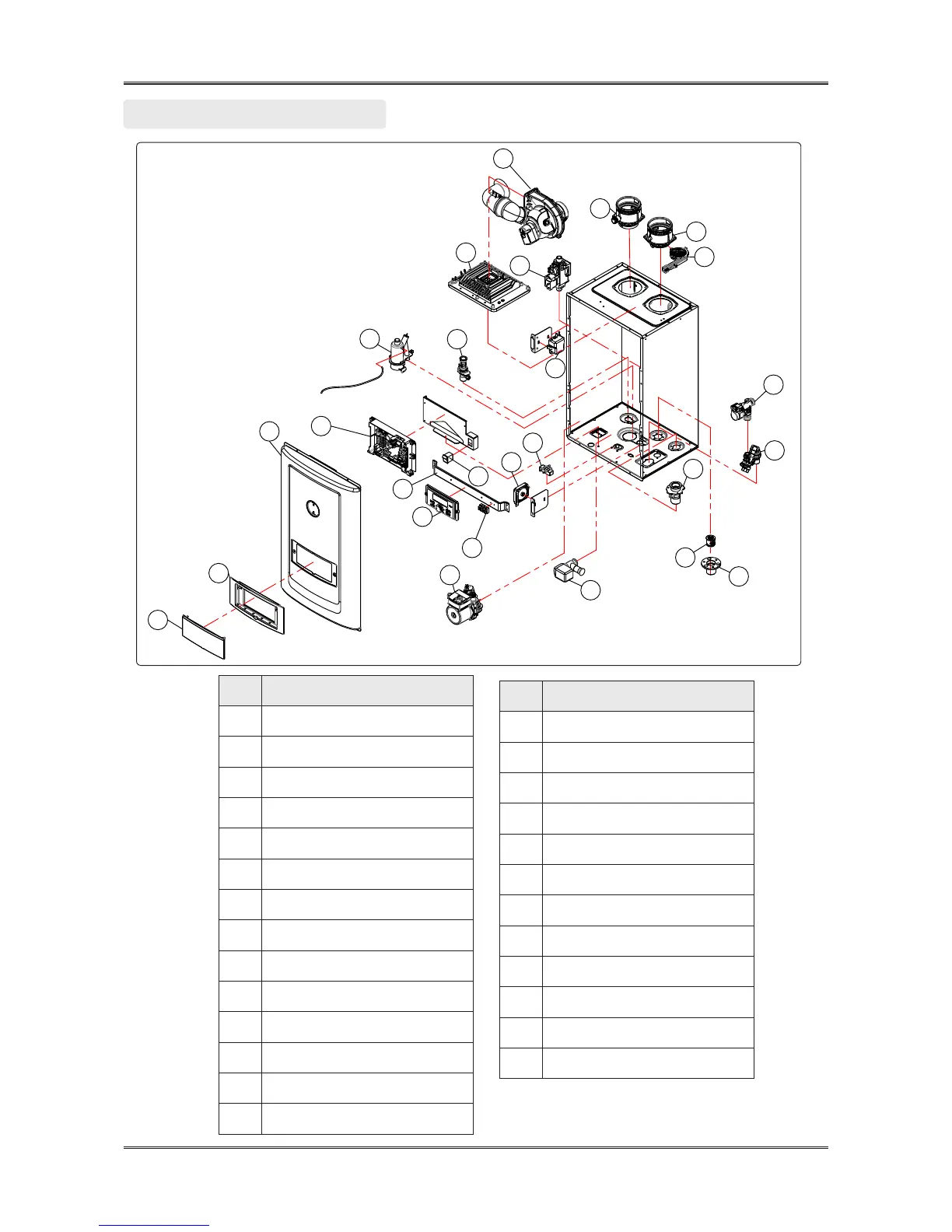

Components Diagram
PART I _ CASE PART
22
10
19
20
21
11
12
23
3
2
14
15
13
6
18
17
16
1-2
1-1
1
24
8
9
7
4
5
Ref # Description
1.
Front Cover
1-1.
Control Panel Bracket
1-2.
Control Panel Window
2.
PCB
3.
Control Panel
4.
Circulation Pump
5.
Mixing Valve
6.
Igniter
7.
Gas Valve Assembly
8.
Burner Assembly
9.
Blower & Silencer
10.
Flow Control Valve
11.
Air Pressure Switch
12.
Water Leak Detector
Ref # Description
13.
Hot Water Pipe Assembly
14.
Rocker Switch
15.
Condensate Trap
16.
Exhaust Assembly
17.
Air Intake Assembly
18.
Air Intake Filter
19.
Cold Water Valve Assembly
20.
Recirculation Return Connection
21.
Check Valve
22.
Gas Inlet Connection
23.
Control Panel Steel Bracket
24.
Terminal Block
