20 June 2005 LASER UNIT
3-27
Replacement
Adjustment

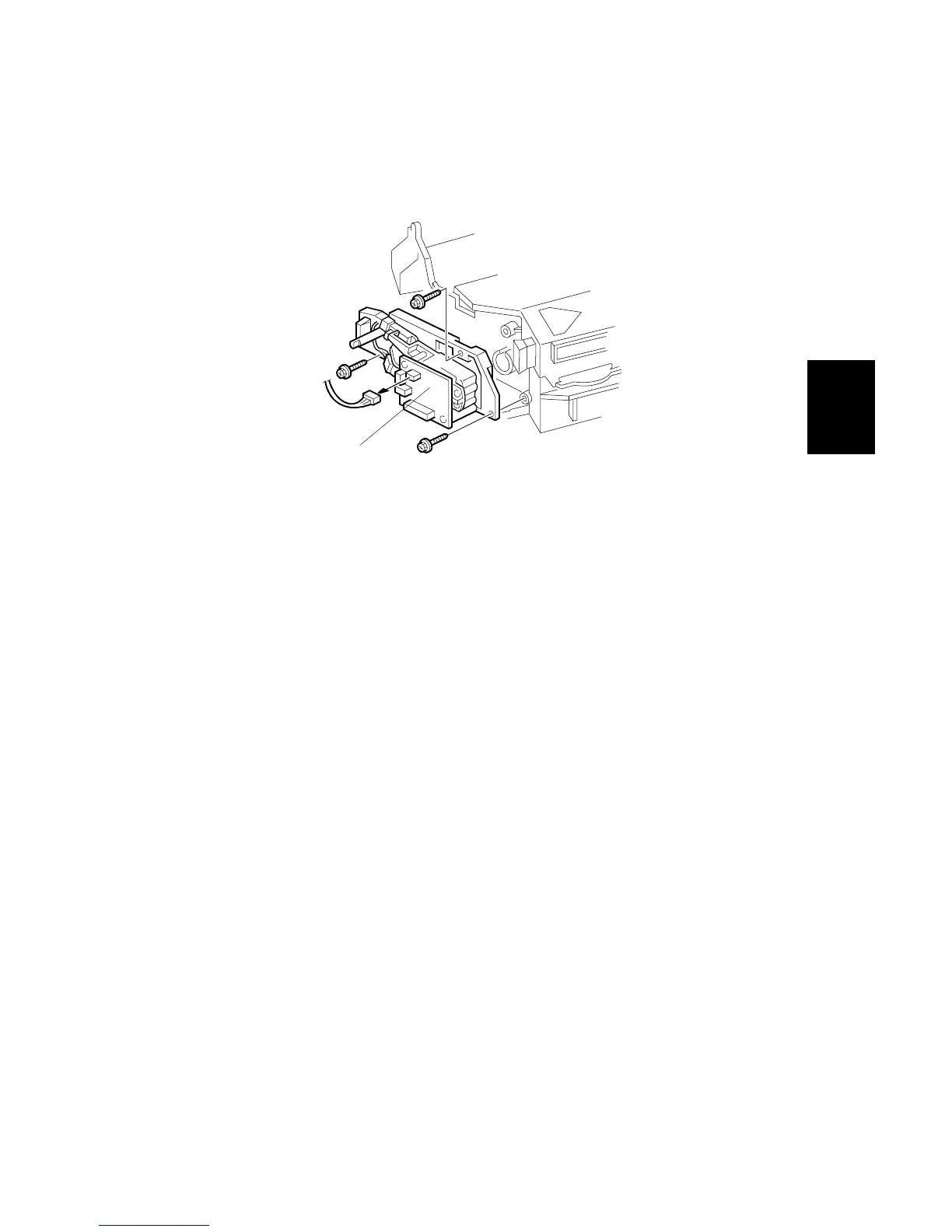

3.10.5 LD UNIT
1. Laser unit ( 3.10.2)
2. LD unit [A] ( x3,  x1)
NOTE: To avoid damaging the LD board, hold it securely when disconnecting
the connectors. Hold the laser unit casing.
3. After replacing the LD board, perform SP 2-109 to adjust the laser beam pitch
(described on the next page).
B195R513.WMF
[A]
