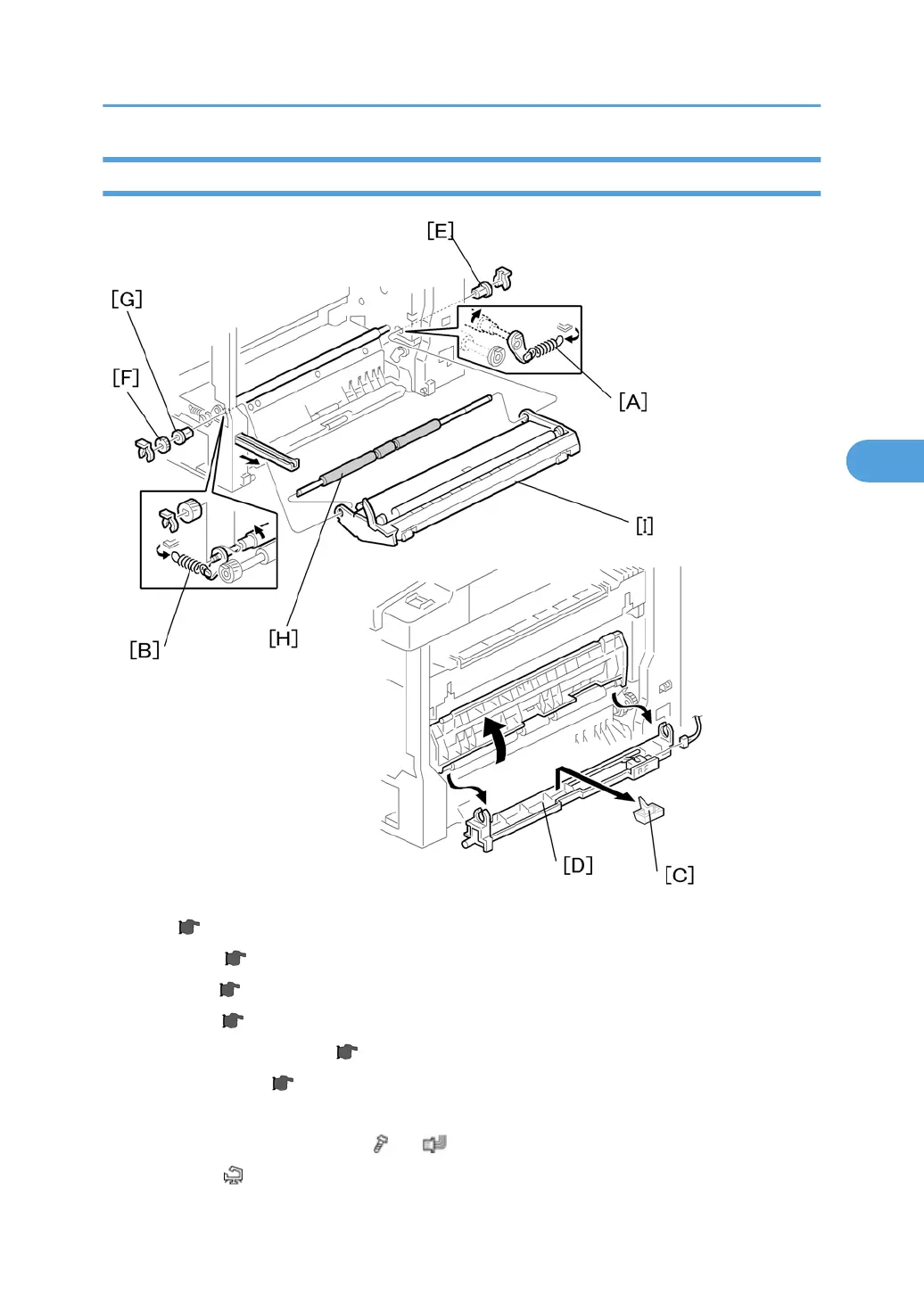

Registration Roller
1. PCU ( p.101)
2. Front cover ( p.79)
3. Right door ( p.81)
4. Rear cover ( p.76)
5. High-voltage power supply ( p.133)
6. Registration clutch ( p.115)
7. Unhook the springs [A] and [B] at the rear and front sides.
8. Guide support [C] and guide [D] ( x 1, x 1)
9. Bushing [E] ( x 1)
Paper Feed Section
113
4
