Scanner -1
D009/D011/D012/D013/D091/D092 4-10 SM

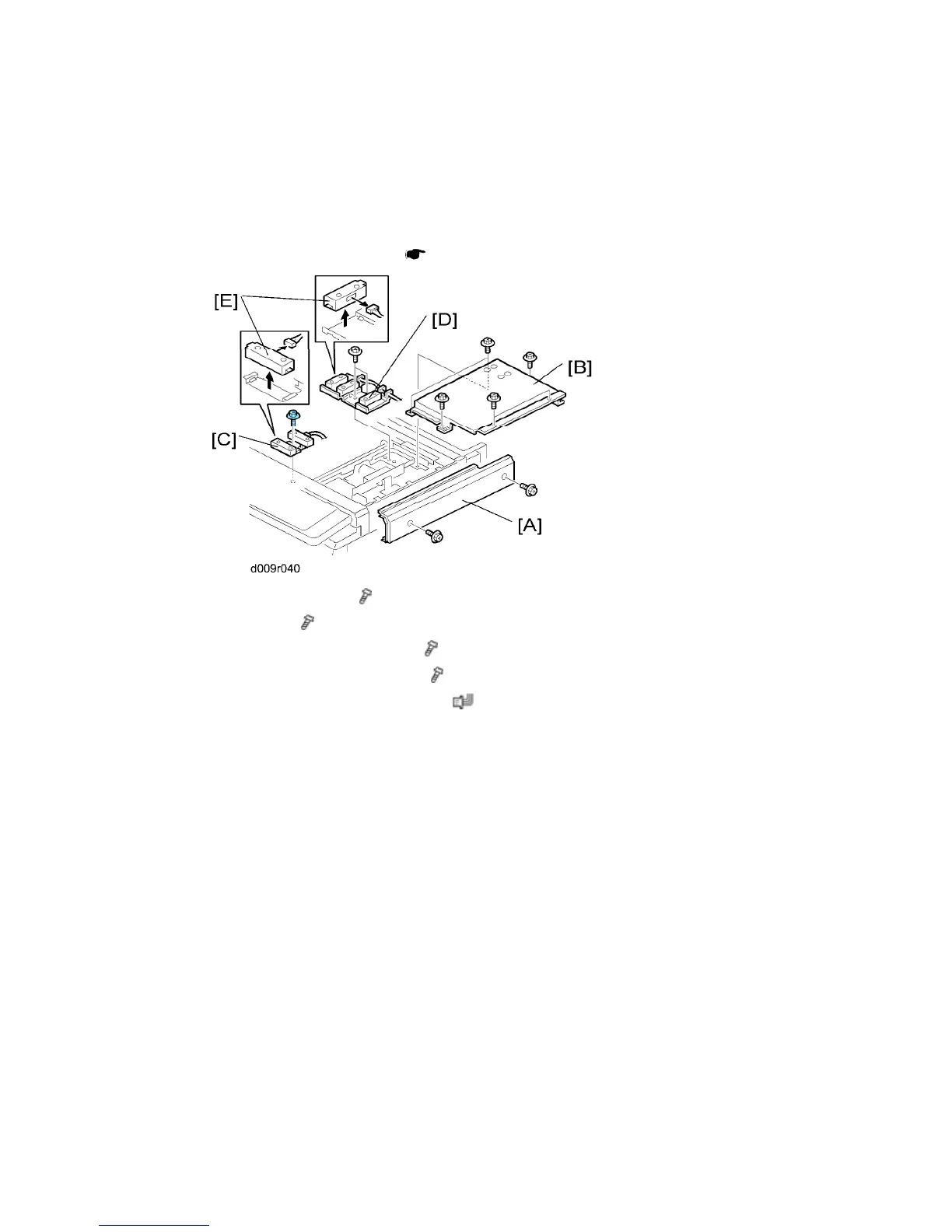

4.4.2 ORIGINAL LENGTH/WIDTH SENSORS
Monochrome Scanner Model (D009/D012)
1. Exposure glass with left scale ( p.4-9)
2. Scanner right cover [A] (
x 2)
3. Lens cover [B] (
x 2)
4. Original width sensor bracket [C] (
x 1)
5. Original length sensor bracket [D] (
x 2)
6. Original width and length sensors [E] (
x 1 each)
