D009/D011/D012/D013/D091/D092 4-92 SM
installation procedure for "p.2-93 "HDD Encryption Unit"".
3. Turn the main power switch off/on.

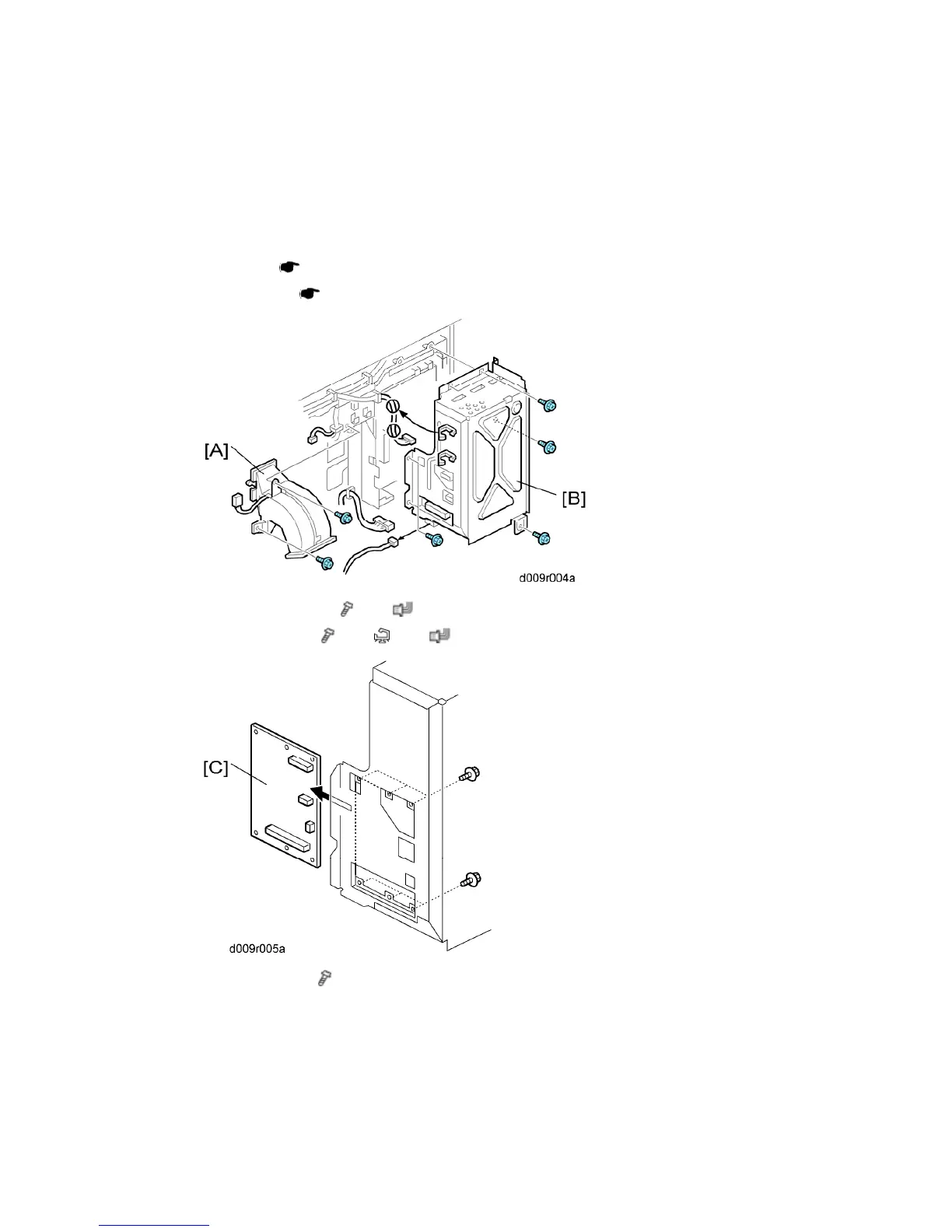

4.16.4 MOTHER BOARD
1. Rear cover ( p.4-4)
2. Controller unit (
p.4-88)
3. Exhaust fan duct [A] (
x 2, x 1)
4. Controller box [B] (
x 6, x 2, x 3)
5. Mother board [C] (
x 6)
