Electrical Components
D009/D011/D012/D013/D091/D092 4-96 SM
When installing the fusing exhaust fan
Make sure that the fusing fan is installed with its decal facing the right side of the machine.

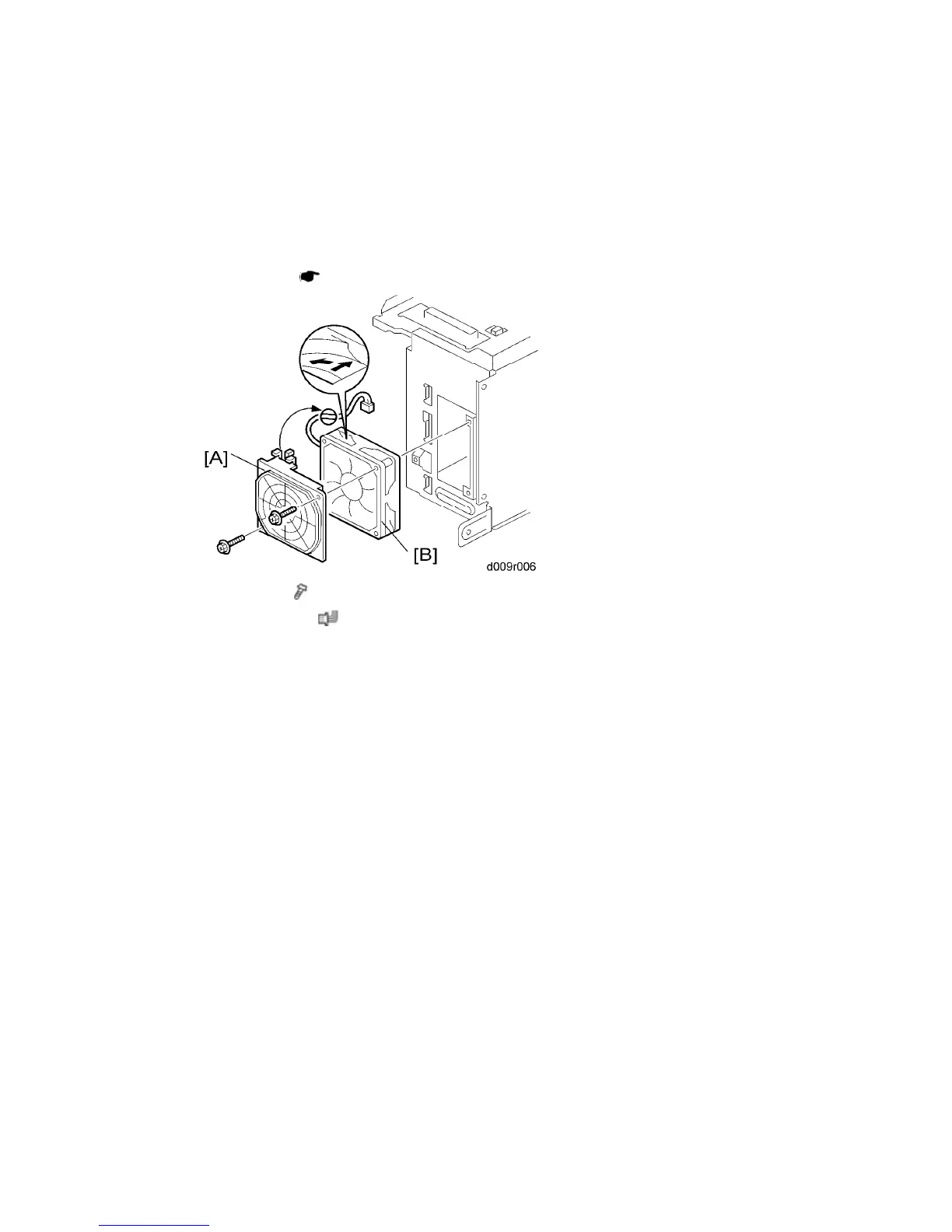

4.16.10 CONTROLLER FAN
1. Controller box ( p.4-92)
2. Fan cover [A] ( x 2)
3. Controller fan [B] (
x 1)
When installing the controller fan
Make sure that the controller fan is installed with its decal facing upward.
To Next Page
