4.17 COPY ADJUSTMENTS
4.17.1 OVERVIEW
Perform these adjustments after replacing any of the following:
 Scanner Wire
 Lens Block/SBU Assembly
 Scanner Drive Motor
 Polygon Mirror Motor
 Paper Side Fence
 Memory All Clear
4.17.2 PRINTING
1. Make sure paper is installed correctly in each paper tray before you start these
adjustments.
2. Use the Trimming Area Pattern (SP2-109-1, No. 14) to print the test pattern for the
following procedures.
Registration - Leading Edge/Side-to-Side

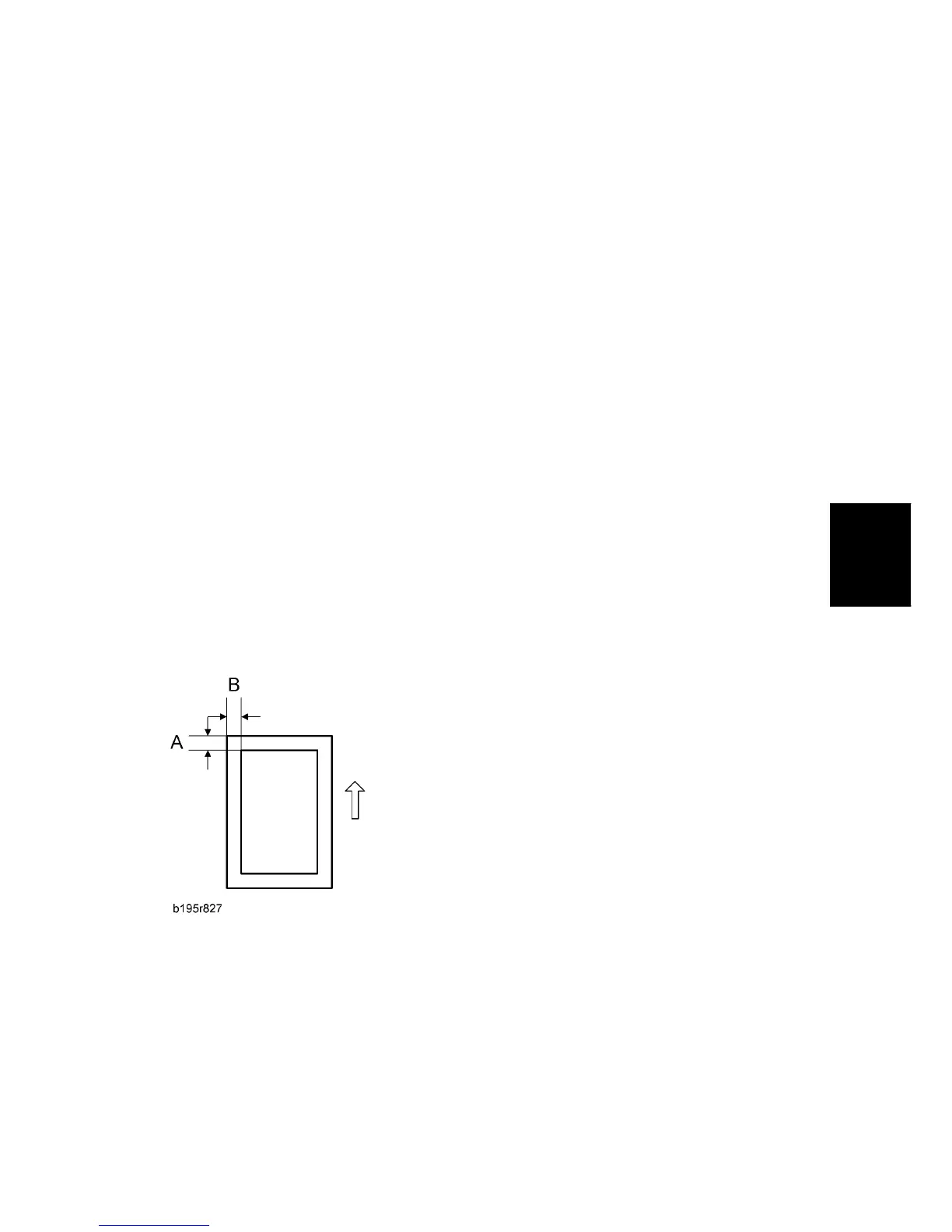

1. Check the leading edge registration [A] for each paper type and paper feed station,
and adjust it with following SP modes.
To Next Page
