Ricoh D009 User Manual

Copy Adjustments
D009/D011/D012/D013/D091/D092 4-102 SM
Registration: Platen Mode
1. Place the test chart on the exposure glass and make a copy from one of the feed
stations.

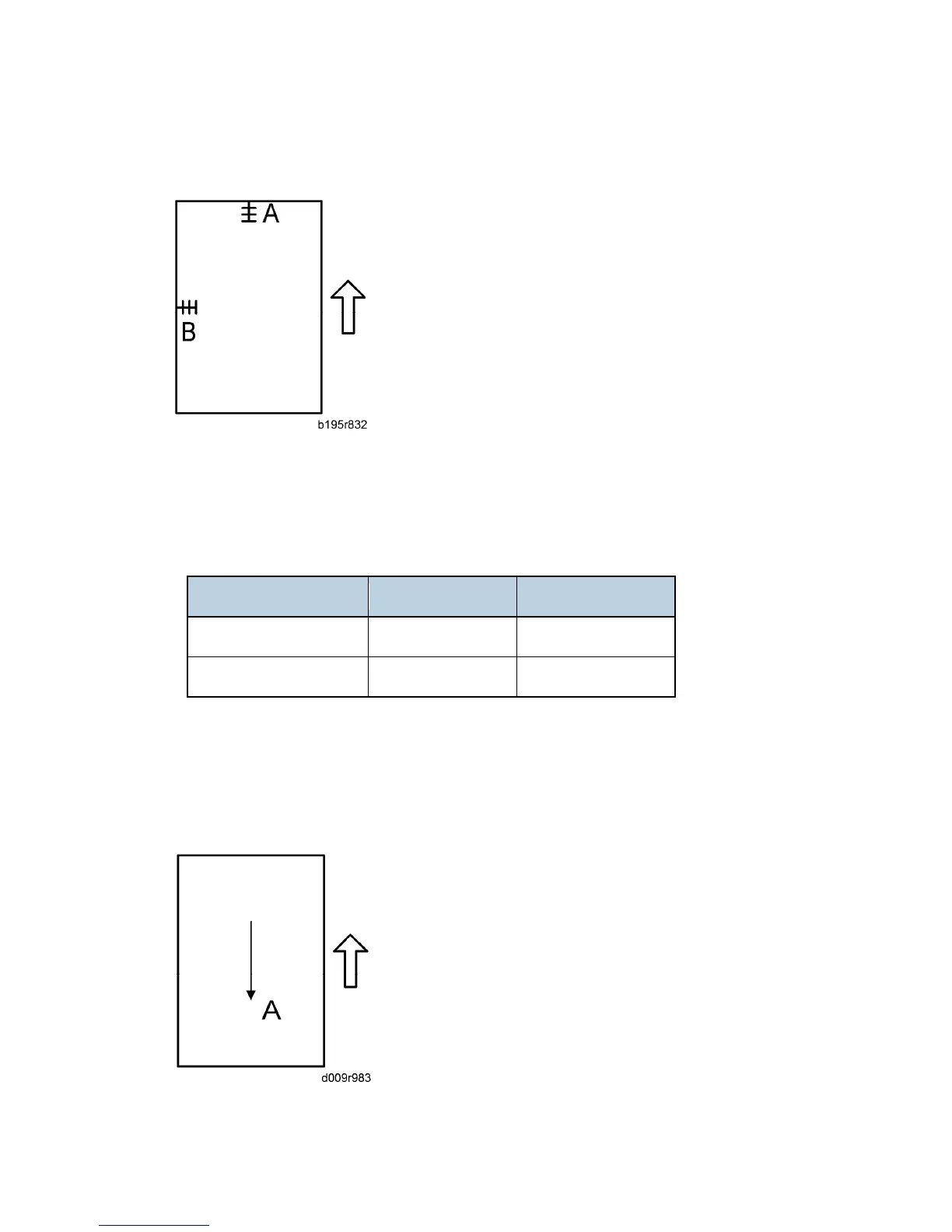

2. Check the leading edge [A] and side-to-side [B] registration, and adjust them with the
following SP modes if necessary.
SP No. Specification
Leading Edge SP4-010-1 0 ±2.0 mm
Side-to-side SP4-011-1 0 ±2.5 mm
Magnification
Use the S5S test chart to perform the following adjustment.
Sub Scan Magnification
