D017/D018/D019/D020/D084/D085 4-63 SM
Replacement
and
Adjustment

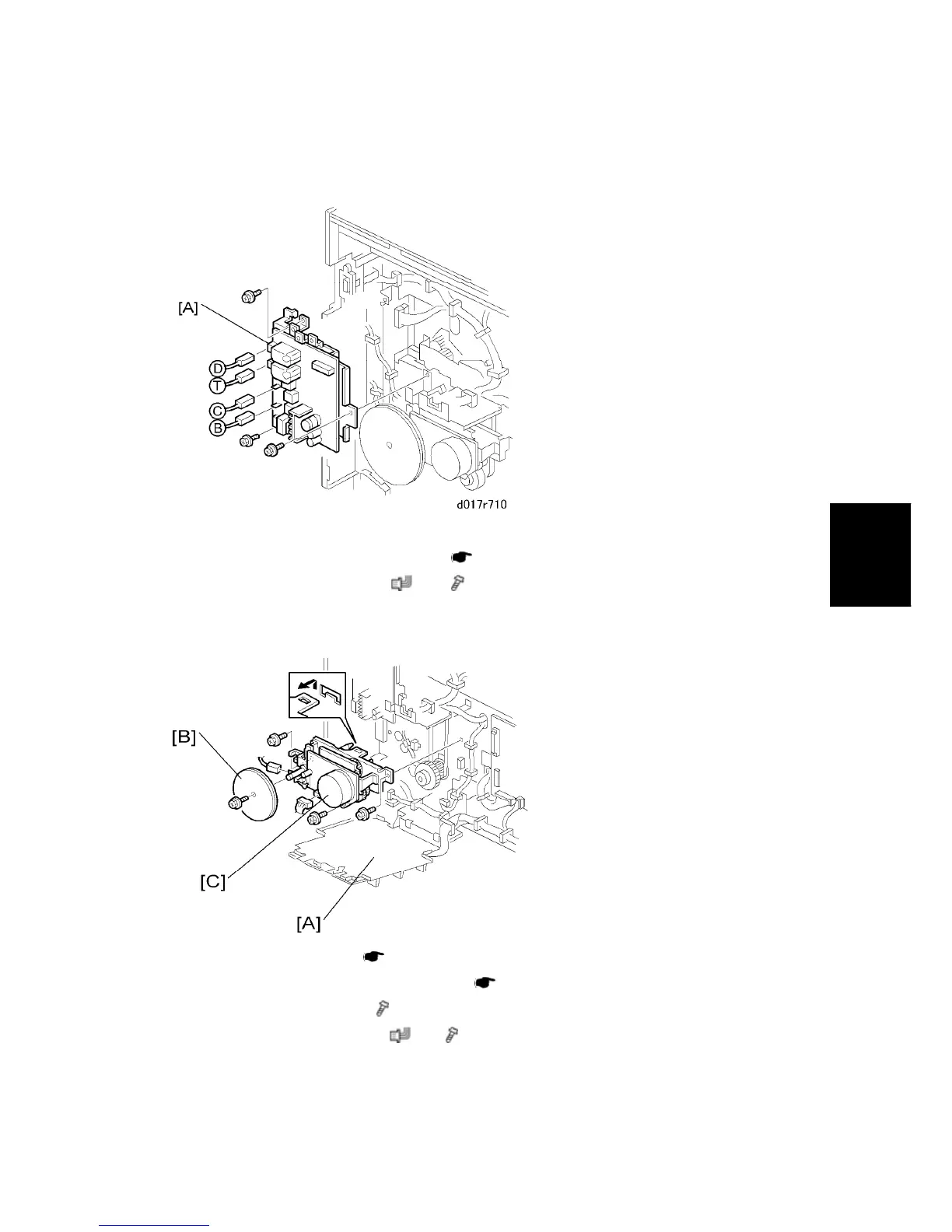

4.9.4 POWER PACK
1. Remove the rear cover.
2. Swing down the BCU board bracket. (
p.4-50 "Paper Feed Clutches")
3. Remove the power pack [A] (
x 4, x3).
4.9.5 MAIN MOTOR
1. Remove the rear cover. ( p.4-48 "Paper Tray Lift Motors")
2. Swing down the BCU board bracket [A]. (
p.4-50 "Paper Feed Clutches")
3. Remove the flywheels [B] (
x1).
4. Replace the main motor [C] (
x2, x3).
