Punch Unit (D390)
D037/D038/D040/D041 2-56 SM

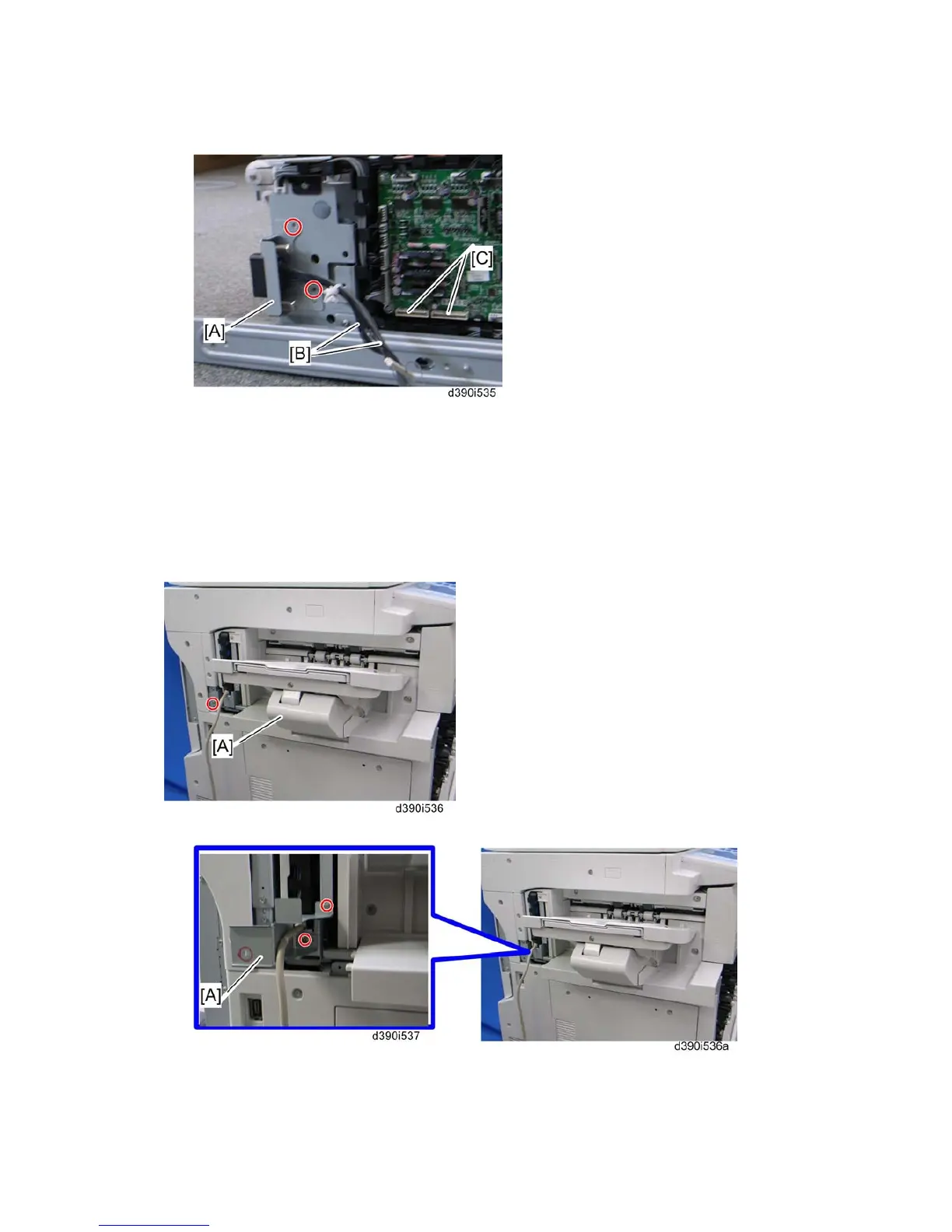

2. Attach the drawer connector [A] to the rear bracket of the finisher.
3. Connect the harnesses [B] to the connectors [C] on the main board.
 Black harness connector to CN16
 Gray harness connector to CN17
4. Reinstall the rear cover (removed in step 1) ( x 2).
Installing the Internal Finisher
1. Install the internal finisher [A] in the mainframe ( x 1).
2. Remove the bracket [A] ( x 2).
