Paper Feed
SM 4-103
D037/D038/D040/D041
Repla
cement
& Adjustment
4.12.4 PAPER
SIZE
SWITCH
1.
Paper tray 1 and 2 (
Section: Paper T
ray)

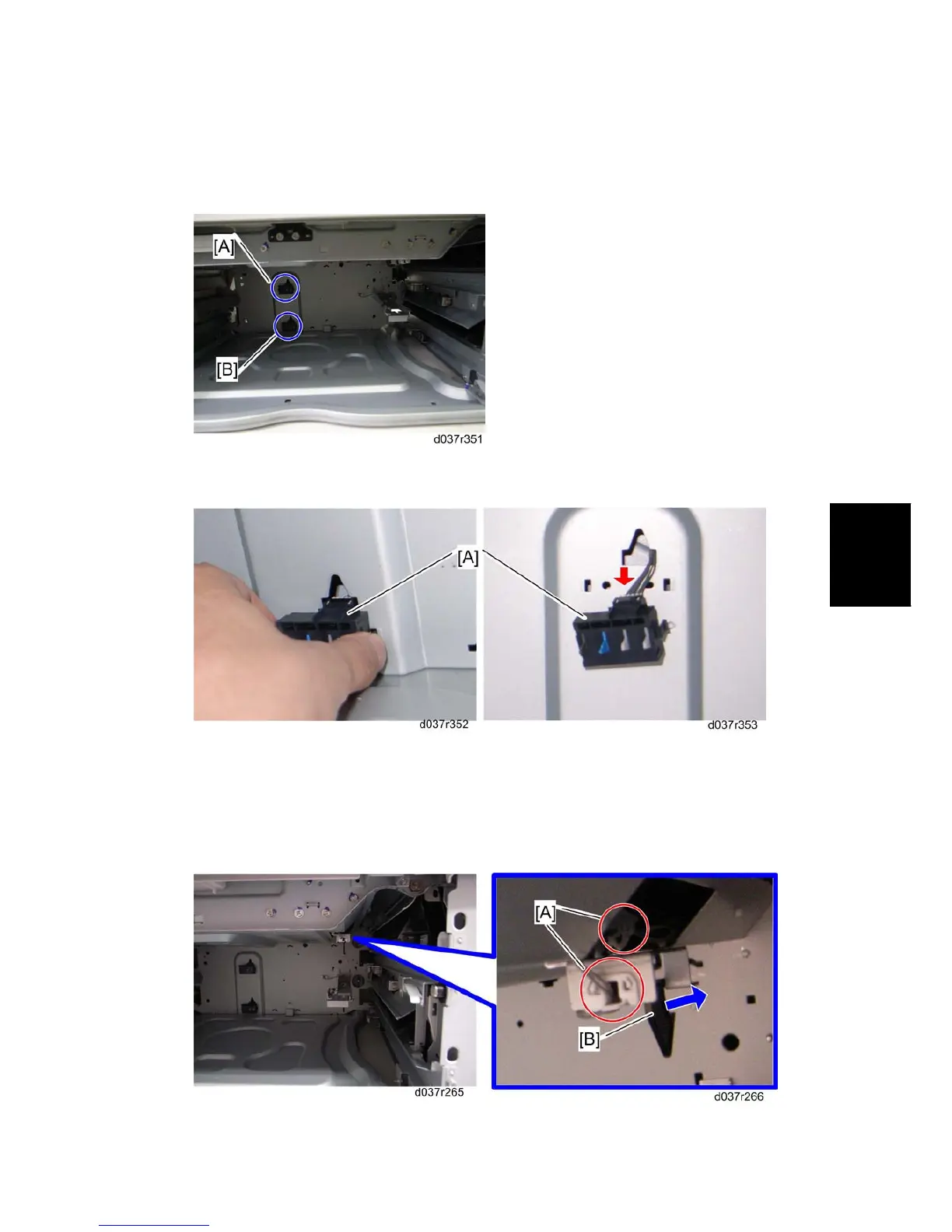

Paper size switch: T1 [A]
Paper size switch: T2 [B]
2.
Paper size switch [A] (hooks,
x 1)
4.12.5 PAPER
END
SENSOR
Paper End Sensor: T1
1.
Paper tray 1 and 2 (
Section: Paper T
ray)
272
274
